Flangeolet Fittings Manufacturer, Supplier & Exporter | ASME/ANSI B16.5, B16.47, B16.48, BS4504, BS 10, EN 1092

A Flangeoletis a specialized branch connection fitting designed to create a secure outlet from a larger pipeline while providing a flanged connection for the branch pipe. Combining the advantages of an olet fitting and a flange, Flangeolets offer a practical and efficient solution for branch piping applications. They are engineered to provide a strong, leak-resistant connection while reducing the need for additional fittings and complex fabrication work. This makes Flangeolets an ideal choice for industrial piping systems where reliability, ease of installation, and long-term performance are essential.

Flangeolet Fittings are widely used in industries such as oil & gas, petrochemical processing, chemical plants, power generation, refineries, water treatment facilities, and marine applications. Manufactured from premium-quality materials including Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, and other specialty alloys, these fittings offer excellent mechanical strength, corrosion resistance, and durability in high-pressure and high-temperature environments. Their robust construction ensures efficient fluid flow and dependable operation in demanding industrial conditions.

Arrow Piping Solutions is a trusted manufacturer, supplier, and exporter of high-quality Flangeolet Fittings manufactured according to international standards including ASME/ANSI B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, and EN 1092. We offer Flangeolets in a wide range of sizes, pressure classes, and material grades to meet the diverse requirements of industrial projects. With advanced manufacturing facilities, strict quality control procedures, competitive pricing, and timely delivery, Arrow Piping Solutions provides reliable and cost-effective piping solutions to customers worldwide.

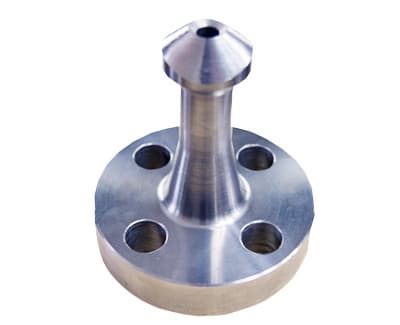

Flangeolet Flange

Flangeolet fitting, Pipe flangeolet, Flanged branch connection, Branch connection flange, Welded flangeolet, Forged flangeolet, Stainless steel, Carbon steel flangeolet, Alloy flangeolet, Flangeolet for oil and gas, MSS SP-44 Flangeolet, DIN86029 PN10 Flangeolet, Class 300, 600, 900, 1500 Flangeolet

ANSI B16.5 Flangeolet

SIZE RANGE

15mm (1/2" NPS ) up to 600mm ( 24" NPS ), For 2500# in sizes from NPS 1/2 to NPS 12

STANDARDS / DIMENSION

ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN

PRESSURE CLASS

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64.

FLANGE FACE TYPE

FF—Flat Face, RF—Raised Face, FM—Female Face, M—Male Face, T—Tongue Face, G—Groove Face, RJ—Ring Joint.

CARBON STEEL

ASTM A105/A105N (SA105N), LTCS A350 LF2, A694

DUPLEX & SUPER DUPLEX

ASTM A182 / ASME SA182 - S31803, S32205, 2205, S32750, S32760, S32950, 2507.

STAINLESS STEEL

ASTM A182 F304, 304L, 304H, 316, 316L, 316H, 317, 317L, 321, 321H, 310, 310S, 347, 904L, etc.

ALLOY STEEL

ASTM A182 / SA182 - F1 / F5 / F9 / F11 / F12 / F22 / F91

MTC

EN 10204 3.2 and EN 10204 3.1, Test Certificates certifying NACE MR0175, NACE MR0103

Flanges ANSI/ASME B16.5 & B16.47
worker

ISO CERTIFIED MANUFACTURER

Our worldwide presence ensures the timeliness, cost efficiency compliance adherence required to ensure your production timelines.

→ Free And Quick Quote

DOWNLOAD

Company Report 2019
PDF
Company Brochure
PDF

Materials

➜
Stainless Steel ➜ Carbon Steel ➜ Alloy Steel ➜
Flange Olet Diagram

FLANGEOLET BRANCH ½" - DIMENSIONS & wEIGHT

+
RATING NOMINAL PIPE SIZE FROM 1.1/2" TO 36"
Bore schedule B C D E Weight [kg]
Flange olet 150# STD 26,6 30 1,7
XS 24,3 28,8 108 14,3 1,7
160 20,7 20,7 2
XXS 15,2 15,2 2,2
Bore schedule B C D E Weight [kg]
300# STD 26,6 30 2,3
XS 24,3 28,8 124 17,6 2,5
160 20,7 20,7 2,6
XXS 15,2 15,2 2,8
Bore schedule B C D E Weight [kg]
Flange olet 600# STD 26,6 30 2,6
XS 24,3 28,8 124 17,6 2,7
160 20,7 20,7 2,8
XXS 15,2 15,2 3
Bore schedule B C D E Weight [kg]
900# STD 26,6 30 4,5
XS 24,3 28,8 149,4 28,5 4,6
160 20,7 20,7 4,7
XXS 15,2 15,2 4,8
Bore schedule B C D E Weight [kg]
Flange olet 1500# STD 26,6 30 4,5
XS 24,3 28,8 149,4 28,5 4,6
160 20,7 20,7 4,7
XXS 15,2 15,2 4,8
Bore schedule B C D E Weight [kg]
2500# STD 26,6 30 6,1
XS 24,3 28,8 158,8 35,1 6,2
160 20,7 20,7 6,2
XXS 15,2 15,2 6,3

FLANGEOLET BRANCH ¾" - DIMENSIONS & wEIGHT

+
RATING NOMINAL PIPE SIZE FROM 1" TO 36"
Bore schedule B C D E Weight [kg]
Flange olet 150# STD 21 23,8 1,2
XS 18,9 22,8 98,6 12,7 1,2
160 15,6 15,6 1,4
XXS 11,1 11,1 1,5
Bore schedule B C D E Weight [kg]
300# STD 21 23,8 1,7
XS 18,9 22,8 117,4 15,8 1,9
160 15,6 15,6 2
XXS 11,1 11,1 2,1
Bore schedule B C D E Weight [kg]
600# STD 21 23,8 2
XS 18,9 22,8 117,4 15,8 2,1
160 15,6 15,6 2,2
XXS 11,1 11,1 2,2
Bore schedule B C D E Weight [kg]
900# STD 21 23,8 3,1
XS 18,9 22,8 130 25,4 3,2
160 15,6 15,6 3,2
XXS 11,1 11,1 3,3
Bore schedule B C D E Weight [kg]
1500# Flange olet STD 21 23,8 3,1
XS 18,9 22,8 130 25,4 3,2
160 15,6 15,6 3,2
XXS 11,1 11,1 3,3
Bore schedule B C D E Weight [kg]
Flange olet 2500# STD 21 23,8 4,4
XS 18,9 22,8 139,7 31,8 4,5
160 15,6 15,6 4,5
XXS 11,1 11,1 4,6

FLANGEOLET BRANCH 1" - DIMENSIONS & wEIGHT

+
RATING NOMINAL PIPE SIZE FROM 1.1/2" TO 36"
Bore schedule B C D E Weight [kg]
Flange olet 150# STD 26,6 30 1,7
XS 24,3 28,8 108 14,3 1,7
160 20,7 20,7 2
XXS 15,2 15,2 2,2
Bore schedule B C D E Weight [kg]
300# STD 26,6 30 2,3
XS 24,3 28,8 124 17,6 2,5
160 20,7 20,7 2,6
XXS 15,2 15,2 2,8
Bore schedule B C D E Weight [kg]
Flange olet 600# STD 26,6 30 2,6
XS 24,3 28,8 124 17,6 2,7
160 20,7 20,7 2,8
XXS 15,2 15,2 3
Bore schedule B C D E Weight [kg]
900# STD 26,6 30 4,5
XS 24,3 28,8 149,4 28,5 4,6
160 20,7 20,7 4,7
XXS 15,2 15,2 4,8
Bore schedule B C D E Weight [kg]
Flange olet 1500# STD 26,6 30 4,5
XS 24,3 28,8 149,4 28,5 4,6
160 20,7 20,7 4,7
XXS 15,2 15,2 4,8
Bore schedule B C D E Weight [kg]
2500# STD 26,6 30 6,1
XS 24,3 28,8 158,8 35,1 6,2
160 20,7 20,7 6,2
XXS 15,2 15,2 6,3

FLANGEOLET BRANCH 1 ½" - DIMENSIONS & wEIGHT

+
RATING NOMINAL PIPE SIZE FROM 2" TO 36"
Bore schedule B C D E Weight [kg]
Flange olet 150# STD 40,9 44,6 3,1
XS 38,1 43,2 127 17,5 3,3
160 34 34 3,5
XXS 28 28 3,8
Bore schedule B C D E Weight [kg]
300# STD 40,9 44,6 4,1
XS 38,1 43,2 155,5 20,6 4,5
160 34 34 4,7
XXS 28 28 5
Bore schedule B C D E Weight [kg]
Flange olet 600# STD 40,9 44,6 4,9
XS 38,1 43,2 155,5 22,4 5
160 34 34 5,2
XXS 28 28 5,5
Bore schedule B C D E Weight [kg]
Flange olet 900# STD 40,9 44,6 7,2
XS 38,1 43,2 177,8 31,8 7,4
160 34 34 7,6
XXS 28 28 7,9
Bore schedule B C D E Weight [kg]
1500# STD 40,9 44,6 7,2
XS 38,1 43,2 177,8 31,8 7,4
160 34 34 7,6
XXS 28 28 7,9
Bore schedule B C D E Weight [kg]
Flange olet 2500# STD 40,9 44,6 12
XS 38,1 43,2 203,2 44,5 12
160 34 34 12,2
XXS 28 28 12,5

FLANGEOLET BRANCH 2" - DIMENSIONS & wEIGHT

+
RATING NOMINAL PIPE SIZE FROM 3" TO 36"
Bore schedule B C D E Weight [kg]
Flange Olet 150# STD 52,5 56,4 4,1
XS 49,2 54,8 152,4 19,1 4,8
160 42,8 42,8 5,1
XXS 38,2 38,2 5,5
Bore schedule B C D E Weight [kg]
300# STD 52,5 56,4 5,5
XS 49,2 54,8 165,1 22,4 5,8
160 42,8 42,8 6,1
XXS 38,2 38,2 6,5
Bore schedule B C D E Weight [kg]
600# STD 52,5 56,4 6,2
XS 49,2 54,8 165,1 25,4 6,5
160 42,8 42,8 7
XXS 38,2 38,2 7,2
Bore schedule B C D E Weight [kg]
Flange Olet 900# STD 52,5 56,4 13
XS 49,2 54,8 215,9 38,1 13,3
160 42,8 42,8 13,6
XXS 38,2 38,2 13,9
Bore schedule B C D E Weight [kg]
1500# STD 52,5 56,4 13
XS 49,2 54,8 215,9 38,1 13,3
160 42,8 42,8 13,6
XXS 38,2 38,2 13,9
Bore schedule B C D E Weight [kg]
2500# STD 52,5 56,4 18,4
XS 49,2 54,8 235 50,8 18,6
160 42,8 42,8 19
XXS 38,2 38,2 19,3

FLANGEOLET BRANCH 3" - DIMENSIONS & wEIGHT

+
RATING NOMINAL PIPE SIZE FROM 4" TO 36"
Bore schedule Length D E Weight [kg]
150# 10-STD 115 7,5
XS-80 115 191 23,9 7,5
160-XXS 145 8
Bore schedule Length D E Weight [kg]
Flange Olet 300# 10-STD 125 10
XS-80 125 210 28,5 10
160-XXS 150 11
Bore schedule Length D E Weight [kg]
600# 10-STD 135 13,5
XS-80 135 210 38,2 13,5
160-XXS 165 14,5
Bore schedule Length D E Weight [kg]
900# 10-STD 155 17
XS-80 155 241 44,5 17
160-XXS 180 18
Bore schedule Length D E Weight [kg]
Flange Olet 1500# 10-STD 170 25
XS-80 170 267 54,1 25
160-XXS 200 26
Bore schedule Length D E Weight [kg]
Flange Olet 2500# 10-STD 220 45,5
XS-80 220 305 72,9 45,5
160-XXS 250 51

FLANGEOLET BRANCH 4" - DIMENSIONS & wEIGHT

+
RATING NOMINAL PIPE SIZE FROM 5" TO 36"
Bore schedule Length D E Weight [kg]
Flange Olet 150# 10-STD 130 11,5
XS-80 130 229 23,9 11,5
160-XXS 160 13
Bore schedule Length D E Weight [kg]
300# 10-STD 140 16
XS-80 140 254 31,8 16
160-XXS 170 17
Bore schedule Length D E Weight [kg]
Flange Olet 600# 10-STD 160 24
XS-80 160 273 44,5 24
160-XXS 195 26
Bore schedule Length D E Weight [kg]
Flange Olet 900# 10-STD 170 28
XS-80 170 292 50,8 28
160-XXS 205 29,5
Bore schedule Length D E Weight [kg]
Flange Olet 1500# 10-STD 180 38
XS-80 180 311 60,2 38
160-XXS 215 40
Bore schedule Length D E Weight [kg]
2500# 10-STD 250 70,5
XS-80 250 356 82,4 70,5
160-XXS 281 72

FLANGEOLET BRANCH 6" - DIMENSIONS & wEIGHT

+
RATING NOMINAL PIPE SIZE FROM 8" TO 36"
Bore schedule Length D E Weight [kg]
Flange Olet 150# 10-STD 150 23,5
XS-80 170 279 25,4 25
160-XXS 195 27
Bore schedule Length D E Weight [kg]
Flange Olet 300# 10-STD 160 36,6
XS-80 175 318 36,6 37,5
160-XXS 205 39
Bore schedule Length D E Weight [kg]
600# 10-STD 185 49,5
XS-80 200 356 54,1 51
160-XXS 230 53,2
Bore schedule Length D E Weight [kg]
Flange Olet 900# 10-STD 210 62,5
XS-80 225 381 62 64,3
160-XXS 250 66
Bore schedule Length D E Weight [kg]
Flange Olet 1500# 10-STD 240 87,5
XS-80 255 394 88,9 89
160-XXS 285 91,2
Bore schedule Length D E Weight [kg]
Flange Olet 2500# 10-STD 340 186
XS-80 360 483 114,3 189
160-XXS 385 192,5

Flangeolet fitting Standards

Flangeolet fittings are designed to meet various industry standards to ensure durability, performance, and safety in piping systems. Here are some of the key standards for Flangeolet fittings.

1. ASME/ANSI Standards (American)

  • ASME B16.5– Pipe Flanges and Flanged Fittings (NPS 1/2" to 24").
  • ASME B16.47 – Large Diameter Steel Flanges (Series A & B, NPS 26" to 60").
  • ASME B16.36 – Orifice Flanges.
  • ASME B16.48 – Line Blanks (Spectacle, Spade, and Spacer Flanges).
  • ANSI B16.1 – Cast Iron Flanges and Flanged Fittings.
  • ANSI B16.42 – Ductile Iron Pipe Flanges and Flanged Fittings.

2. ISO Standards (International)

  • ISO 7005-1 – Steel Flanges for General Applications.
  • ISO 7005-2 – Cast Iron Flanges.
  • ISO 7005-3 – Copper Alloy Flanges.

3. EN Standards (European)

  • EN 1092-1 – Steel Flanges.
  • EN 1092-2 – Cast Iron Flanges.
  • EN 1092-3 – Copper Alloy Flanges.
  • EN 1092-4 – Aluminium Alloy Flanges.

4. DIN Standards (German)

  • DIN 2527 – Blind Flanges.
  • DIN 2576 – Slip-On Flanges (PN 10).
  • DIN 2633 – Weld Neck Flanges (PN 16).
  • DIN 2634 – Weld Neck Flanges (PN 25).
  • DIN 2635 – Weld Neck Flanges (PN 40).

5. JIS Standards (Japanese)

  • JIS B2220 – Steel Pipe Flanges.

6. GOST Standards (Russian)

  • GOST 12820 – Flat Flanges for Steel Pipe Joints.
  • GOST 12821 – Steel Welded Flanges for High-Pressure Applications.
  • GOST 33259 – Flange Connections for Industrial Equipment and Pipelines.

7. BS Standards (British)

  • BS 4504 – Circular Flanges for Pipes, Valves, and Fittings.
  • BS 10 – Specification for Flanges and Bolting.

8. API Standards (Oil & Gas)

  • API 6A – Wellhead and Christmas Tree Equipment Flanges.
  • API 605 – Large-Diameter Carbon Steel Flanges (merged into ASME B16.47 Series B).

9. AWWA Standards (Waterworks)

  • AWWA C207 – Steel Ring Flanges for Waterworks Service.

10. MSS Standards (Manufacturer's Standardization Society)

  • MSS SP-44 – Steel Pipe Flanges (merged into ASME B16.47 Series A).
  • MSS SP-51 – Flanges for Glass-Lined Equipment.

11. Material-Specific Standards (ASTM)

  • ASTM A105 – Carbon Steel Forged Flanges.
  • ASTM A182 – Alloy and Stainless Steel Forged Flanges.
  • ASTM A350 – Carbon and Low-Alloy Steel Flanges for Low-Temperature Service.
  • ASTM A694 – High-Strength Carbon and Alloy Steel Flanges for High-Pressure Applications.

12. Other Regional and Specialized Standards

  • KS B1511 – Korean Standard Flanges.
  • NF E29-206 – French Standard Flanges.
  • SANS 1123 – South African Standard for Steel Flanges.

Why Choose Arrow Piping Solutions For Industrial Flangeolet Fittings?

Arrow Piping Solutions is a trusted manufacturer and supplier of premium-quality Flangeolet Fittings designed to provide reliable branch connections for industrial piping systems. Our commitment to quality, precision engineering, and customer satisfaction enables us to deliver products that perform efficiently in demanding operating conditions across multiple industries.

Premium Quality Materials

We manufacture Flangeolet Fittings using superior-grade materials such as Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, and other specialty alloys. These materials ensure exceptional strength, corrosion resistance, and long service life in challenging industrial environments.

Comprehensive Size and Pressure Range

Our Flangeolet Fittings are available in a wide variety of sizes, pressure classes, and specifications, making them suitable for both low-pressure and high-pressure piping systems across diverse industrial applications.

Customized Manufacturing Solutions

Arrow Piping Solutions offers customized Flangeolet Fittings tailored to specific project requirements. We can manufacture products in custom dimensions, material grades, pressure ratings, and configurations to ensure optimal performance and compatibility.

Economical and Reliable Solutions

We provide cost-effective Flangeolet solutions without compromising on quality, helping customers achieve dependable piping performance while maintaining budget efficiency for their projects.

What Is the Difference Between a Flangeolet and a Standard Flange?

−

A standard flange is primarily used to connect two pipes, valves, or equipment sections.

A Flangeolet, however, is specifically designed to create a branch connection from a main pipeline while incorporating a flanged outlet, making it ideal for branch piping applications.

Where Are Flangeolets Commonly Used?

+

Flangeolet Fittings are widely used in industries such as oil & gas, petrochemical processing, power generation, refineries, chemical plants, marine applications, and water treatment facilities where strong and reliable branch connections are required.

Are Flangeolets Leak-Proof?

+

Yes, when properly installed and used with suitable gaskets and bolting systems, Flangeolet Fittings provide a secure and leak-resistant connection. Their robust design makes them highly reliable for high-pressure and high-temperature industrial applications.

AVAILABLE TYPES OF FLANGES

TONGUE AND GROOVE FLANGES

MALE AND FEMALE FLANGES

WELD NECK FLANGES

BLIND FLANGES

Orifice Flange

Socket Weld Flange / SWRF Flange
