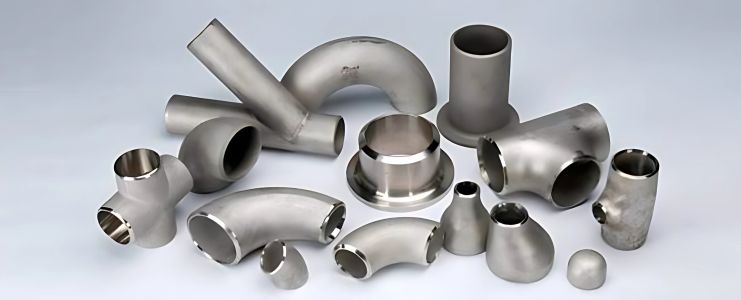

Stainless Steel 904L Forged Fittings
Arrow Piping Solutions is a trusted international manufacturer and supplier of Stainless Steel 904L Forged Fittings in India. Known for exceptional corrosion resistance and top-tier strength, these fittings are ideal for challenging environments including chemical processing, oil and gas, pharmaceuticals, and marine industries.
We offer a wide range of SS 904L forged fittings such as elbows, tees, unions, couplings, bushings, plugs, and caps. Manufactured as per ASTM A182 / ASME SA182 and other international standards, our fittings deliver high performance in elevated temperature and pressure conditions. Each product undergoes stringent quality inspection to ensure leak-proof performance and dimensional accuracy.
Stainless Steel 904L Forged Fittings Range:
- Stainless Steel 904L Plug
- Stainless Steel 904L High Pressure Forged Pipe Fittings
- 904L Stainless Steel Socketweld 45° Elbow
- SS 904L Hex Bushing
- ASTM A182 SS 904L Threaded Union
- SS 904L Forged Coupling
- SS 904L Screwed Half Coupling
- SS 904L Threaded Elbow
- SS 904L S/W Reducing Tee
- SS 904L 90° Socket Weld Cross
- SS 904L Threaded Cap
Specifications
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
We focus on offering the best quality products which meet all the demands and requirements of our esteem clients. There are numerous packaging options available to provide safe and damage-free delivery of the products. We provide all the required documents and certificates with the product. We mark these 904L Stainless Steel Forged Fittings as per the customer’s requirement. We offer the shipping method according to the location and demands of clients.
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
|---|---|---|---|---|---|---|---|---|---|
| SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19-23 | 4.00–5.00 | 23.00–28.00 | 1.00–2.00 |
Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|
| 7.95 g/cm³ | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Manufacturing Standards
| ASTM A182 – ASME SA182 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Low Pressure Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Screwed & Socket-welding Fittings for Petroleum Industry |
Applications of SS 904L Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission Industry
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
- Furniture Industry
Arrow Piping Solutions ensures safe packaging in wooden crates or cartons and provides complete quality documentation for every order. For bulk or custom requirements of Stainless Steel 904L Forged Fittings, reach out to us for the best prices and timely delivery.
