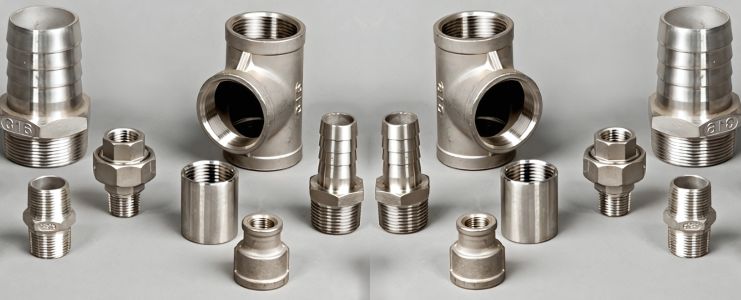

Stainless Steel 316 / 316L Forged Fittings
Arrow Piping Solutions fabricates and supplies a wide range of SS 316 / 316L Forged Fittings, one of the most reliable stainless steel grades available globally. These fittings contain molybdenum, offering superior resistance to pitting and crevice corrosion in chloride environments. We utilize high-grade raw materials and advanced technologies to manufacture durable, precision-engineered products.
We offer Stainless Steel 316 / 316L Forged Fittings with features like robust construction, high durability, excellent finish, and exceptional strength. These fittings are highly weldable and workable even under high temperatures. Arrow Piping Solutions ensures products are manufactured under strict quality controls and meet both national and international standards.
Stainless Steel 316 / 316L Forged Fittings Range:
- 316L Stainless Steel Socketweld 45° Elbow
- SS 316L Forged Coupling
- Stainless Steel 316 / 316L Plug
- SS 316 / 316L Hex Bushing
- Stainless Steel 316 High Pressure Forged Pipe Fittings
- ASTM A182 SS 316 Threaded Union
- SS 316 / 316L 90° Socket Weld Cross
- Stainless Steel 316 / 316L Threaded Elbow
- Stainless Steel 316 S/W Reducing Tee
- Stainless Steel 316 Screwed Half Coupling
- Stainless Steel 316 Threaded Cap
Specifications
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | - | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Arrow Piping Solutions ensures all products are delivered with necessary documentation and test certificates. These forged fittings are manufactured as per client-specific standards and are safely packed to prevent any damage during transit.
Chemical Composition of Stainless Steel 316 / 316L Forged Fittings
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 11.00 - 14.00 | 67.845 min |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 | 68.89 min |
Mechanical Properties of Stainless Steel 316 / 316L Forged Fittings
| Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm³ | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Manufacturing Standards
| ASTM A182 – ASME SA182 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
Applications of SS 316 / 316L Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission Industry
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
- Furniture Industry
Arrow Piping Solutions guarantees consistent quality, fast delivery, and competitive pricing for Stainless Steel 316 / 316L Forged Fittings. Reach out to us today for custom solutions, large-scale orders, and specialized fittings designed to exceed your industrial expectations.
