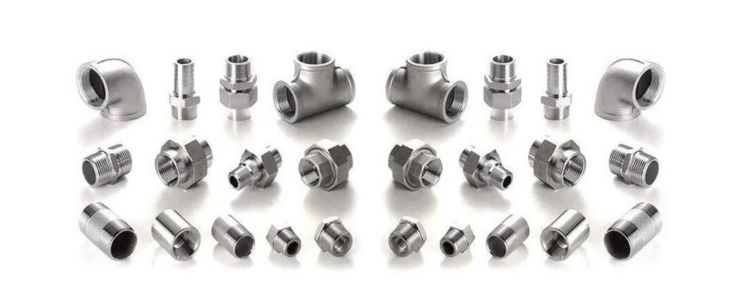

Stainless Steel 317L Forged Fittings
Arrow Piping Solutions is a reputed manufacturer and supplier of Stainless Steel 317L Forged Fittings, ideal for elevated temperature and corrosive environments. SS 317L is a low carbon austenitic stainless steel alloy with molybdenum, chromium, and nickel that delivers excellent corrosion resistance, high tensile strength, and superior creep strength.
We provide SS 317L Forged Fittings globally, customized to meet varied standards, dimensions, and specifications. With advanced machinery and precise forging, we ensure products with dimensional accuracy, excellent surface finish, and longevity. These fittings undergo rigorous heat treatment and are tested for quality and reliability.
Stainless Steel 317L Forged Fittings Range:
- SS 317L Forged Coupling
- SS 317L Hex Bushing
- Stainless Steel 317L Plug
- Stainless Steel 317L High Pressure Forged Pipe Fittings
- ASTM A182 SS 317L Threaded Union
- 317L Stainless Steel Socketweld 45° Elbow
- SS 317L 90° Socket Weld Cross
- Stainless Steel 317L Threaded Elbow
- Stainless Steel 317L Screwed Half Coupling
- Stainless Steel 317L S/W Reducing Tee
- Stainless Steel 317L Threaded Cap
Specifications
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
|---|---|---|---|---|
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
Arrow Piping Solutions ensures secure packaging using boxes, wooden cartons, and pallets for safe and timely delivery of all SS 317L Forged Fittings.
Chemical Composition of Stainless Steel 317L Forged Fittings
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
|---|---|---|---|---|---|---|---|---|---|
| SS 317L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | 3.00–4.00 | 11.00–15.00 | 57.89 min |
Mechanical Properties of Stainless Steel 317L Forged Fittings
| Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|
| 7.9 g/cm³ | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35% |
Manufacturing Standards
| ASTM A182 – ASME SA182 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
Applications of SS 317L Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission Industry
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
- Furniture Industry
Arrow Piping Solutions guarantees high-quality SS 317L Forged Fittings with competitive pricing, timely delivery, and full technical support. Reach out to us for bulk requirements, custom sizes, or application-specific guidance.
