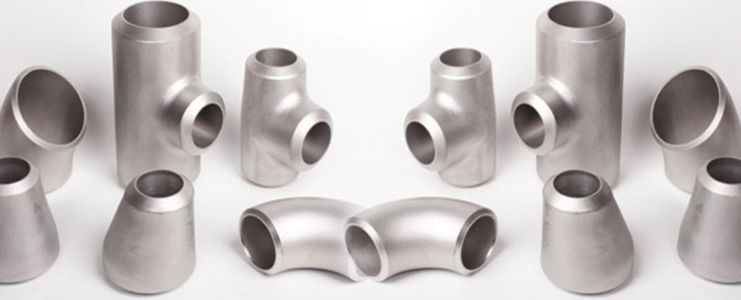

Stainless Steel 316Ti Forged Fittings
Arrow Piping Solutions is a trusted manufacturer and supplier of SS 316Ti Forged Fittings, designed for superior performance in high-temperature and corrosive environments. SS 316Ti is a titanium-stabilized austenitic stainless steel known for its high corrosion resistance, durability, and mechanical strength.
We produce these fittings using premium raw materials and state-of-the-art machinery to ensure long service life, excellent weldability, and precision. These products meet both national and international quality standards and are available in various dimensions, sizes, and specifications.
Stainless Steel 316Ti Forged Fittings Range:
- SS 316Ti Forged Coupling
- SS 316Ti Hex Bushing
- Stainless Steel 316Ti Plug
- Stainless Steel 316Ti High Pressure Forged Pipe Fittings
- ASTM A182 SS 316Ti Threaded Union
- 316Ti Stainless Steel Socketweld 45° Elbow
- SS 316Ti 90° Socket Weld Cross
- Stainless Steel 316Ti Threaded Elbow
- Stainless Steel 316Ti Screwed Half Coupling
- Stainless Steel 316Ti S/W Reducing Tee
- Stainless Steel 316Ti Threaded Cap
Specifications
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Arrow Piping Solutions supplies all products with relevant test certificates and documentation, ensuring safe and damage-free packaging and delivery.
Chemical Composition of Stainless Steel 316Ti Forged Fittings
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
|---|---|---|---|---|---|---|---|---|---|
| SS 316Ti | 0.020 max | 2.0 max | 1.0 max | 0.040 max | 0.030 max | 19.00 - 23.00 | 4.00 - 5.00 | 23.00 - 28.00 | 1.00 - 2.00 |
Mechanical Properties of Stainless Steel 316Ti Forged Fittings
| Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|
| 7.95 g/cm³ | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35% |
Manufacturing Standards
| ASTM A182 – ASME SA182 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
Applications of SS 316Ti Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission Industry
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
- Furniture Industry
Arrow Piping Solutions ensures timely delivery, competitive pricing, and unmatched quality in every Stainless Steel 316Ti Forged Fitting. Connect with us today for bulk orders, custom sizes, and technical support tailored to your project.
