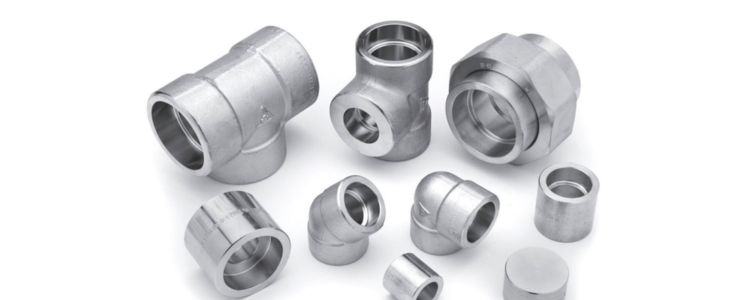

Stainless Steel 304H Forged Fittings
Arrow Piping Solutions is a trusted manufacturer, exporter, and supplier of Stainless Steel 304H Forged Fittings in India. Known for high carbon content, superior heat resistance, and strength, SS 304H is ideal for high-temperature and high-pressure applications. Our product range includes Elbows, Couplings, Hex Bushings, Threaded Unions, Plugs, and more.
304H is an austenitic chromium-nickel stainless steel with enhanced mechanical properties. At Arrow Piping Solutions, we use high-quality raw materials and precision engineering to develop SS 304H Forged Fittings that meet global standards and perform excellently under corrosive and elevated temperature environments.
Stainless Steel 304H Forged Fittings Range:
- 304H Stainless Steel Socketweld 45° Elbow
- SS 304H Forged Coupling
- ASTM A182 SS 304H Threaded Union
- SS 304H Hex Bushing
- Stainless Steel 304H Plug
- SS 304H 90° Socket Weld Cross
- Stainless Steel 304H Screwed Half Coupling
- Stainless Steel 304H Threaded Elbow
- Stainless Steel 304H S/W Reducing Tee
- Stainless Steel 304H Threaded Cap
- High Pressure Forged Pipe Fittings
Specifications
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| SS 304H | 1.4301 | S30409 |
Arrow Piping Solutions provides SS 304H Forged Fittings that can be customized as per client specifications and industrial needs. These fittings are shipped with complete quality documents and are available in different packaging options for secure and damage-free delivery.
Chemical Composition of Stainless Steel 304H Forged Fittings
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| SS 304H | 0.10 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | - | 8 – 10.5 | - |
Mechanical Properties of Stainless Steel 304H Forged Fittings
| Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm³ | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Manufacturing Standards
| ASTM A182 – ASME SA182 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
Applications of SS 304H Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission Industry
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
- Furniture Industry
Arrow Piping Solutions guarantees superior quality, timely delivery, and competitive pricing for all Stainless Steel 304H Forged Fittings. Contact us for custom solutions, bulk orders, and project inquiries—we are here to serve your industrial needs with precision and excellence.
