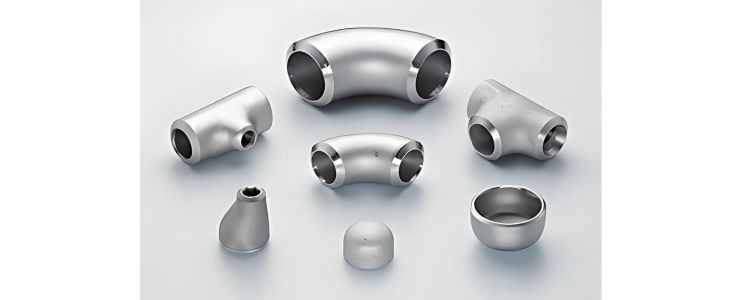

Stainless Steel 304 Forged Fittings
Arrow Piping Solutions is a prominent manufacturer, stockist, and supplier of top-quality Stainless Steel 304 Forged Fittings in India. These fittings are known for their robust construction, excellent corrosion resistance, and ease of fabrication. Our range includes Elbows, Couplings, Hex Bushings, Threaded Unions, Plugs, and various other forged fittings designed for diverse industrial applications.
SS 304 is one of the most widely used stainless steel grades, featuring a combination of nickel and chromium, which offers outstanding mechanical and physical properties. At Arrow Piping Solutions, we ensure precision manufacturing using high-grade raw materials and cutting-edge machinery to meet international quality standards.
Stainless Steel 304 Forged Fittings Range:
- 304 Stainless Steel Socketweld 45° Elbow
- SS 304 Forged Coupling
- ASTM A182 SS 304 Threaded Union
- SS 304 Hex Bushing
- Stainless Steel 304 Plug
- SS 304 90° Socket Weld Cross
- Stainless Steel 304 Screwed Half Coupling
- Stainless Steel 304 Threaded Elbow
- Stainless Steel 304 S/W Reducing Tee
- Stainless Steel 304 Threaded Cap
- High Pressure Forged Pipe Fittings
Specifications
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
Stainless Steel 304 Forged Fittings by Arrow Piping Solutions are available in custom sizes and specifications. They are suitable for both high and low-pressure applications and are supplied with complete documentation including invoices and packing lists. Our efficient logistics system ensures timely and secure delivery across India and worldwide.
Chemical Composition of Stainless Steel 304 Forged Fittings
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | - | 8 – 11 | - |
Mechanical Properties of Stainless Steel 304 Forged Fittings
| Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm³ | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Manufacturing Standards
| ASTM A182 – ASME SA182 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
Applications of SS 304 Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission Industry
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
- Furniture Industry
Arrow Piping Solutions ensures that every SS 304 Forged Fitting delivered meets the highest standards in quality and performance. We follow strict inspection protocols and offer safe packaging using wooden crates, cartons, or pallets. Reach out to us for bulk orders or custom specifications—we are here to support your project requirements with efficiency and excellence.
