Threaded pipe plug

ANSI / ASME B16.11 Threaded Full Coupling

Hexagon Plug suppliers , ANSI B16.11 Brass Threaded Plug manufacturer in India

ASME B16.11 Threaded pipe plug Manufacturers in India

Brass threaded Hex Plug

Hexagon plug npt Suppliers in Mumbai

Manufacturer of NPT, ISO/BSP, SAE threads NPT Threaded pipe plug, Threaded hex head plug stockist in Mumbai, India, ASME B16.11 NPT SS Plug Price in India.

Table of Content

What is ASME B16.11 Threaded pipe plug ?

ASME B16.11 45 Degree Threaded Elbow

NPT Threaded Plug Dimensions

45 Degree Threaded Elbow Dimensions

Dimensions of Threaded Plug (BS 3799) In mm

Nominal Pipe Size Length
A		 Plugs Square Head Plugs Round Head Hex Plugs & Bushings
Height of Square
B		 Width Flats
C		 Nominal Diameter of Head
E		 Length
D		 Width Flats
F		 Hex Height (Min.)
Bushing G Plug H
1/8" 9.7 6.6 7.1 10.4 35.1 11.2 - 6.4
1/4" 11.2 6.6 9.7 13.5 41.1 15.7 3.0 6.4
3/8" 12.7 7.9 11.2 17.5 41.1 17.5 4.1 7.9
1/2" 14.2 9.7 14.2 21.3 44.5 22.4 4.8 7.9
3/4" 15.7 11.2 15.7 26.9 44.5 26.9 5.6 9.7
1" 19.1 12.7 20.6 33.3 50.8 35.1 6.4 9.7
1-1/4" 20.6 14.2 23.9 42.9 50.8 44.5 7.1 14.2
1-1/2" 20.6 15.7 28.4 48.5 50.8 50.8 7.9 15.7
2" 22.4 17.5 33.3 60.5 63.5 63.5 8.6 17.5
2-1/2" 26.9 19.1 38.1 73.2 69.9 76.2 9.7 19.1
3" 28.4 20.6 42.9 88.9 69.9 88.9 10.4 20.6
4" 31.8 25.4 53.5 114.3 76.2 117.3 12.7 25.4

ANSI B16.11 Forged Threaded Plug Specification

ASME B16.11 Threaded Plug Dimensions ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Threaded Insert Plug Size 1/8" NB TO 4" NB
ASTM A182 SS Threaded Hex Plugs Class 3000 LBS, 6000 LBS, 9000 LBS
ANSI B16.11 Forged Threaded Hex Head Plug Type Socket Weld (S/W) & Screwed (SCRD) – NPT, BSP, BSPT
ASME B16.11 Forged Threaded Pipe Plug Form Threaded Hex Plug, Forged Threaded Hexagon Plug
Threaded Fittings Hex Plug Value Added Services Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
ASME B16.11 Screwed Hex Plug Production Grades Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low Temperature Steel, Carbon Steel, Cupro Nickel
Threaded Hexagon Plug Pressure Ratings Up to 20,000 psig (1,378 bar)
Threaded Hex Plug Temperature Ratings Up to 1000° F (537° C)
Types of ASTM A182 SS Threaded Hex Plugs NPT, ISO/BSP, SAE threads
Sizes Available 1/16 to 1 in.
Main Types Pipe nipples, adapter and gaskets, reducing bushing and reducers, couplings, elbows, tees, crosses, union ball joints, caps, and plugs

Forged Threaded Hex Plug Standards

ASME B16.11 Threaded Plug ASME 16.11, MSS SP-79, MSS SP-95, MSS SP-83, MSS SP-97, BS 3799
DIN DIN 2605, DIN 2615, DIN 2616, DIN 2617, DIN 28011
EN EN 10253-1, EN 10253-2

ASME B16.11 Threaded Full Coupling Types

Class 3000 Threaded Brass Elbow

Class 3000 Elbow, Threaded Plug

Class 6000 NPT Threaded Elbow

Class 6000 Elbow, Threaded Plug

Class 9000 MS Threaded Elbow

Class 9000 Elbow, Threaded Plug

B16.11 NPT 45 Degree Street Elbow

B16.11 threaded hex head plug

ASTM A105 45 Degree Threaded Elbow

ASTM A105 Threaded Plug

A182 45 Degree Threaded Elbow

A182 Threaded Pipe Plugs

ASTM A350 45 Degree Threaded Elbow

ASTM A350 Screwed Hex Plugs

A182 Gr F304 Forged 45 Degree Threaded Elbow

A182 Gr F304 Forged Screwed Hex Plugs

ASME B16.11 Forged Threaded Pipe Plug Material

Carbon Steel Threaded Forged Hex Plug
  • ASTM A105
  • ASME SA105
  • DIN 1.0402
  • DIN 1.0460
  • DIN 1.0619
  • ASTM A105N
  • ASME SA105N
  • ASTM A350 LF2
  • ASME SA350
  • High Yield CS ASTM A694
Stainless Steel Threaded Hex Plug
  • ASTM A182 F304
  • ASTM A182 F304L
  • ASTM A182 F316L
  • ASTM A182 F317
  • ASTM A182 F317L
  • ASTM A182 F321
  • ASTM A182 F321H
  • ASTM A182 F347
  • ASTM A182 F347H
Alloy Steel Forged Screwed Hex Plug
  • ASTM A182 F5
  • ASTM A182 F9
  • ASTM A182 F11
  • ASTM A182 F22
  • ASTM A182 F91
Titanium Forged Threaded Fittings Hex Plug
  • ASTM B381 Titanium Gr. 1
  • ASTM B381 Titanium Gr. 2
  • ASTM B381 Titanium Gr. 4
  • ASTM B381 Titanium Gr. 5
  • ASTM B381 Titanium Gr. 7
Inconel Forged Threaded Plug Inconel 600, Inconel 601, Inconel 625, Inconel 718, Inconel X750
Copper Threaded Plug T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc.
Copper Nickel Threaded Fittings Hex Plug Copper Nickel 90/10 (C70600) Pipe Plug, Cupro Nickel 70/30 (C71500) Pipe Plug, UNS C71640 Pipe Plug
Brass Forged Hex Plug 3602 / 2604 / H59 / H62 / etc.
Hastelloy Forged Threaded Hex Plug Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X
Monel Forged Hex Plug Monel 400 (UNS N04400), Monel 500 (UNS N05500)
Alloy 20 Threaded Forged Pipe Plug Carpenter® 20 Alloy Hex Head Plugs, Alloy 20Cb-3 Hex Head Plugs
Aluminium Threaded Forged Pipe Plug 5052 / 6061 / 6063 / 2017 / 7075 / etc.
Nickel Forged Screwed Pipe Plug Nickel 200 Hex Head Plugs, Nickel 201 Hex Head Plugs
Duplex Forged Screwed Pipe Plug S31803 / S32205 ASTM A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Threaded Head Plugs S32750 / S32760 ASTM A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Forged Screwed Pipe Plug Incoloy 800 Hex Plugs, Incoloy 800H Hex Plugs, Incoloy 800HT (UNS N08800) Hex Plugs, Incoloy 825 (UNS N08825) Hex Plugs
254 SMO Threaded Forged Pipe Plug SMO 254/6Mo Hex Plug, UNS S31254 Hex Plug, DIN 1.4547 Hex Plug
Nimonic Forged Screwed Pipe Plug 3000LB Threaded Nimonic 75 Hex Plug, Nimonic 80A Hex Plug, Nimonic 90 Hex Plug
Other ASME B16.11 Threaded Plug Material Tin Bronze Hex Plug, Aluminum Bronze Hex Plug, Lead Bronze Hex Plug

ASTM A182 SS Threaded Hex Plugs Price List

Hex Head Threaded Plugs Price Per Piece in India ASME B16.11 Threaded Pipe Plug Price in INR Threaded Union Plug Price in Saudi Riyal Threaded Insert Plugs Price in UAE Dirham
PLUG: 1/2 NPS, HEXAGONAL PLUG, ASTM A105, NPT (M) THRD (ASME B1.20.1), CL.3000#, GALV TO A153, ASME B16.11 Rs. 1079.97 Saudi Riyal 56.27 UAE Dirham 55.10
PLUG: 1 NPS, HEXAGONAL PLUG, ASTM A105, NPT (M) THRD (ASME B1.20.1), CL.3000#, GALV. TO A153, ASME B16.11 Rs. 575.98 Saudi Riyal 30.01 UAE Dirham 29.39
PLUG: 3/4 NPS, HEXAGONAL PLUG, ASTM A105N, NPT (M) THRD (ASME B1.20.1), CL.3000#, NACE MR-0175 / ISO 15156, ASME B16.11 Rs. 712.78 Saudi Riyal 37.14 UAE Dirham 36.37

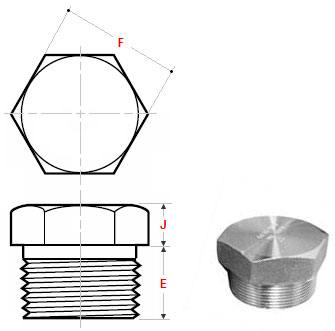

Threaded Fittings Hex Plug Sizes

Threaded Fittings Hex Plug Sizes
NPS Minimum Length
E		 Minimum Hex Height
J		 Nominal
F
1/2 14 8 22
3/4 16 10 27
1 19 10 35
1.1/4 21 14 44.5
1.1/2 21 16 51
2 22 18 63.5
2.1/2 27 19 76
3 28 21 89
4 32 25 117.5

Stockholder of Stainless Steel Threaded Insert Plug, Brass Screwed Hex Plug, Copper Threaded Plug wholesaler in Mumbai, ASTM A182 SS Threaded Hex Plugs suppliers in India, Copper Threaded Fittings Hex Plug / ASME B16.11 Threaded Plug manufacturers.

Manufacturing threaded hex plug in India, Arrow Piping holds a wide range of threaded end plug in all thicknesses, stock for immediate despatch throughout India and globally.
