Threaded Reducing Tee

ANSI / ASME B16.11 Threaded Reducing Tee

Carbon Steel Forged Reducing Tee manufacturer in India, ANSI B16.11 Stainless Steel Screwed Reducing Tee suppliers

Stainless steel reducing tee npt Dimensions

ASME B16.11 Threaded Reducing Tee Manufacturers in India

Reducing Tee Threaded Class 3000 Suppliers in Mumbai

ASME B16.11 Copper Threaded Pipe Reducing Tee stockist in Mumbai, India, Manufacturer of NPT, ISO/BSP, SAE threads Threaded Reducing Tee, Brass 3000 Threaded Reducing Tee Price in India.

Table of Content

What is ASME B16.11 Threaded Reducing Tee ?

ASME B16.11 45 Degree Threaded Elbow

Carbon Steel Threaded Reducing Tee Dimensions

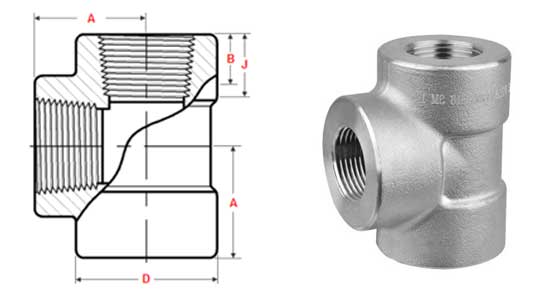

Threaded Reducing Tee Drawing

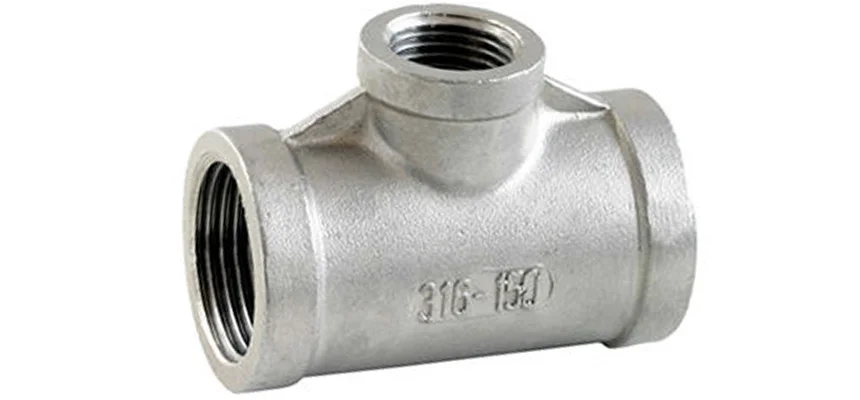

Threaded Reducing Tee Product

Threaded Equal Reducing Tee Class 2000 Dimensions

NPS Min Length of Thread Outside Dia of Band
D		 Center to End
A		 Min
WT
B J
1/2 10.9 13.6 33 28 3.18
3/4 12.7 13.9 38 33 3.18
1 14.7 17.3 46 38 3.68
1.1/4 17 18 56 44 3.89
1.1/2 17.8 18.4 62 51 4.01
2 19 19.2 75 60 4.27
2.1/2 23.6 28.9 92 76 5.61
3 25.9 30.5 109 86 5.99
4 27.7 33 146 106 6.55

3000 Threaded Reducing Tee Dimensions and 3000# Threaded Reducing Tee

NPS Min Length of Thread Outside Dia of Band
D		 Center to End
A		 Min
WT
B J
1/2 10.9 13.6 38 33 4.09
3/4 12.7 13.9 46 38 4.32
1 14.7 17.3 56 44 4.98
1.1/4 17 18 62 51 5.28
1.1/2 17.8 18.4 75 60 5.56
2 19 19.2 84 64 7.14
2.1/2 23.6 28.9 102 83 7.65
3 25.9 30.5 121 95 8.84
4 27.7 33 152 114 11.18

Threaded Reducing Tee Class 6000 Dimensions

NPS Min Length of Thread Outside Dia of Band
D		 Center to End
A		 Min
WT
B J
1/2 10.9 13.6 46 38 8.15
3/4 12.7 13.9 56 44 8.53
1 14.7 17.3 62 51 9.93
1.1/4 17 18 75 60 10.59
1.1/2 17.8 18.4 84 64 11.07
2 19 19.2 102 83 12.09
2.1/2 23.6 28.9 121 95 15.29
3 25.9 30.5 146 106 16.64
4 27.7 33 152 114 18.67

General Notes:

• Dimensions are in millimeters unless otherwise indicated.

• Dimension B is minimum length of perfect thread.

• The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than J.

Npt Reducing Tee Specification

Reducing Threaded Tee Dimensions ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Threaded pipe reducing tee Size 1/8" NB TO 4" NB
NPT reducing tee Class 33000 LBS, 6000 LBS, 4500 LBS
Forged Threaded Reducing Tee Type Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Threaded pipe reducing tee Form Threaded Reducing Tee, Forged Threaded Reducing Tee
Threaded pipe reducing tee Pressure Ratings Up to 20,000 psig (1,378 bar)
3000 threaded reducing tee Temperature Ratings Up to 1000° F (537° C)
Types of carbon steel threaded reducing tee NPT, ISO/BSP, SAE threads
Sizes available 1/16 to 1 in.
Reducing Threaded Tee Main Types Pipe nipples, adapter and gaskets, reducing bushing and reducers, couplings, elbows, tees, crosses, union ball joints, caps, and plugs
Carbon steel threaded reducing tee Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Stainless steel threaded reducing tee Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Stainless Steel Reducing Tee Npt Standards

ASME B16.11 Threaded Reducing Tee Fitting: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2

Stainless Steel Reducing Tee Npt Standards

ASME B16.11 Threaded Reducing Tee Fitting: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2

45 Degree NPT Elbow Types

Class 3000 Threaded Brass Elbow

Class 3000 Elbow, Threaded Brass Elbow

Class 6000 NPT Threaded Elbow

Class 6000 Elbow, NPT Threaded Elbow

Class 9000 MS Threaded Elbow

Class 9000 Elbow, MS Threaded Elbow

B16.11 NPT 45 Degree Street Elbow

B16.11 NPT 45 Degree Street Elbow Brass

ASTM A105 45 Degree Threaded Elbow

ASTM A105 45 Degree Threaded Elbow

A182 45 Degree Threaded Elbow

A182 45 Degree Threaded Elbow

ASTM A350 45 Degree Threaded Elbow

ASTM A350 45 Degree Threaded Elbow

A182 Gr F304 Forged 45 Degree Threaded Elbow

A182 Gr F304 Forged 45 Degree Threaded Elbow

Forged Threaded Reducing Tee Material

Carbon Steel Threaded Reducing Tee
  • ASTM A105 Reducing Threaded Tee
  • ASME SA105
  • DIN 1.0402
  • DIN 1.0460
  • DIN 1.0619
  • ASTM A105N
  • ASME SA105N
  • ASTM A350 LF2
  • ASME SA350
  • High Yield CS ASTM A694
Stainless Steel Threaded Reducing Tee
  • ASTM A182 F304 Reducing Threaded Tee
  • ASTM A182 F304L
  • ASTM A182 F316L
  • ASTM A182 F317
  • ASTM A182 F317L
  • ASTM A182 F321
  • ASTM A182 F321H
  • ASTM A182 F347
  • ASTM A182 F347H
Alloy Steel Forged NPT Reducing Tee
  • ASTM A182 F5 Reducing Threaded Tee
  • ASTM A182 F9
  • ASTM A182 F11
  • ASTM A182 F22
  • ASTM A182 F91
Titanium Forged Threaded Reducing Tee
  • ASTM B381 Titanium Gr. 1 Reducing Threaded Tee
  • ASTM B381 Titanium Gr. 2
  • ASTM B381 Titanium Gr. 4
  • ASTM B381 Titanium Gr. 5
  • ASTM B381 Titanium Gr. 7
Inconel Forged Threaded Pipe Reducing Tee
  • Inconel 600 Reducing Threaded Tee
  • Inconel 601
  • Inconel 625
  • Inconel 718
  • Inconel X750
Copper Threaded Pipe Reducing Tee T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc.
Copper Nickel Forged Threaded Reducing Tee Copper Nickel 90/10 (C70600) Reducing Threaded Tee, Cupro Nickel 70/30 (C71500) Reducing Tees, UNS C71640 Reducing Tees
Brass Forged Threaded Reducing Tee 3602 / 2604 / H59 / H62 / etc.
Hastelloy Forged Threaded Reducing Tee Hastelloy C276 (UNS N10276) Reducing Tees, C22 (UNS N06022) Reducing Tees, C4 Reducing Tees, C2000 Reducing Tees, B2 Reducing Tees, B3 Reducing Tees, X Reducing Tees
Monel Forged Threaded Reducing Tee Monel 400 (UNS No. N04400) Reducing Tees, Monel 500 (UNS No. N05500) Reducing Tees
Alloy 20 Forged Threaded Reducing Tee Carpenter® 20 Alloy Reducing Threaded Tee, Alloy 20Cb-3 Reducing Tees
Aluminium NPT Reducing Tee 5052 / 6061 / 6063 / 2017 / 7075 / etc.
Nickel NPT Reducing Tee Nickel 200 Reducing Tees, Nickel 201 Reducing Tees
Duplex Threaded Reducing Tee S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Threaded Reducing Tee S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Threaded Reducing Tee Incoloy 800 Reducing Tees, Incoloy 800H Reducing Threaded Tee, Incoloy 800HT (UNS N08800) Reducing Tees, Incoloy 825 (UNS N08825) Reducing Tees
254 SMO Forged Threaded Reducing Tee SMO 254/6Mo Reducing Tees, UNS S31254 Reducing Threaded Tee, DIN 1.4547 Reducing Tees
Nimonic Forged Threaded Reducing Tee Nimonic 75 Reducing Tees, Nimonic 80A Reducing Tees, Nimonic 90 Reducing Tees
Other ASME B16.11 Threaded Reducing Tee Material Tin Bronze Reducing Tees, Aluminum Bronze Reducing Threaded Tee, Lead Bronze Reducing Tees

Threaded Pipe Reducing Tee Price List

ASME B16.11 Threaded Reducing Tee Price Per Piece in India 3000# Threaded Reducing Tee Price in INR Stainless Steel Reducing Threaded Tee Price in Saudi Riyal Carbon Steel Threaded Reducing Tee Price in UAE Dirham
RED. STRAIGHT TEE: 3/4 x 1/2 NPS, ASTM A234-WPB, NPT (F) THRD (ASME B1.20.1), SCH 160 X160, BE, NACE MR-0175/ISO 15156, ASME B16.9 Rs. 708.88 Saudi Riyal 37.11 UAE Dirham 36.35
RED. STRAIGHT TEE: 2 X 1 NPS, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL.3000#, GALV. TO A153, ASME B16.11 Rs. 859.25 Saudi Riyal 44.98 UAE Dirham 44.05
RED. STRAIGHT TEE: 3/4 X 1/2 NPS, ASTM A105N, NPT (F) THRD (ASME B1.20.1), CL.6000#, NACE MR-0175/ISO 15156, ASME B16.11 Rs. 486.91 Saudi Riyal 25.49 UAE Dirham 24.96
RED. STRAIGHT TEE: 1 X 1/2 NPS, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL.3000#, GALV. TO A153, ASME B16.11 Rs. 572.83 Saudi Riyal 29.99 UAE Dirham 29.37

Threaded Unequal Tee Weight Chart

Class 2000 Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3
B – 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/16 4 5/16
F – 3/4 3/4 1 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 2 1/16 2 1/2
Wt – 0.188 0.236 0.435 0.740 1.058 1.375 1.740 2.883 7.750 11.000
Class 3000 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3
B 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/8
F 3/4 3/4 1 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 1 3/4 2 1/16 2 1/2
Wt 0.250 0.290 0.500 0.750 1.188 1.988 2.235 3.000 4.930 7.375 13.000
Class 6000 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3
B 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 5 3/8
F 3/4 1 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 1 3/4 2 1/16 2 1/2 3 1/8
Wt 0.250 0.640 0.500 1.438 2.188 2.785 4.688 5.750 9.500 15.000 30.000

ASTM A182 SS Threaded Unequal Tees, Alloy Steel Forged Screwed Unequal Tee stockholder, Hastelloy C22 Forged Pipe Tee suppliers in India. Forged Threaded Reducing Tee manufacturers. Nickel Alloy Threaded Unequal Tee wholesaler in Mumbai.

Manufacturing Stainless Steel Reducing Threaded Tee in India, Arrow Piping Solution holds a wide range of threaded pipe reducing tee in all Thickness, stock for immediate despatch throughout India & globally.
