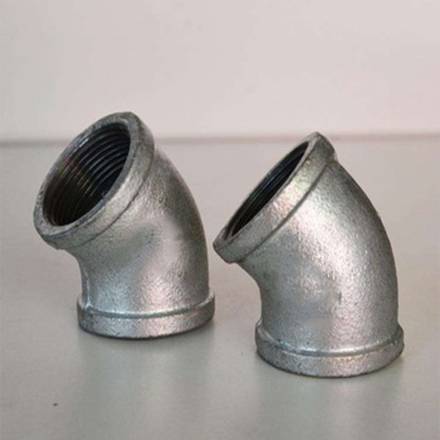

45 Degree Threaded Elbow

ANSI / ASME B16.11 45 Degree Threaded Elbow

Class 3000 Stainless Steel 45 Deg NPT Elbow manufacturer in India, NPT, ISO/BSP, SAE threads ANSI B16.11 Screwed Elbow suppliers.

ASME B16.11 45 Degree Threaded Elbow Manufacturers in India

Stainless Steel 45 Degree NPT Elbow Suppliers

ANSI B16.11 Screwed Elbow Dimensions

45 Degree Threaded Elbow stockist in Mumbai, India, Manufacturer of Threaded Brass Elbow, ASME B16.11 Threaded Elbow Class 3000 Price in India.

Table of Content

What is ASME B16.11 45 Degree Threaded Elbow?

ASME B16.11 45 Degree Threaded Elbow

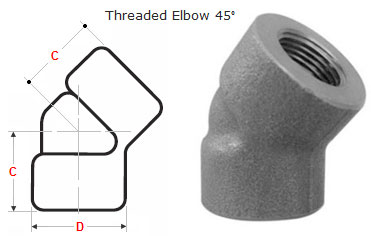

45 Degree Threaded Elbow Dimensions

45 Degree Threaded Elbow Dimensions

45 Degree Threaded Elbow Class 2000 Dimensions

NPS Outside Diameter
of Band		 Center to End
D 90°
A		 45°
C
1/2 33 28 22
3/4 38 33 25
1 46 38 28
1¼ 56 44 33
1½ 62 51 35
2 75 60 43
2½ 92 76 52
3 109 86 64
4 146 106 79

ASME B16.11 45 Degree Threaded Elbow Class 3000 Dimensions

NPS Outside Diameter
of Band		 Center to End
D 90° A 45° C
1/2 38 33 25
3/4 46 38 28
1 56 44 33
1¼ 62 51 35
1½ 75 60 43
2 84 64 44
2½ 102 83 52
3 121 95 64
4 152 114 79

Threaded 45 Deg Elbow Class 6000 Dimensions

NPS Outside Diameter
of Band		 Center to End
D 90° A 45° C
1/2 46 38 28
3/4 56 44 33
1 62 51 35
1¼ 75 60 43
1½ 84 64 44
2 102 83 52
2½ 121 95 64
3 146 106 79
4 152 114 79

ASME B16.11 45 Degree Threaded Elbow Specification

45 Degree Threaded Elbow Dimensions ASME B16.11, MSS SP-79, MSS SP-95, MSS SP-83, MSS SP-97, BS 3799
Threaded Elbow Class 150 Size 1/8" NB TO 4" NB
Threaded Elbow Class 3000 3000 LBS, 6000 LBS, 9000 LBS
Threaded Brass Elbow Type Socket Weld (SW) & Screwed (SCRD) – NPT, BSP, BSPT
Threaded Pipe Elbow Form 45 Deg Threaded Elbow, Forged Threaded 45° Elbow
Threaded Reducing Elbow Value Added Services Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Elbow Threaded Grooved Production Grades Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low Temperature Steel, Carbon Steel, Cupro Nickel
Screwed Elbow Pressure Ratings Up to 20,000 psig (1,378 bar)
45 Degree Threaded Elbow Temperature Ratings Up to 1000°F (537°C)
45 Degree NPT Elbow Material 316 Stainless Steel, Brass, Carbon Steel
Types of ASME B16.11 Threaded Elbow Fittings NPT, ISO/BSP, SAE Threads
Threaded Elbow Class 150 Sizes Available 1/16" to 1"
Main Types Pipe Nipples, Adapters, Gaskets, Reducing Bushings, Reducers, Couplings, Elbows, Tees, Crosses, Union Ball Joints, Caps and Plugs

ASME B16.11 GI Threaded Elbow Standards

ASME B16.11 GI Threaded Elbow ASME B16.11, MSS SP-79, MSS SP-95, MSS SP-83, MSS SP-95, MSS SP-97, BS 3799
DIN DIN 2605, DIN 2615, DIN 2616, DIN 2617, DIN 28011
EN EN 10253-1, EN 10253-2

45 Degree NPT Elbow Types

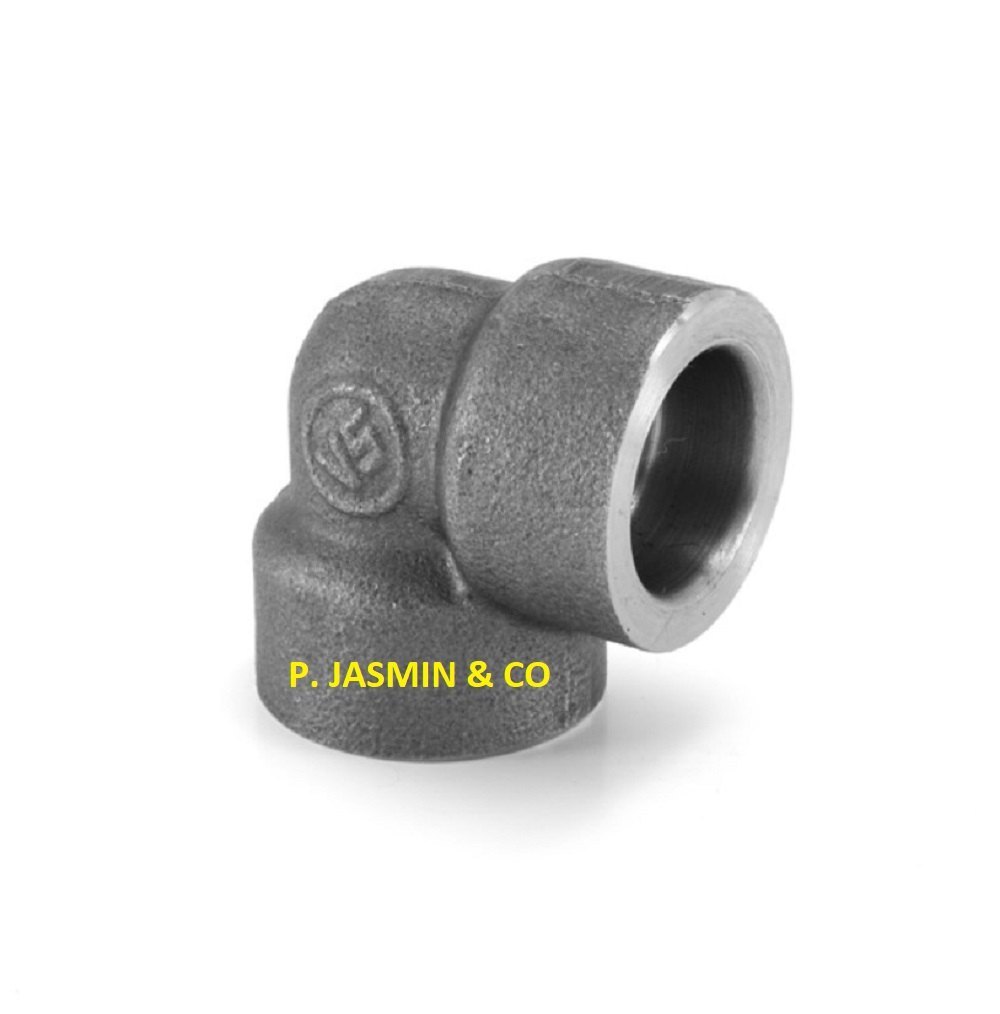

Class 3000 Threaded Brass Elbow

Class 3000 Elbow, Threaded Brass Elbow

Class 6000 NPT Threaded Elbow

Class 6000 Elbow, NPT Threaded Elbow

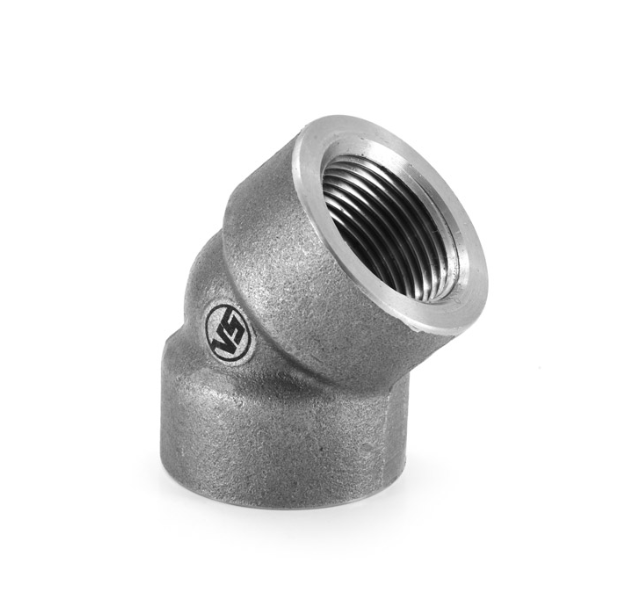

Class 9000 MS Threaded Elbow

Class 9000 Elbow, MS Threaded Elbow

B16.11 NPT 45 Degree Street Elbow

B16.11 NPT 45 Degree Street Elbow Brass

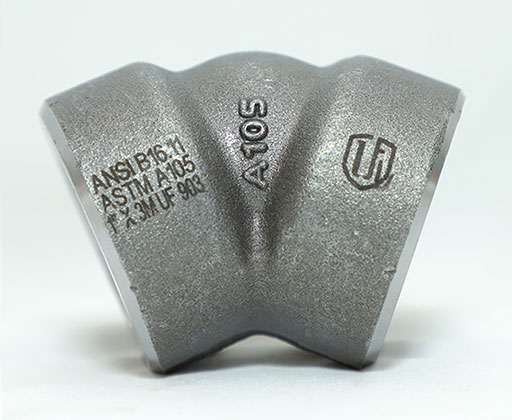

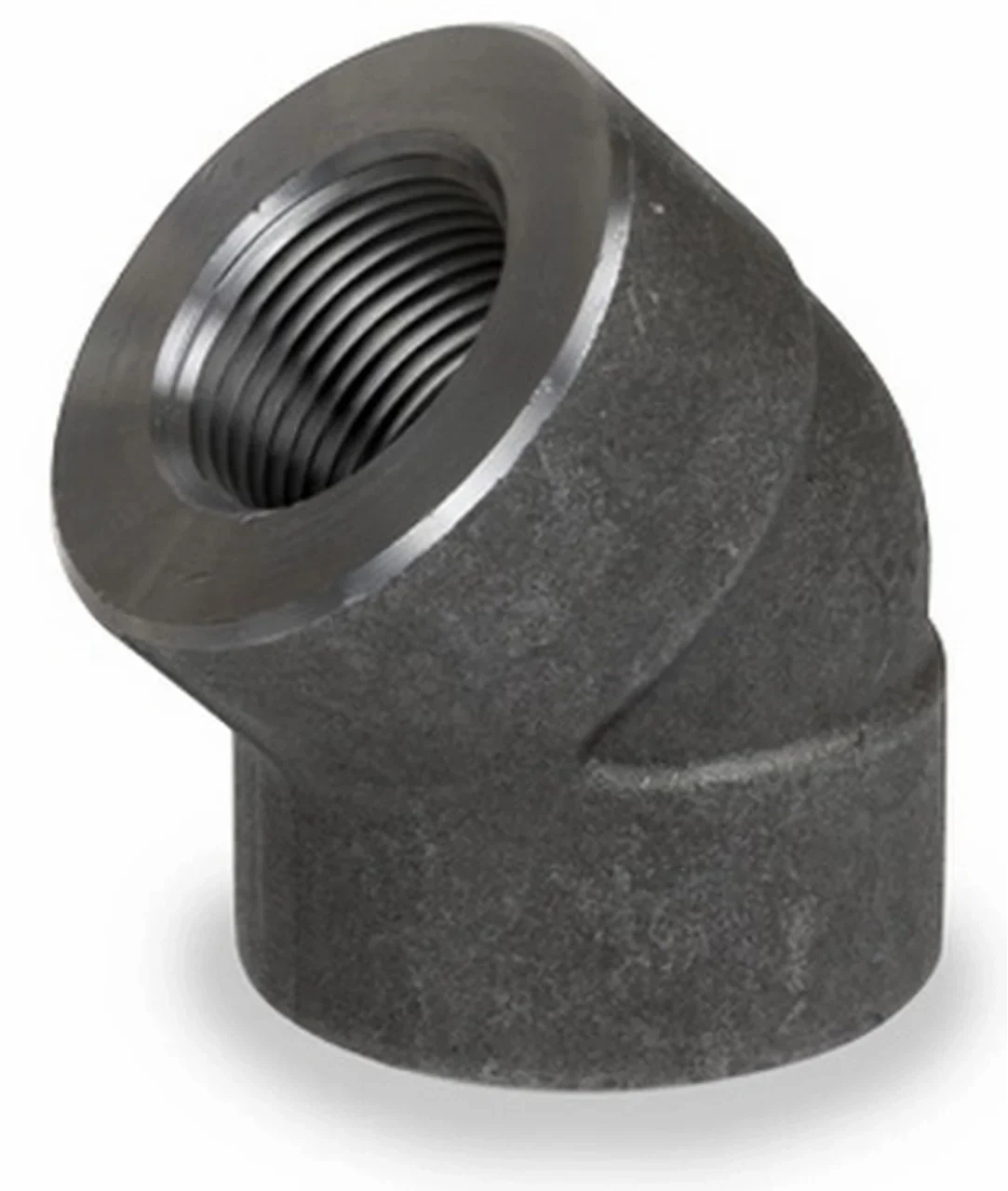

ASTM A105 45 Degree Threaded Elbow

ASTM A105 45 Degree Threaded Elbow

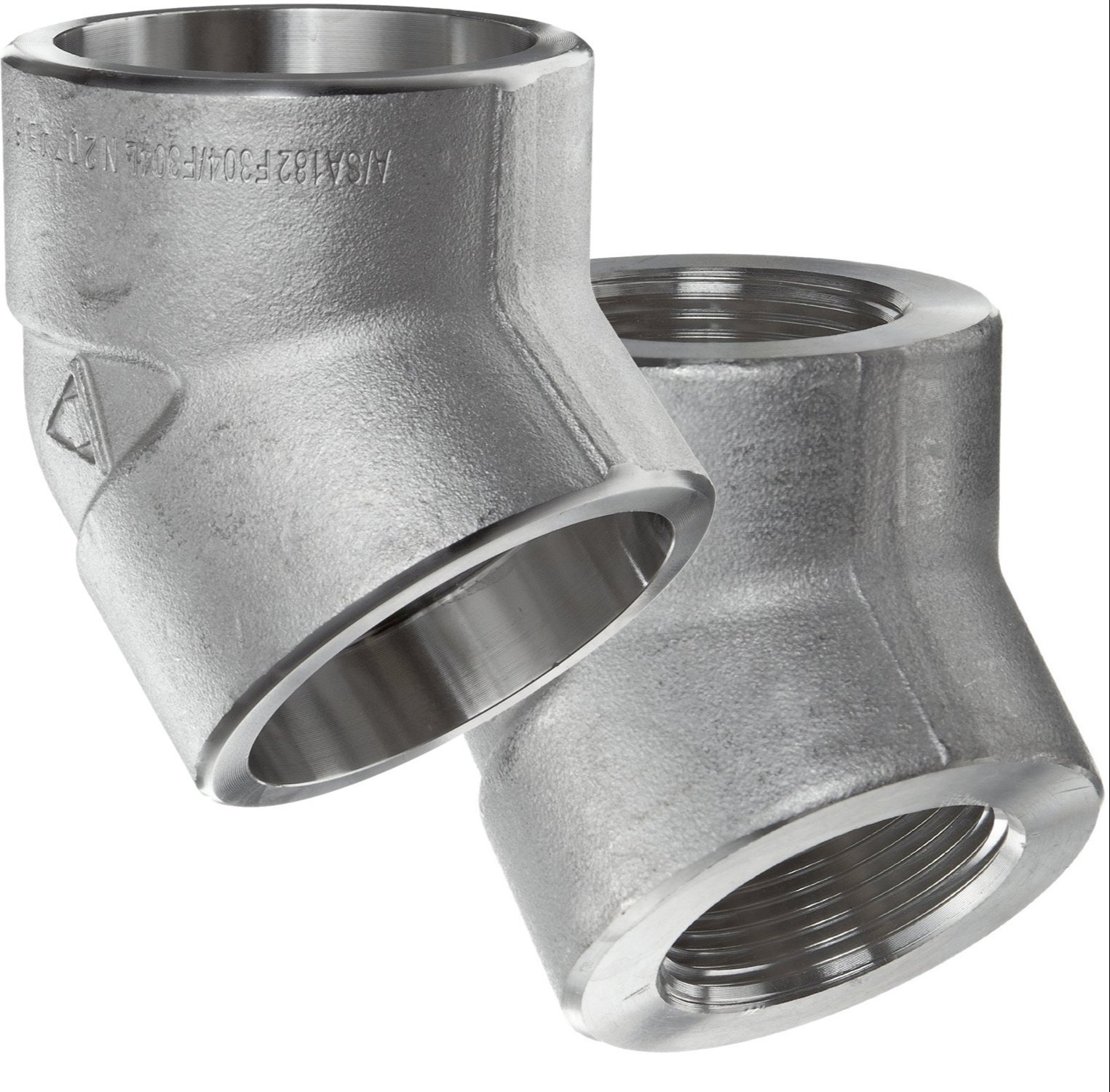

A182 45 Degree Threaded Elbow

A182 45 Degree Threaded Elbow

ASTM A350 45 Degree Threaded Elbow

ASTM A350 45 Degree Threaded Elbow

A182 Gr F304 Forged 45 Degree Threaded Elbow

A182 Gr F304 Forged 45 Degree Threaded Elbow

ASME B16.11 Threaded Elbow Material

Carbon Steel Screwed Elbows ASTM A105
ASME SA105
DIN 1.0402
DIN 1.0460
DIN 1.0619
ASTM A105N
ASME SA105N
ASTM A350 LF2
ASME SA350
High Yield CS ASTM A694
Stainless Steel Threaded Elbows ASTM A182 F304
ASTM A182 F304L
ASTM A182 F316L
ASTM A182 F317
ASTM A182 F317L
ASTM A182 F321
ASTM A182 F321H
ASTM A182 F347
ASTM A182 F347H
Alloy Steel Threaded Long Radius Elbows ASTM A182 F5
ASTM A182 F9
ASTM A182 F11
ASTM A182 F22
ASTM A182 F91
Titanium Threaded Elbows ASTM B381 Titanium Gr.1
ASTM B381 Titanium Gr.2
ASTM B381 Titanium Gr.4
ASTM B381 Titanium Gr.5
ASTM B381 Titanium Gr.7
Inconel Threaded Elbows Inconel 600
Inconel 601
Inconel 625
Inconel 718
Inconel X750
Copper Threaded Elbows T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640
Copper Nickel Threaded Elbows Copper Nickel 90/10 (C70600) 45 Degree
Cupro Nickel 70/30 (C71500) 45 Degree
UNS C71640 45 Degree
Brass Threaded Elbows 3602 / 2604 / H59 / H62 / etc.
Hastelloy Threaded Elbows Hastelloy C276 (UNS N10276) 45 Degree
Hastelloy C22 (UNS N06022) 45 Degree
Hastelloy C4 45 Degree
Hastelloy C2000 45 Degree
Hastelloy B2 45 Degree
Hastelloy B3 45 Degree
Hastelloy X 45 Degree
Monel Threaded Elbows Monel 400 (UNS N04400) 45 Degree
Monel 500 (UNS N05500) 45 Degree
Alloy 20 Threaded Elbows Carpenter® 20 Alloy 45 Degree
Alloy 20Cb-3 45 Degree
Aluminium Threaded Elbows 5052 / 6061 / 6063 / 2017 / 7075
Nickel Threaded Elbows Nickel 200 45 Degree
Nickel 201 45 Degree
Duplex Threaded Elbows S31803 / S32205
ASTM A182 F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Threaded Elbows S32750 / S32760
ASTM A182 F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Threaded Elbows Incoloy 800 45 Degree
Incoloy 800H 45 Degree
Incoloy 800HT (UNS N08800) 45 Degree
Incoloy 825 (UNS N08825) 45 Degree
254 SMO Threaded Elbows SMO 254 / 6Mo 45 Degree
UNS S31254 45 Degree
DIN 1.4547 45 Degree
Nimonic Threaded Elbows Nimonic 75 45 Degree
Nimonic 80A 45 Degree
Nimonic 90 45 Degree
Other ASME B16.11 Threaded Elbow Materials Tin Bronze 45 Degree
Aluminum Bronze 45 Degree
Lead Bronze 45 Degree

Threaded Elbow Weight Chart

Class Dimension 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3
Class 2000 B - 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/16 4 5/8
F - 3/4 3/4 1 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 2 1/16 2 1/8
Wt - 0.188 0.236 0.435 0.740 1.058 1.375 1.740 2.883 7.750 11.300
Class 3000 B 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/8
F 3/4 3/4 1 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 1 3/4 2 1/16 2 1/8
Wt 0.250 0.290 0.500 0.750 1.188 1.988 2.235 3.000 4.930 7.375 13.500
Class 6000 B 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 5 3/8
F 3/4 1 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 1 3/4 2 1/16 2 1/2 3 1/4
Wt 0.250 0.640 0.500 1.438 2.188 2.785 4.688 5.750 9.500 15.000 30.500

ASME B16.11 Fittings, NPT Threaded Pipe Fittings stockholder, Carbon Steel Forged Threaded Pipe Fittings suppliers in India. BS 3799 Duplex Stainless Steel NPT Pipe Fittings manufacturers and NPT 3000 lbs Threaded Adaptors Fittings wholesaler in Mumbai.

Arrow Piping Solutions maintains a wide range of Threaded Galvanised Fittings in various thicknesses and specifications, ensuring ready stock availability for immediate dispatch across India and global export markets.
