ASME B16.11 90 Degree Threaded Elbow

ASME B16.11 90 Degree Threaded Elbow

Suppliers of Elbow 90 npt , ANSI B16.11 90 Deg Threaded Copper Elbow manufacturer in India

ASME B16.11 90 Degree Threaded Elbow Manufacturers in India

Elbow 90 NPT Supplier in Mumbai

Check ANSI B16.11 Screwed 90 Degree Elbow Dimensions

90 Degree Elbow Female Threaded wholesaler in Mumbai, Manufacturer of SS Threaded 90 Degree Elbow, NPT, ISO/BSP, SAE threads ASME B16.11 Screwed 90 Degree Elbow Price in India.

Table of Content

What is ASME B16.11 90 Degree Threaded Elbow?

ASME B16.11 90 Degree Threaded Elbow

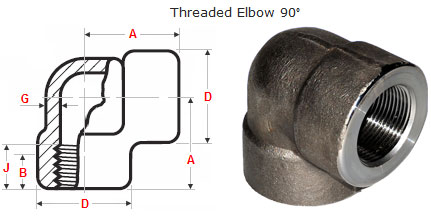

90 Degree threaded elbow Dimensions Chart

45 Degree Threaded Elbow Dimensions

Threaded 90 Degree Elbow Class 2000 Dimensions

NPS Minimum Length
of Thread		 Outside Diameter
of Band		 Minimum
Wall Thickness		 Center to End
B J D G 90°
A
1/2 10.9 13.6 33 3.18 28
3/4 12.7 13.9 38 3.18 33
1 14.7 17.3 46 3.68 38
1¼ 17 18 56 3.89 44
1½ 17.8 18.4 62 4.01 51
2 19 19.2 75 4.27 60
2½ 23.6 28.9 92 5.61 76
3 25.9 30.5 109 5.99 86
4 27.7 33 146 6.55 106

90 Degree Threaded Elbow Class 3000 Dimensions

NPS Minimum Length
of Thread		 Outside Diameter
of Band		 Minimum
Wall Thickness		 Center to End
B J D G 90°
A
1/2 10.9 13.6 38 4.09 33
3/4 12.7 13.9 46 4.32 38
1 14.7 17.3 56 4.98 44
1¼ 17 18 62 5.28 51
1½ 17.8 18.4 75 5.56 60
2 19 19.2 84 7.14 64
2½ 23.6 28.9 102 7.65 83
3 25.9 30.5 121 8.84 95
4 27.7 33 152 11.13 114

90 Degree Threaded Elbow Class 6000 Dimensions

NPS Minimum Length
of Thread		 Outside Diameter
of Band		 Minimum
Wall Thickness		 Center to End
B J D G 90°
A
1/2 10.9 13.6 46 8.15 38
3/4 12.7 13.9 56 8.53 44
1 14.7 17.3 62 9.93 51
1¼ 17 18 75 10.59 60
1½ 17.8 18.4 84 11.07 64
2 19 19.2 102 12.09 83
2½ 23.6 28.9 121 15.29 95
3 25.9 30.5 146 16.64 106

Notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • Dimension B is minimum length of perfect thread.
  • The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than J.

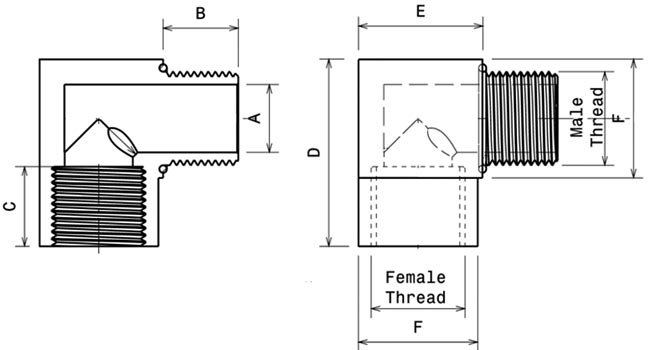

Threaded Male & Female 90 Degree Elbow Dimensions

Threaded Male Female 90 Degree Elbow Dimensions
NPS Minimum Length
of Thread 		Outside Diameter
of Band 		Minimum
Wall Thickness 		Center to End
B J D G 90°
A		 45°
C
1/2 10.9 13.6 46 8.15 38 28
3/4 12.7 13.9 56 8.53 44 33
1 14.7 17.3 62 9.93 51 35
1 1/4 17 18 75 10.59 60 43
1 1/2 17.8 18.4 84 11.07 64 44
2 19 19.2 102 12.09 83 52
2 1/2 23.6 28.9 121 15.29 95 64
3 25.9 30.5 146 16.64 106 79
4 27.7 33 152 18.67 114 79

90 Degree Elbow Female Threaded Specification

90 Degree Threaded Elbow Dimensions ASME 16.11, MSS SP-79, MSS SP-95, MSS SP-83, MSS SP-95, MSS SP-97, BS 3799
90 Degree Threaded Copper Elbow Size 1/8" NB TO 4" NB
90 Degree Threaded Street Elbow Class 3000 LBS, 6000 LBS, 4500 LBS
90 Degree Elbow Female Threaded Type Socket Weld (S/W) & Screwed (SCRD) – NPT, BSP, BSPT
90 Degree Threaded Street Elbow Form 90 Deg Threaded Elbow, Forged Threaded 90° Elbow
Threaded 90 Degree Elbow Value Added Services Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Brass Threaded 90 Degree Elbow Production Grades Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low Temperature Steel, Carbon Steel, Cupro Nickel
90 Degree Threaded Street Elbow Pressure Ratings Up to 20,000 psig (1,378 bar)
90 Degree Elbow Female Threaded Temperature Ratings Up to 1000° F (537° C)
Types of 90 Degree Threaded Elbow NPT, ISO/BSP, SAE Threads
Sizes Available 1/16 to 1 in.
Main Types Pipe Nipples, Adapter and Gaskets, Reducing Bushing and Reducers, Couplings, Elbows, Tees, Crosses, Union Ball Joints, Caps, and Plugs

90 Degree Threaded Street Elbow Standards

ASME B16.11 Screwed 90 Degree Elbow ASME 16.11, MSS SP-79, MSS SP-95, MSS SP-83, MSS SP-95, MSS SP-97, BS 3799
DIN DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN EN10253-1, EN10253-2

45 Degree NPT Elbow Types

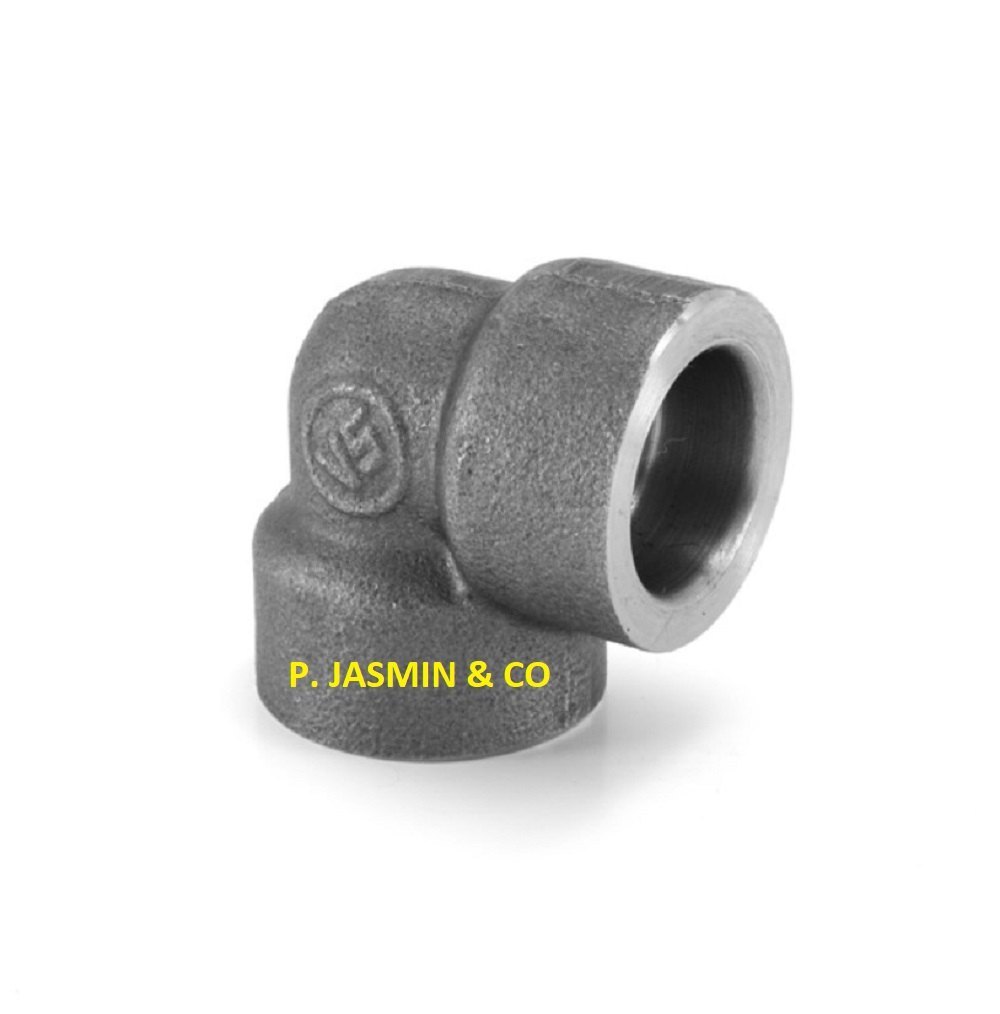

Class 3000 Threaded Brass Elbow

Class 3000 Elbow, Threaded Brass Elbow

Class 6000 NPT Threaded Elbow

Class 6000 Elbow, NPT Threaded Elbow

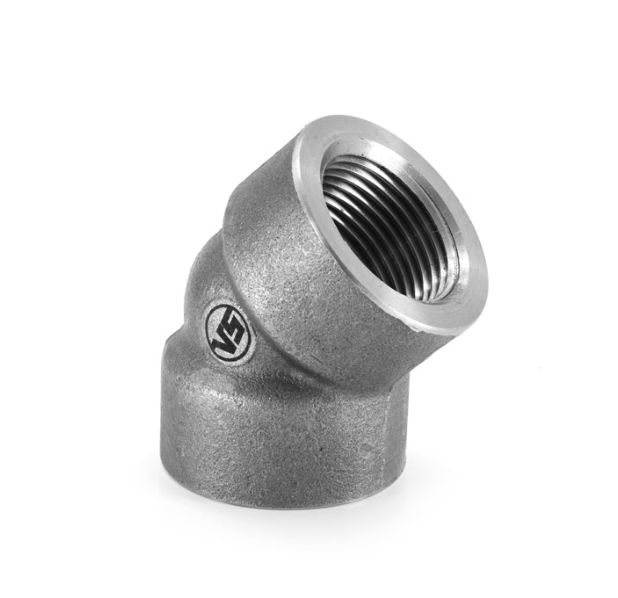

Class 9000 MS Threaded Elbow

Class 9000 Elbow, MS Threaded Elbow

B16.11 NPT 45 Degree Street Elbow

B16.11 NPT 45 Degree Street Elbow Brass

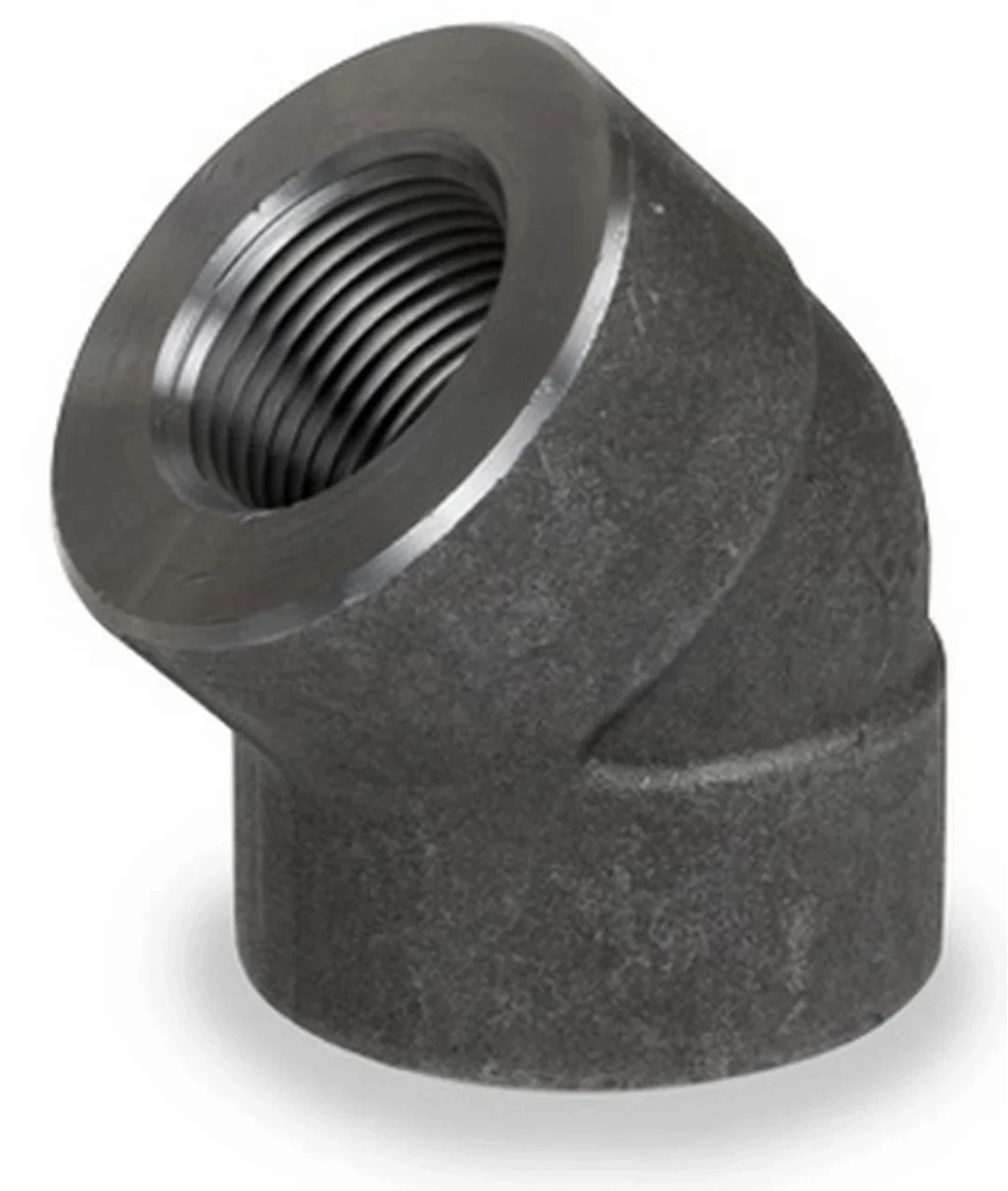

ASTM A105 45 Degree Threaded Elbow

ASTM A105 45 Degree Threaded Elbow

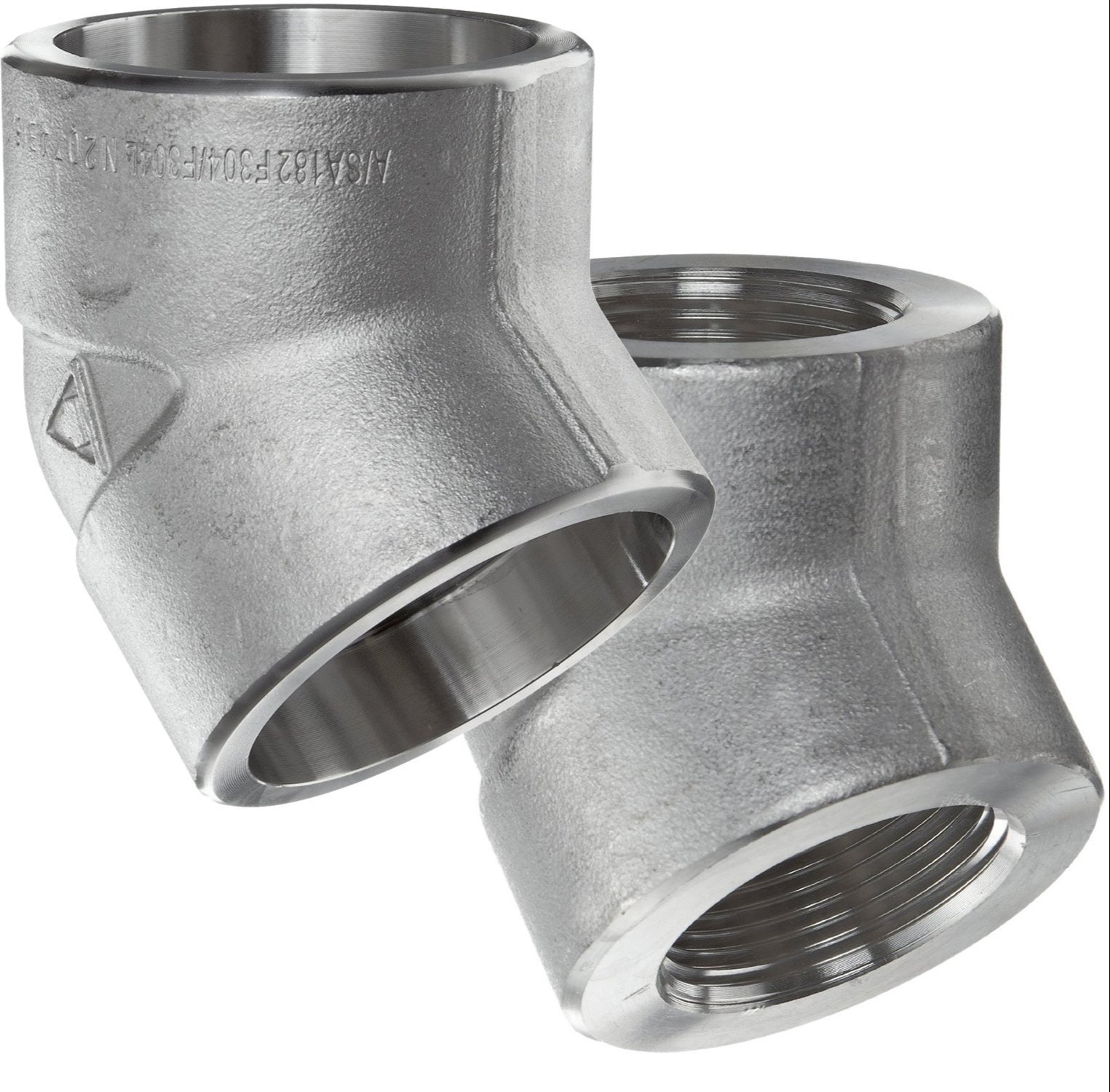

A182 45 Degree Threaded Elbow

A182 45 Degree Threaded Elbow

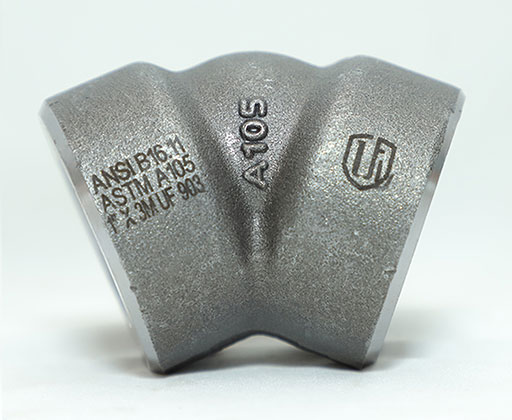

ASTM A350 45 Degree Threaded Elbow

ASTM A350 45 Degree Threaded Elbow

A182 Gr F304 Forged 45 Degree Threaded Elbow

A182 Gr F304 Forged 45 Degree Threaded Elbow

Threaded 90 Degree Elbow Material

Carbon Steel Screwed Elbow ASTM A105, ASME SA105, DIN 1.0402, DIN 1.0460, DIN 1.0619, ASTM A105N, ASME SA105N, ASTM A350 LF2, ASME SA350, High Yield CS ASTM A694
Stainless Steel 90 Degree Threaded Elbow ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316L, ASTM A182 F317, ASTM A182 F317L, ASTM A182 F321, ASTM A182 F321H, ASTM A182 F347, ASTM A182 F347H
Alloy Steel 90 Degree Elbow Female Threaded ASTM A182 F5, ASTM A182 F9, ASTM A182 F11, ASTM A182 F22, ASTM A182 F91
Titanium 90 Degree Threaded Street Elbow ASTM B381 Titanium Gr. 1, ASTM B381 Titanium Gr. 2, ASTM B381 Titanium Gr. 4, ASTM B381 Titanium Gr. 5, ASTM B381 Titanium Gr. 7
Inconel Threaded 90 Degree Elbow Inconel 600, Inconel 601, Inconel 625, Inconel 718, Inconel X750
Copper 90 Degree Short Radius Threaded Elbow T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc.
Copper Nickel 90 Degree Short Radius Threaded Elbow Copper Nickel 90/10 (C70600) 90 Degrees, Cupro Nickel 70/30 (C71500) 90 Degrees, UNS C71640 90 Degrees
Brass Threaded 90 Degree Elbow 3602 / 2604 / H59 / H62 / etc.
Hastelloy 90 Degree Elbow Female Threaded Hastelloy C276 (UNS N10276) 90 Degrees, C22 (UNS N06022) 90 Degrees, C4 90 Degrees, C2000 90 Degrees, B2 90 Degrees, B3 90 Degrees, X 90 Degrees
Monel Elbow Brass Threaded 90 Degree Elbow Monel 400 (UNS No. N04400) 90 Degrees, Monel 500 (UNS No. N05500) 90 Degrees
Alloy 20 90 Degree Elbow Female Threaded Carpenter® 20 Alloy 90 Degrees, Alloy 20Cb-3 90 Degrees
Aluminium 90 Degree Threaded Elbow 5052 / 6061 / 6063 / 2017 / 7075 / etc.
Nickel 90 Degree Threaded Street Elbow Nickel 200 90 Degrees, Nickel 201 90 Degrees
Duplex NPT 90 Degree Elbows S31803 / S32205 ASTM A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Threaded 90 Degree Elbow S32750 / S32760 ASTM A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy 90 Degree Threaded Elbow Incoloy 800 90 Degree, Incoloy 800H 90 Degree, Incoloy 800HT (UNS N08800) 90 Degree, Incoloy 825 (UNS N08825) 90 Degree
254 SMO Forged Brass Threaded 90 Degree Elbow SMO 254/6Mo 90 Degree, UNS S31254 90 Degree, DIN 1.4547 90 Degree
Nimonic Forged NPT 90 Degree Elbows Nimonic 75 90 Degree, Nimonic 80A 90 Degree, Nimonic 90 90 Degree
Other ASME B16.11 90 Degree Threaded Elbow Material Tin Bronze 90 Degree, Aluminum Bronze 90 Degree, Lead Bronze 90 Degree

ASME B16.11 Screwed 90 Degree Elbow Price List

SS 90 Degree Threaded Elbow Price Per Piece in India 90 Degree Threaded Street Elbow Price in INR 90 Degree Elbow Female Threaded Price in Saudi Riyal ASME B16.11 90 Degree Threaded Elbow Price in UAE Dirham
90° Elbow: 2 NPS, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL3000#, GALV. TO A153, ASME B16.11 Rs. 494.34 Saudi Riyal 25.88 UAE Dirham 25.35
90° Elbow: 1/2 NPS, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL3000#, GALV. TO A153, ASME B16.11 Rs. 780.92 Saudi Riyal 40.88 UAE Dirham 40.04
90° Elbow: 1 NPS, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL3000#, GALV. TO A153, ASME B16.11 Rs. 995.85 Saudi Riyal 52.14 UAE Dirham 51.06

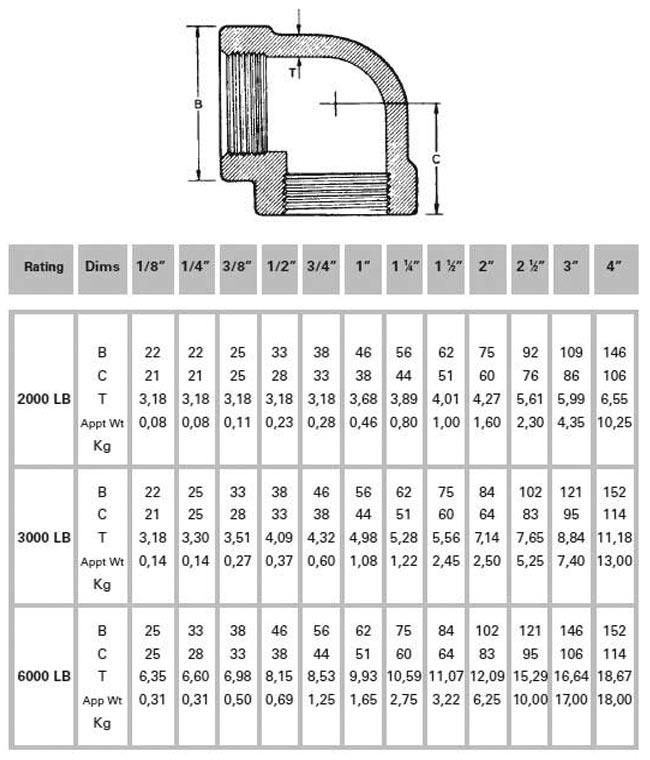

Brass Threaded 90 Degree Elbow Weight Chart

Brass Threaded 90 Degree Elbow Weight Chart

Screwed Long Radius 90 Degree Elbows, 90 Degree Short Radius Threaded Elbow exporter, Brass Threaded 90 Degree Elbow suppliers in India, SS 90 Degree Threaded Elbow manufacturers and A105 90 Degree Threaded Elbow stockists in Mumbai, India.

Manufacturing 90 Degree Elbow Female Threaded in India, Arrow Piping Solutions holds a wide range of Stainless Steel 90 Degree Threaded Elbows in all thicknesses with ready stock available for immediate dispatch throughout India and worldwide.
