Threaded Cap Fitting

ANSI / ASME B16.11 Threaded Cap Fitting

Suppliers of BSP Threaded Cap , ANSI B16.11 Brass Threaded Cap manufacturer in India.

BSP Threaded Cap Suppliers in Mumbai

View ASME B16.11 Threaded Cap Fitting Dimensions

ANSI B16.11 Forged Threaded Pipe Cap Manufacturers in India

ANSI B16.11 Forged Threaded Pipe Cap Manufacturers in India

Table of Content

What is ASME B16.11 Threaded Cap Fitting ?

ASME B16.11 45 Degree Threaded Elbow

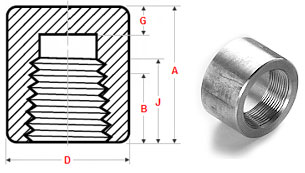

Threaded Pipe Cap Dimensions

45 Degree Threaded Elbow Dimensions

Screwed Pipe Cap 3000LB Threaded Dimensions

NPS End to End Outside Diameter Minimum End Wall Thickness Minimum Length of Thread
A D G B J
1/2 32 28 6.4 10.9 13.6
3/4 37 35 6.4 12.7 13.9
1 41 44 9.7 14.7 17.3
1 1/4 44 57 9.7 17 18
1 1/2 44 64 11.2 17.8 18.4
2 48 76 12.7 19 19.2
2 1/2 60 92 15.7 23.6 28.9
3 65 108 19 25.9 30.5
4 68 140 22.4 27.7 33

Threaded Pipe Cap Dimensions Class 6000 NPS 1/2 to 4

NPS End to End Outside Diameter Minimum End Wall Thickness Minimum Length of Thread
A D G B J
1/2 33 38 7.9 10.9 13.6
3/4 38 44 7.9 12.7 13.9
1 43 57 11.2 14.7 17.3
1 1/4 46 64 11.2 17 18
1 1/2 48 76 12.7 17.8 18.4
2 51 92 15.7 19 19.2
2 1/2 64 108 19 23.6 28.9
3 68 127 22.4 25.9 30.5
4 75 159 28.4 27.7 33

Threaded Cap ASME B16.11 Specification

Threaded Pipe Cap Dimensions ASME B16.11, MSS SP-79, MSS SP-95, MSS SP-83, MSS SP-97, BS 3799
ASME B16.11 Threaded Cap Size 1/8" NB TO 4" NB
ANSI B16.11 Forged Threaded Pipe Cap Class 3000 LBS, 6000 LBS, 9000 LBS
ASME B16.11 Forged Threaded End Pipe Cap Type Socket Weld (S/W) & Screwed (SCRD) – NPT, BSP, BSPT
ASTM A182 SS Threaded Pipe Caps Form Threaded End Pipe Cap, Forged Threaded End Cap
SS 310 Threaded Pipe Cap Pressure Ratings Up to 20,000 psig (1,378 bar)
ASME B16.11 Threaded Cap Temperature Ratings Up to 1000°F (537°C)
Types of ASME B16.11 Forged Threaded End Pipe Cap NPT, ISO/BSP, SAE Threads
Threaded Cap ASME B16.11 Sizes Available 1/16" to 1"
Main Types Pipe Nipples, Adapters and Gaskets, Reducing Bushings and Reducers, Couplings, Elbows, Tees, Crosses, Union Ball Joints, Caps and Plugs
ANSI B16.11 Forged Threaded Pipe Cap Value Added Services Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
ASME B16.11 Forged Threaded End Pipe Cap Production Grades Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low Temperature Steel, Carbon Steel, Cupro Nickel

Threaded Fittings End Pipe Cap Standards

ASME B16.11 Threaded Cap ASME B16.11, MSS SP-79, MSS SP-95, MSS SP-83, MSS SP-97, BS 3799
DIN DIN 2605, DIN 2615, DIN 2616, DIN 2617, DIN 28011
EN EN 10253-1, EN 10253-2

ASME B16.11 Threaded Cap Types

Class 3000 Threaded Brass Elbow

Class 3000 Elbow, Threaded Cap

Class 6000 NPT Threaded Elbow

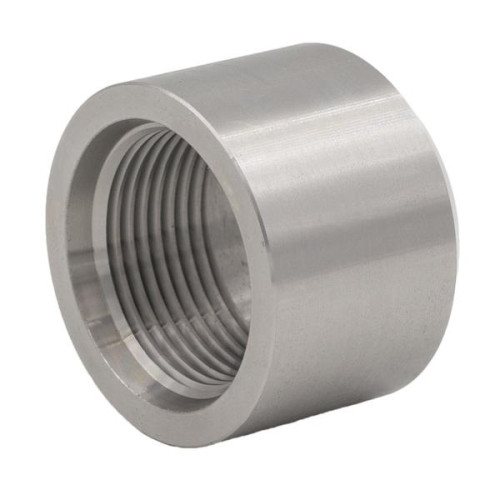

Class 6000 Elbow, Threaded Cap

Class 9000 MS Threaded Elbow

Class 9000 Elbow, Threaded Cap

B16.11 NPT 45 Degree Street Elbow

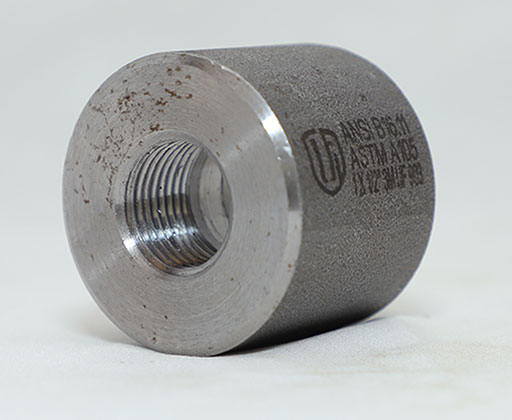

B16.11 Threaded Cap

ASTM A105 45 Degree Threaded Elbow

ASTM A105 Threaded Cap

A182 45 Degree Threaded Elbow

A182 Threaded Cap

ASTM A350 45 Degree Threaded Elbow

ASTM A350 Threaded Cap

A182 Gr F304 Forged 45 Degree Threaded Elbow

A182 Gr F304 Forged Threaded Cap

Screwed Pipe Cap Material

Carbon Steel Threaded Cap ASME B16.11
  • ASTM A105
  • ASME SA105
  • DIN 1.0402
  • DIN 1.0460
  • DIN 1.0619
  • ASTM A105N
  • ASME SA105N
  • ASTM A350 LF2
  • ASME SA350
  • High Yield CS ASTM A694
Stainless Steel Threaded Pipe Cap
  • ASTM A182 F304
  • ASTM A182 F304L
  • ASTM A182 F316L
  • ASTM A182 F317
  • ASTM A182 F317L
  • ASTM A182 F321
  • ASTM A182 F321H
  • ASTM A182 F347
  • ASTM A182 F347H
Alloy Steel Forged Screwed Pipe Cap
  • ASTM A182 F5
  • ASTM A182 F9
  • ASTM A182 F11
  • ASTM A182 F22
  • ASTM A182 F91
Titanium Threaded Cap Fitting
  • ASTM B381 Titanium Gr. 1
  • ASTM B381 Titanium Gr. 2
  • ASTM B381 Titanium Gr. 4
  • ASTM B381 Titanium Gr. 5
  • ASTM B381 Titanium Gr. 7
Inconel Bronze Threaded Cap Inconel 600, Inconel 601, Inconel 625, Inconel 718, Inconel X750
Copper Brass Threaded Cap T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc.
Copper Nickel BSP Threaded Cap Copper Nickel 90/10 (C70600) Pipe Caps, Cupro Nickel 70/30 (C71500) Pipe Caps, UNS C71640 Pipe Caps
Brass Screwed Pipe Cap 3602 / 2604 / H59 / H62 / etc.
Hastelloy Forged Threaded Pipe Cap Hastelloy C276 (UNS N10276) Pipe Caps, C22 (UNS N06022) Pipe Caps, C4 Pipe Caps, C2000 Pipe Caps, B2 Pipe Caps, B3 Pipe Caps, X Pipe Caps
Monel Forged Screwed Pipe Cap Monel 400 (UNS No. N04400) Pipe Caps, Monel 500 (UNS No. N05500) Pipe Caps
Alloy 20 Threaded Forged Pipe Cap Carpenter® 20 Alloy Pipe Caps, Alloy 20Cb-3 Pipe Caps
Aluminium Screwed Pipe Cap 3000LB Threaded 5052 / 6061 / 6063 / 2017 / 7075 / etc.
Nickel Forged Threaded Pipe Cap Nickel 200 End Pipe Caps, Nickel 201 End Pipe Caps
Duplex Threaded Cap ASME B16.11 S31803 / S32205 ASTM A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Forged 3000LB Threaded Pipe Cap S32750 / S32760 ASTM A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Threaded Cap Fitting Incoloy 800 End Pipe Caps, Incoloy 800H End Pipe Caps, Incoloy 800HT (UNS N08800) End Pipe Caps, Incoloy 825 (UNS N08825) End Pipe Caps
254 SMO Brass Threaded Caps SMO 254/6Mo End Pipe Caps, UNS S31254 End Pipe Caps, DIN 1.4547 End Pipe Caps
Nimonic BSP Threaded Cap Nimonic 75 End Pipe Caps, Nimonic 80A End Pipe Caps, Nimonic 90 End Pipe Caps
Other ASME B16.11 Threaded Cap Material Tin Bronze Threaded Cap Fitting, Aluminum Bronze Threaded Cap, Lead Bronze Brass Threaded Cap

ASTM A182 SS Threaded Pipe Caps Price List

Forged End Cap Price Per Piece in India ASME B16.11 Threaded Cap Fitting Price in INR ASTM A182 SS Threaded Pipe Caps Price in Saudi Riyal Forged Screwed Pipe Cap Price in UAE Dirham
CAP: 1/2 NPS, CAP, THRD, NPT-F (ASME B1.20.1), CL3000#, A105 GALV TO A153, ASME B16.11 Rs. 704.93 Saudi Riyal 36.76 UAE Dirham 36.00
CAP: 1 NPS, CAP, THRD, NPT-F (ASME B1.20.1), CL3000#, A105 GALV TO A153, ASME B16.11 Rs. 776.86 Saudi Riyal 40.52 UAE Dirham 39.67
CAP: 1/2 NPS, CAP, THRD, NPT-F (ASME B1.20.1), CL6000#, A105N, NACE MR-0175 / ISO 15156, ASME B16.11 Rs. 625.80 Saudi Riyal 32.64 UAE Dirham 31.96
CAP: 1/2 NPS, CAP, THRD, NPT-F (ASME B1.20.1), CL3000#, A105N, NACE MR-0175 / ISO 15156, ASME B16.11 Rs. 1007.04 Saudi Riyal 52.52 UAE Dirham 51.43

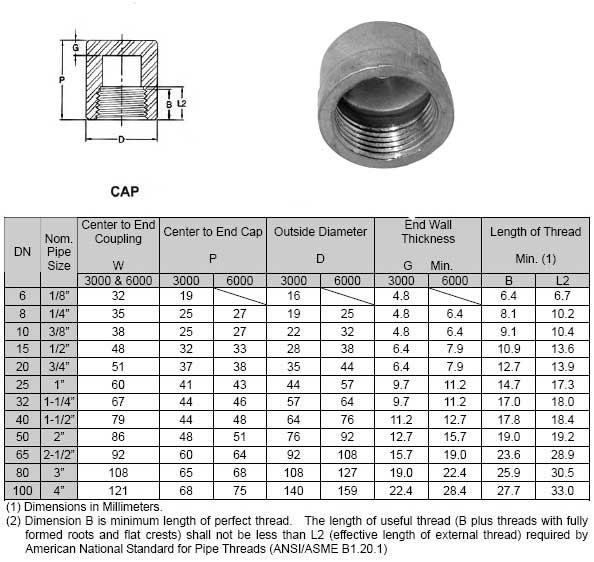

Stainless Steel Threaded Pipe Cap Weight Chart
