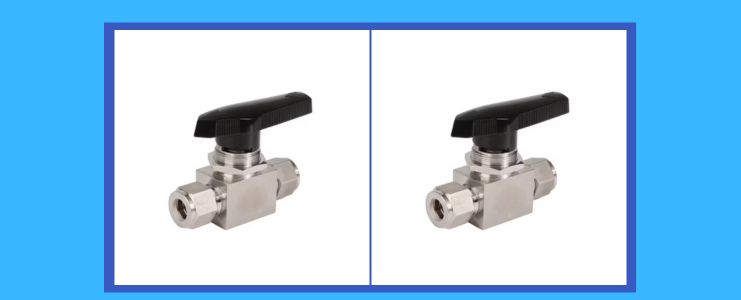

ASTM A182 254 SMO Valves
Arrow Piping Solutions is a leading manufacturer and exporter of ASTM A182 254 SMO Valves in India. These valves are crafted using 254 SMO, an austenitic stainless steel grade with outstanding performance in marine environments, cryogenic conditions, and high-temperature applications. Our SMO 254 Valves are engineered to handle extreme conditions and offer exceptional corrosion resistance, mechanical strength, and pressure ratings.
The austenitic microstructure of 254 SMO ensures high impact strength at both room and cryogenic temperatures (as low as -196°C). Our UNS S31254 SMO 254 Cryogenic Globe Valves are ideal for extremely low-temperature use. Additionally, with high nickel content and proper heat treatment, our SMO 254 Ball Valves perform efficiently in high-temperature applications like ballast water systems, heat exchangers, firefighting systems, and cooling systems in marine settings.
All valves are manufactured using hot forged bar stock, then heat-treated per ASTM specifications. Every SMO 254 Valve from Arrow Piping Solutions undergoes strict quality control, including leak testing, pressure testing, and compliance with ANSI/ASME/API/MSS standards.
254 SMO Valve Specifications
| Grade/Alloy | 254 SMO |
|---|---|
| UNS Number | UNS S31254 |
| Forging | A182 F44 |
| Casting | A351 CK3MCuN |
| Size | 1/2" to 4" (DN25-DN200) |
| Thread Types | NPT, BSPP, ISO 6149, SAE |
| Connection Types | Welded, Socket, Clamped, Flanged, Threaded |
| Pressure Class | PN10 / PN16 / 3000PSI / 6000PSI / 10000PSI |
| Temperature Range | Up to 371°C (Grafoil), 232°C (PTFE) |
| Operation | Manual, Pneumatic, Electric Actuator |
| Seal Materials | PTFE, PPL, Graphite |
| Standards | ASME B16.34, B16.5, API 6D, ISO, DIN, 3A, JIS |
| Manufacturing Process | Forged Bar Stock |
| Packaging | PVC Package, Wooden Case or Custom |
Pressure Ratings (ASME B16.34 - A182 F44)
| Temperature (°F) | Pressure (PSI) |
|---|---|
| -20 to 100 | 275 to 6000 PSI |
| 200 | 230 to 5000 PSI |
| 400 | 190 to 4140 PSI |
| 600 | 140 to 3640 PSI |
| 800 | 80 to 3360 PSI |
| 1000 | 20 to 2675 PSI |
| 1200 | 20 to 1285 PSI |
| 1500 | 10 to 230 PSI |
Types of 254 SMO Valves We Offer
- SMO 254 Globe Valves
- Alloy 254 SMO Gate Valves
- SMO 254 Needle Valves (Compact, Mini, Hexagonal)
- 254 SMO Ball Valves – 2 Way, 3 Way, 5 Way, Lockable
- UNS S31254 Butterfly Valves (Triclamp/Threaded)
- Low Pressure Pneumatic Ball Valves
- High Pressure Hydraulic Valves (6000 – 10000 PSI)
- Manifold Valves – OS-LOK Instrumentation Type
Applications of SMO 254 Valves
- Marine Environments
- Heat Exchangers
- Ballast & Cooling Systems
- Food & Beverage Industry
- Dairy & Pharmacy Equipment
- Firefighting Systems
- Pulp & Paper Industry
- Chemical Processing
- Cosmetics & Personal Care
- Oil & Gas Refineries
- Water Treatment
- Instrumentation Panels
Arrow Piping Solutions also stocks compatible valves from trusted brands like Swagelok, Parker, DK LOK, DUOLOK, GYROLOK, and TYLOK. We provide OEM services and customized valve solutions as per project needs from our port in Mumbai, India.
