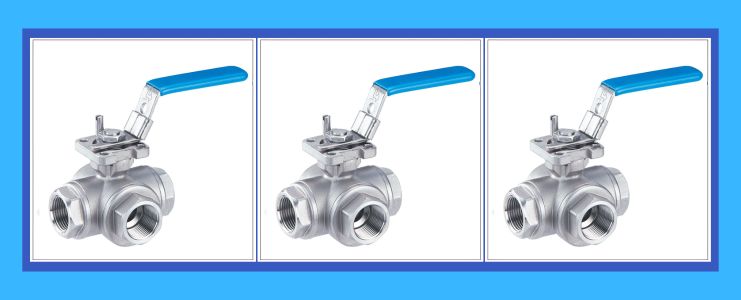

L Port Ball Valves
Arrow Piping Solutions is a leading manufacturer and distributor of 3 Way L Port and T Port Ball Valves made from high-grade Stainless Steel 316 and Brass. Our valves are widely used in fluid control systems requiring multiple flow path configurations and are ideal for industrial, chemical, and HVAC applications.
The L Port Ball Valve is a 3-way valve used to direct flow between different sources or destinations. With a simple quarter-turn, it can alternate fluid paths, making it perfect for tank switching or bypass operations. T Port Ball Valves, on the other hand, allow for mixing or diverting flow. Both valve types come in various body materials, including 316 Stainless Steel and forged brass, with threaded, flanged, and press-fit ends.
L Port Ball Valve Specifications
| Material | SS 304, SS 316, CF8, CF8M, Forged Brass |
|---|---|
| Size Range | ¼” – 4” (DN8 – DN100) |
| Pressure Rating | PN16, PN63, 1000 PSI, 6000 PSI |
| Temperature Range | -30°C to +180°C |
| Design | L Port, T Port, 2-Way, 3-Way, 4-Way |
| End Connections | BSPP, NPT, Flanged, Press-fit |
| Seat Material | PTFE, RPTFE, PVDF |
| Features | Locking Lever, Blow-Out Proof Stem, Fire Safe, Anti-Static |
Common Applications
- Oil and Gas Pipeline Switching
- Water Treatment Plants
- HVAC Control Systems
- Pharmaceutical and Food Industries
- Industrial Chemical Flow Management
- Compressed Air Distribution
Available Sizes & Dimensions
| DN | Size (inch) | Length (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|---|
| 15 | ½" | 75 | 66 | 0.63 |
| 20 | ¾" | 85 | 72 | 0.94 |
| 25 | 1" | 100 | 77 | 1.39 |
| 32 | 1 ¼" | 122 | 92 | 2.91 |
| 40 | 1 ½" | 131 | 96 | 3.66 |
| 50 | 2" | 158 | 107 | 6.31 |
Certifications & Compliance
- API 607 Fire Safe Design
- API 598, ASME B16.34
- MSS SP-110 / MSS SP-145
- ISO 5211 for Direct Mount
- NSF/ANSI 372 Certified
- EN 12266, PED 97/23/EC
Why Choose Arrow Piping Solutions?
- Wide range of SS and Brass 3 Way Valves (L & T Port)
- In-house Design, Testing & Custom OEM Branding
- High Pressure and Temperature Ratings
- Quick Delivery with Bulk Stock in Mumbai
- Trusted by Top Brands like Parker, Swagelok
- Export-Ready & ISO Certified Manufacturing
Looking for reliable L Port or T Port Ball Valves in India? Contact Arrow Piping Solutions — your trusted source for 316 SS and Brass 3-Way Valves engineered for performance and durability.
