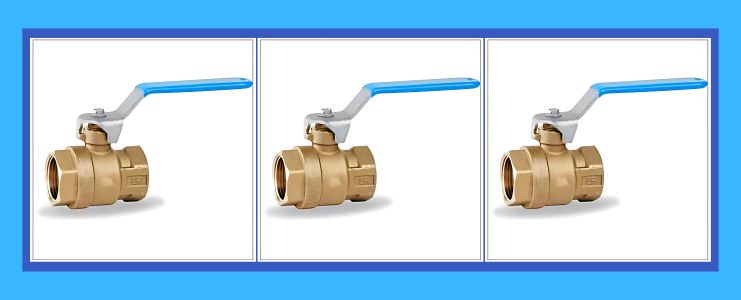

CW617N Ball Valves
Arrow Piping Solutions is a leading manufacturer and supplier of high-performance brass valves including CZ122 Brass Solenoid Valves and Bronze CuZn40Pb2 3-Way Valves in Mumbai, India. We offer a complete range of CW617N Brass Ball Valves, PN25/40 CuZn40Pb2 Brass Valves, and CW617N Float Ball Valves, available at competitive dealer prices across India.
Our CW617N Brass Valves are engineered as full bore ball valves, conforming to EN13828 and EN228-1 standards. Available in sizes from ½” to 2”, these valves support pressures up to PN30 (500 PSI) and temperatures ranging from -10°C to 110°C, making them ideal for fluid control in oil, HVAC systems, water supply, and industrial processes.
CW617N Brass Ball Valve Specifications
| Material | Forged Brass (CW617N, CZ122, CuZn40Pb2) |
|---|---|
| Size Range | 1/2″ – 2″ |
| Working Pressure | PN30 / 500 PSI |
| Working Temperature | -10°C to 110°C |
| Cycles | 10,000+ operations |
| Standard | EN13828, EN12266, EN228-1, PED 97/23/EC |
| End Connection | BSP, NPT, Flanged, Press-fit |
| Bore Options | Standard, Full, Reduced |
| Applications | Oil, HVAC, Water, Non-corrosive Fluids |
| Valve Types | 2-Way, 3-Way, Solenoid, Manual, Pneumatic |
Chemical Composition – CW617N Brass
| Element | Content (%) |
|---|---|
| Copper (Cu) | 58.0 |
| Lead (Pb) | 2.0 |
| Nickel (Ni) | 0.1 – 0.3 |
| Iron (Fe) | 0.2 |
| Other Elements | ≤ 0.2% |
| Zinc (Zn) | Remainder |
Physical & Mechanical Properties
| Density | 8.43 g/cm³ |
|---|---|
| Electrical Conductivity | 14.94 MS/m |
| Thermal Conductivity | 114 W/(m·K) |
| Thermal Expansion | 20.8 ×10⁻⁶/K |
| Modulus of Elasticity | 97 GPa |
Pressure Ratings & Dimensions
CW617N Brass Ball Valve Pressure Classes:
- PN25, PN30, PN40, PN50
- 1000 PSI / 69 Bar | 600 PSI / 41.4 Bar | 400 PSI / 27.6 Bar
Standard Sizes (mm):
- DN10 to DN50 (3/8" to 2")
- Dimensions vary by type: Standard, Full, or Reduced Bore
Applications
- Oil & Gas Industry
- HVAC Systems
- Food & Beverage Plants
- Water Supply and Irrigation
- Compressed Air Systems
- Industrial Fluid Distribution
- Petrochemicals
- Fire Protection Systems
- Pharmaceuticals
- Home Appliances
- Boiler and Heating Systems
- Architectural Plumbing
Why Choose Arrow Piping Solutions?
- IBR Approved and ISO Certified Manufacturing
- Customized Valve Design and Branding (OEM Accepted)
- Bulk Supply Capability with Competitive Ex-Mumbai Pricing
- 100% Leak Tested and Certified to International Standards
- Dealer of Trusted Brands like Swagelok and Parker
For best-in-class CW617N Brass Ball Valves, CZ122 Solenoid Valves, and CuZn40Pb2 Bronze Valves, contact Arrow Piping Solutions — your trusted partner for industrial valve solutions in India.
