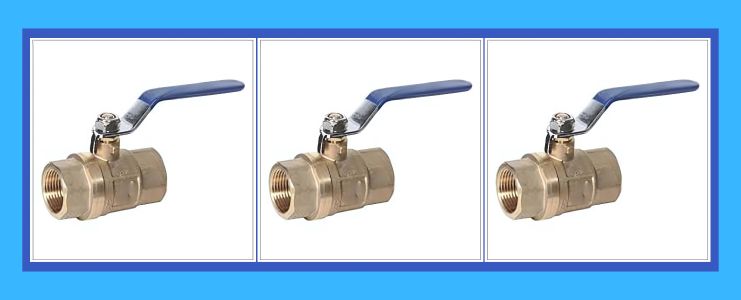

600 CWP Ball Valves
Arrow Piping Solutions is a leading manufacturer and supplier of Full Bore 2-Piece 600 WOG FPT Brass Ball Valves and 600 CWP PN40 DN20 NPT Bronze Ball Valves in India. Designed for cold working pressure (CWP) applications, these valves are ideal for systems operating at pressures up to 600 PSI and temperatures up to 100°F.
Our 600 CWP ball valves offer robust performance with manual or electric actuation, and are available in a wide range of sizes from ¼” to 2”. These shut-off valves provide secure, leak-proof operation with threaded, flanged, or soldered ends. Arrow Piping Solutions delivers both two-way and three-way configurations with FNPT, NPT, and press-to-connect options.
All our ball valves conform to international standards including MSS SP-110, MSS SP-145, API-607, API-608, CSA B125.14, NSF/ANSI-372, and more. We manufacture in materials such as CF8, CF8M, CF3, CF3M, WCB, CK20, Titanium Grades, and various ASTM B367 grades.
600 CWP Ball Valve Specifications
| Size | ¼” to 4” (DN 8 to DN 100) |
|---|---|
| Material | Brass, Bronze, CF8, CF8M, CF3M, WCB, CK20, Titanium |
| Type | Full Port, 2-Piece, Threaded / Flanged / Solder |
| Pressure Rating | 600 PSI CWP / 150 SWP |
| Temperature Range | -40°F to 400°F |
| End Connections | FNPT, NPT, Flanged, Soldered, Press-to-Connect |
| Standards | API, MSS, CSA, NSF, IAPMO, ASME |
| Operation | Manual Handle / Electric / Pneumatic Actuator |
600 CWP Ball Valve Applications
Arrow Piping Solutions supplies 600 CWP Ball Valves to critical industries such as:
- Food Processing
- Pharmaceuticals
- Oil & Gas
- Water Treatment
- HVAC Systems
- Textile Plants
- Home Appliances
- Petrochemical Industry
- Heat Exchangers
- Cold Storage
- Compressed Air Systems
- Fluid Control Systems
- Industrial Automation
CWP vs WOG
| CWP (Cold Working Pressure) | Measured at ambient temperature (up to 100°F), suitable for most industrial processes. |
|---|---|
| WOG (Water, Oil, Gas) | Indicates max pressure for water, oil, or gas media – not accounting for temperature effects. |
600 CWP Ball Valve Price Range (in India)
Price varies based on size, material, and end connection. Below are indicative prices:
| Size | Connection | Temp Range | Price (INR) |
|---|---|---|---|
| 1/4" | FNPT | 0° to 350°F | ₹900 – ₹2,800 |
| 3/8" | FNPT | -20° to 300°F | ₹700 – ₹2,500 |
| 1/2" | Threaded/Solder | -40° to 400°F | ₹750 – ₹2,300 |
| 1" | Threaded | 0° to 350°F | ₹1,200 – ₹3,800 |
Note: Bulk orders available with dealer price. Compare our range with leading brands like Apollo and Febco in Mumbai and across India.
Why Choose Arrow Piping Solutions?
- Manufactured with industry-grade brass, bronze, and stainless steel alloys
- Fire-safe, lead-free, and pressure tested valves
- Compliant with API, ANSI, ASTM, MSS, CSA, and NSF standards
- Available in split body, extended bonnet, jacketed, and trunnion mounted types
- High-volume supply with fast delivery across India
