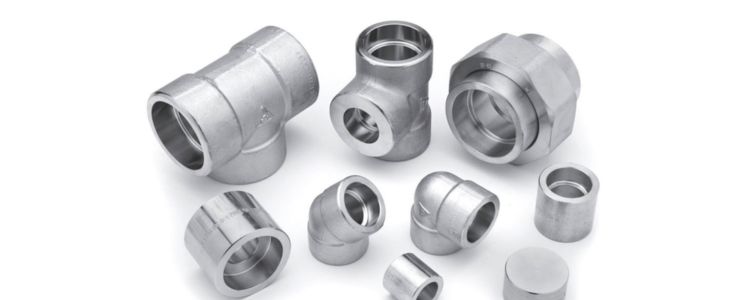

Inconel 718 Forged Fittings
Arrow Piping Solutions is a reputed manufacturer, stockist, and exporter of premium-grade Inconel 718 Forged Fittings, ideal for high-pressure and high-temperature applications. Made from nickel-chromium alloy with added niobium, molybdenum, and titanium, these fittings exhibit excellent tensile and impact strength, high corrosion resistance, and superior creep-rupture properties.
We offer Inconel 718 Forged Fittings in a wide range of types, sizes, and specifications, tailored to meet the rigorous demands of various industries. Our products are known for robust construction, smooth finish, precise dimensions, and long service life. All fittings are produced under strict quality standards like ASTM and ASME, ensuring defect-free products with guaranteed performance.
Inconel 718 Forged Fittings Range:
- Alloy 718 Forged Coupling
- ASTM B564 Alloy 718 Threaded Union
- Alloy 718 Hex Bushing
- 718 Inconel Socketweld 45° Elbow
- Inconel 718 High Pressure Forged Pipe Fittings
- Inconel 718 Plug
- Alloy 718 90° Socketweld Cross
- Inconel 718 Screwed Half Coupling
- Inconel Alloy 718 Threaded Elbow
- Inconel 718 Socketweld Reducing Tee
- Inconel 718 Threaded Cap
Specifications
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| Standard | WERKSTOFF NR. | UNS |
|---|---|---|
| Inconel 718 | 2.4668 | N07718 |
Arrow Piping Solutions supplies Inconel 718 Forged Fittings to industries such as oil and gas, heat exchangers, petrochemicals, pharmaceuticals, water treatment, and power generation. We offer robust packaging and reliable global shipping solutions for safe and timely delivery.
Chemical Composition (%):
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
|---|---|---|---|---|---|---|---|---|
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 | - | 50.00–55.00 | 17.00–21.00 |
Mechanical Properties
| Density | 8.2 g/cm³ |
|---|---|
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | 930 MPa / 135,000 psi |
| Yield Strength (0.2% Offset) | 482 MPa / 75,000 psi |
| Elongation | 45% |
Manufacturing Standards
| ASTM B564 – ASME SB564 | Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Low Pressure Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Screwed & Socket-welding Fittings for Petroleum Industry |
Applications of Inconel 718 Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
- Furniture Industry
Arrow Piping Solutions guarantees precision, quality, and excellence in Inconel 718 Forged Fittings. For bulk orders or customized fitting requirements, contact us today for a competitive quote and fast delivery options.
