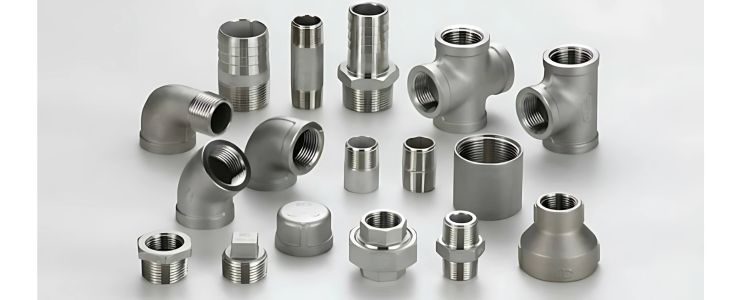

Inconel 625 Forged Fittings
Arrow Piping Solutions is a leading manufacturer, stockist, and distributor of high-grade Inconel 625 Forged Fittings, widely used in industrial applications that demand superior performance under extreme conditions. These fittings are crafted from a nickel-chromium alloy enriched with molybdenum and niobium, ensuring high corrosion resistance and excellent mechanical strength.
We offer Inconel 625 Forged Fittings with robust construction, smooth surface finish, high tensile strength, and an extended service life. All products are fabricated in compliance with international standards and are available in a wide range of sizes, thicknesses, and specifications, including customized dimensions as per customer requirements.
Inconel 625 Forged Fittings Range:
- Alloy 625 Forged Coupling
- ASTM B564 Alloy 625 Threaded Union
- Alloy 625 Hex Bushing
- 625 Inconel Socketweld 45° Elbow
- Inconel 625 High Pressure Forged Pipe Fittings
- Inconel 625 Plug
- Alloy 625 90° Socketweld Cross
- Inconel 625 Screwed Half Coupling
- Inconel Alloy 625 Threaded Elbow
- Inconel 625 Socketweld Reducing Tee
- Inconel 625 Threaded Cap
Specifications
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| Standard | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
Arrow Piping Solutions supplies Inconel 625 Forged Fittings for applications in oil & gas, water treatment, pulp and paper, heat exchangers, chemical and petrochemical processing, and many other demanding environments. We offer various packaging and shipping options to ensure safe and on-time delivery across India and worldwide.
Chemical Composition (%):
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
|---|---|---|---|---|---|---|---|---|
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 | 58.0 min | 20.0 – 23.0 |
Mechanical Properties
| Density | 8.4 g/cm³ |
|---|---|
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | 930 MPa / 135,000 psi |
| Yield Strength (0.2% Offset) | 705 MPa / 75,000 psi |
| Elongation | 42.5% |
Manufacturing Standards
| ASTM B564 – ASME SB564 | Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Low Pressure Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Screwed & Socket-welding Fittings for Petroleum Industry |
Applications of Inconel 625 Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
- Furniture Industry
Arrow Piping Solutions ensures high-quality Inconel 625 Forged Fittings with accurate specifications, superior packaging, and timely delivery. Contact us to place an order or request a detailed quotation tailored to your needs.
