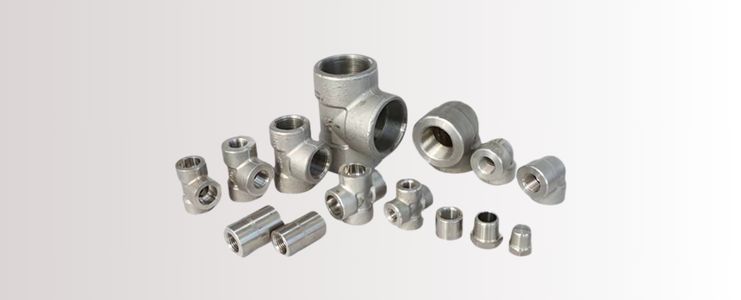

Inconel 601 Forged Fittings
Arrow Piping Solutions is a renowned and trusted manufacturer and exporter of Inconel 601 Forged Fittings in India. Our forged fittings are fabricated using top-quality raw materials in adherence to national and international standards, ensuring long-lasting performance in demanding conditions.
These Inconel 601 Forged Fittings are recognized for their rugged construction, excellent corrosion resistance, durability, and resistance to high temperatures and heavy loads. Arrow Piping Solutions provides these fittings in a variety of dimensions, sizes, and specifications, including custom configurations as per client needs.
Inconel 601 Forged Fittings Range:
- Alloy 601 Forged Coupling
- ASTM B564 Alloy 601 Threaded Union
- Alloy 601 Hex Bushing
- 601 Inconel Socketweld 45° Elbow
- Inconel 601 High Pressure Forged Pipe Fittings
- Inconel 601 Plug
- Alloy 601 90° Socketweld Cross
- Inconel 601 Screwed Half Coupling
- Inconel Alloy 601 Threaded Elbow
- Inconel 601 Socketweld Reducing Tee
- Inconel 601 Threaded Cap
Specifications
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| Standard | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
Arrow Piping Solutions offers Inconel 601 Forged Fittings widely used in petrochemical, thermal, chemical processing, and gas processing applications. These fittings are available at competitive prices and are delivered with secure packaging to ensure safe transit worldwide.
Chemical Composition (%):
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
|---|---|---|---|---|---|---|---|---|
| Inconel 601 | 0.10 max | 1.00 max | 0.50 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
Mechanical Properties
| Density | 8.1 g/cm³ |
|---|---|
| Melting Point | 1411 °C (2571 °F) |
| Tensile Strength | 550 MPa / 80,000 psi |
| Yield Strength (0.2% Offset) | 205 MPa / 30,000 psi |
| Elongation | 30% |
Manufacturing Standards
| ASTM B564 – ASME SB564 | Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Low Pressure Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Screwed & Socket-welding Fittings for Petroleum Industry |
Applications of Inconel 601 Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
- Furniture Industry
Arrow Piping Solutions is committed to delivering superior Inconel 601 Forged Fittings with assured quality, precision engineering, and prompt delivery. Contact us now to request a quote or to know more about our products and pricing in India and across global markets.
