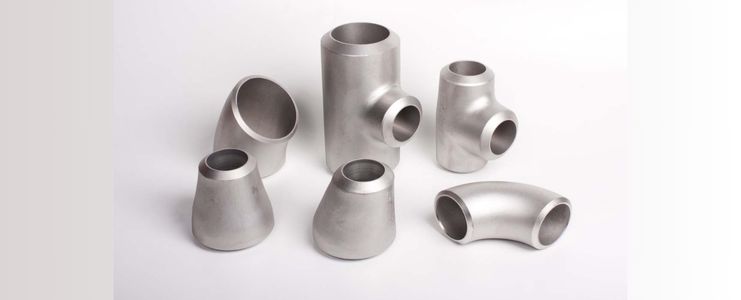

Inconel 600 Forged Fittings
Arrow Piping Solutions is a leading manufacturer and supplier of Inconel 600 Forged Fittings, offering ideal solutions for applications ranging from cryogenic to high-temperature environments. These fittings are made from a nickel-chromium alloy known for its superior resistance to oxidation, corrosion, and chloride stress cracking under extreme conditions.
Our Inconel 600 Forged Fittings are known for high tensile strength, smooth finish, excellent corrosion resistance, and long service life. We manufacture and stock a wide range of fittings in various dimensions and specifications to meet the needs of global industries. All products are made in compliance with international standards and rigorously tested for quality and performance.
Inconel 600 Forged Fittings Range:
- 600 Inconel Socketweld 45° Elbow
- Alloy 600 Forged Coupling
- Alloy 600 Hex Bushing
- ASTM B564 Alloy 600 Threaded Union
- Inconel 600 High Pressure Forged Pipe Fittings
- Inconel 600 Plug
- Alloy 600 90° Socketweld Cross
- Inconel 600 Screwed Half Coupling
- Inconel Alloy 600 Threaded Elbow
- Inconel 600 Socketweld Reducing Tee
- Inconel 600 Threaded Cap
Specifications
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| Standard | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
Arrow Piping Solutions is supplying a premium range of Inconel 600 Forged Fittings suitable for numerous industrial services such as Nuclear reactors, Pulp, and Paper industries, Seawater treatment plants, Condensers, Chemical Processing, Gas processing industries, and Petrochemicals. We are providing these fittings at competitive rates to our worldwide customers. We offer various shipping and packaging options to ensure the safe and on-time delivery of the products as per the needs. We guarantee to use adequate material for packaging the product to avoid any damage during the delivery process.
Chemical Composition (%):
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
|---|---|---|---|---|---|---|---|---|
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015 max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
Mechanical Properties
| Density | 8.47 g/cm³ |
|---|---|
| Melting Point | 1413 °C (2580 °F) |
| Tensile Strength | 655 MPa / 95,000 psi |
| Yield Strength (0.2% Offset) | 310 MPa / 45,000 psi |
| Elongation | 45% |
Manufacturing Standards
| ASTM B564 – ASME SB564 | Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Low Pressure Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Screwed & Socket-welding Fittings for Petroleum Industry |
Applications of Inconel 600 Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
Arrow Piping Solutions delivers precision-engineered Inconel 600 Forged Fittings at competitive rates with secure packaging and global delivery options. Contact us today to discuss your requirements or to request a quote.
