Stainless Steel 316 Welded Pipe


Arrow Piping Solutions is a renowned manufacturer and supplier of Stainless Steel 316 Welded Pipes, known for their exceptional corrosion resistance, durability, and strength. Manufactured using high-grade raw materials and advanced welding techniques, our SS 316 Welded Pipes ensure strong welds and reliable performance in demanding environments. They are especially resistant to pitting and crevice corrosion in chloride-rich settings, making them ideal for marine, chemical, and industrial applications.


Stainless Steel 316 Welded Pipe is composed of 16–18% Chromium, 10–14% Nickel, and 2–3% Molybdenum, contributing to excellent resistance against rust and corrosion. It features a minimum tensile strength of 515 MPa and yield strength of 205 MPa. The pipes exhibit great thermal conductivity (16.3 W/m.K at 100°C and 21.5 W/m.K at 500°C) and a density of 8000 kg/m³. Available in wall thicknesses ranging from 0.8 mm to 12.7 mm and outer diameters from 6.35 mm to 114.3 mm, our pipes come in lengths of up to 26 meters to meet diverse industrial needs.

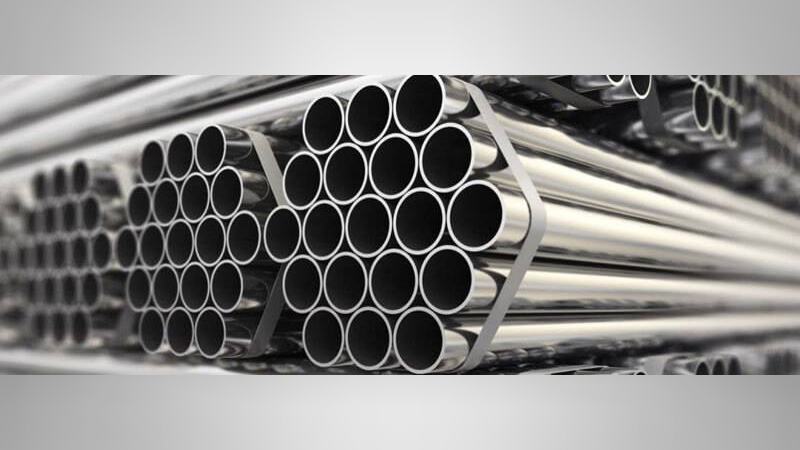

Stainless-Steel-316-Welded-Pipes

Benefits of Stainless Steel 316 Welded Pipe


  • Corrosion Resistance: Excellent resistance to pitting, crevice, and general corrosion, especially in marine and chemical environments.
  • High Strength & Durability: Capable of withstanding high pressure and mechanical stress for long-term use.
  • Superior Weldability: Maintains corrosion resistance and strength after welding, suitable for complex fabrications.
  • Hygienic & Easy Maintenance: Smooth surface finish makes cleaning simple—ideal for food and pharmaceutical industries.
  • Excellent Formability: Easily bends, shapes, and forms without losing structural integrity.

Applications of SS 316 Welded Pipe

  • Marine Industry
  • Petrochemical Industry
  • Pharmaceutical Industry
  • Power Plants
  • Oil & Gas Industry
  • Chemical Processing
  • Aerospace Sector
  • Construction Industry
  • Food Processing Units
  • Wastewater Treatment

Most Common Types

  • SS 316 Welded Pipe
  • 316 SS Round Pipe
  • SS 316 Welded Square Pipe
  • SS 316 Polished Pipe
  • SS 316 Schedule 40 Seamless Pipe
  • 316 Stainless Steel Thin Wall Pipe
  • Stainless Steel 316 Custom Pipe
  • Stainless Steel 316 Cold Drawn Seamless Pipe

Stainless Steel 316 Welded Pipe Specifications

SpecificationsASTM A312 / ASME SA312
GradeSS 316
Outside Diameter6.35 mm OD to 114.3 mm OD
Wall Thickness0.8 mm – 12.7 mm
Size1/8″ NB – 36″ NB
TypeWelded, ERW, EFW
FormRound, Square Pipes
LengthUp to 26 Meters
EndPlain End, Beveled End
Surface FinishPolished, Brushed, Mill Finish
PackingWooden Boxes, Bubble Wraps, Bundles, or Custom Packaging
MarkingGrade, Size, Heat No., Manufacturing Standard, Batch No., Manufacturer’s Name

Packing & Marking

Our SS 316 Welded Pipes are carefully packed in wooden crates, bundles, or custom packaging with protective wraps to prevent scratches or damage during transit. Each pipe is marked with complete identification including grade, size, heat number, and manufacturing details. Additional custom markings and third-party inspection labels are available upon request.

Quality Checks & Certifications

  • PMI Testing (Positive Material Identification)
  • Mechanical and Chemical Testing
  • Flattening, Flare, Bend, and Hardness Testing
  • Ultrasonic, Etching, and Tensile Testing
  • EN 10204 3.1/3.2 Test Certificates
  • Third-Party Inspections (SGS, TUV, DNV, LLOYDS, etc.)
  • NABL-Accredited Lab Reports
