SMO 254 Pipe Fittings
Arrow Piping Solutions is a trusted manufacturer, supplier, and exporter of a broad range of SMO 254 Buttweld Pipe Fittings in India. Our range includes ASME SA403 SMO 254 45° Elbow, 254 SMO® 90° Elbow, SMO 254 Reducers, UNS S31254 Pipe Elbows, SMO 254 Pipe Caps, ANSI B16.9 SMO 254 Reducers, and more.

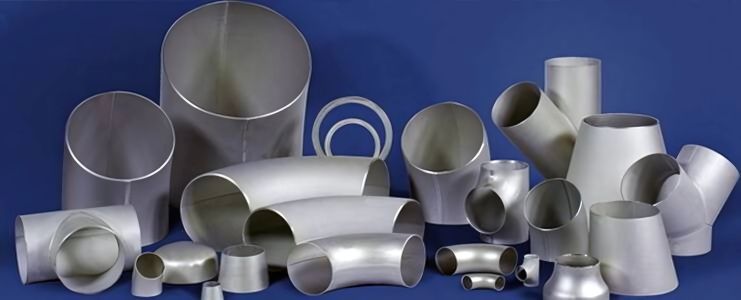

We supply SMO 254 Pipe Fittings such as seamless and welded elbows, tees, crosses, reducers, and pipe caps that are engineered to resist corrosion, acids, and pitting. SMO 254 is an austenitic stainless steel known for its superior strength and corrosion resistance. Due to its high work hardening rate, it is relatively challenging to machine or weld but offers exceptional durability in aggressive environments.
At Arrow Piping Solutions, we employ modern manufacturing technology and precise testing methods to produce pipe fittings that meet global quality standards. Our fittings are widely used in various applications including saltwater handling systems, pulp bleaching plants, food processing units, chemical industries, and heat exchangers.
SMO 254 Pipe Fittings Range:
- SMO 254 45° & 90° Elbows
- SMO 254 Buttweld Crosses
- SMO 254 Pipe Bends in Mumbai
- UNS S31254 SMO Buttweld Pipe Elbows
- ANSI B16.9 SMO 254 Reducers
- SMO 254 Seamless and Welded Pipe Fittings
- SMO 254 Pipe Caps
- ASTM A403 SMO 254 Stainless Steel Pipe Fittings
- Customized Pipe Fittings as per Client Specifications
Key Features:
- Excellent resistance to pitting, crevice corrosion, and stress corrosion cracking
- High strength with good weldability and formability
- Reliable in both acidic and chloride-containing environments
- Applicable in oil & gas, marine, chemical, and heat exchanger applications
- Delivered with third-party test certificates and inspection reports
Specifications
| Specification | ASTM A403 / ASME SA403 |
|---|---|
| Dimension Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.25 | Buttwelding Ends |
| ASME B16.28 | Butt-Welded Short Radius Elbows & Returns Bends |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Seamless Butt Weld Fitting Size | 1/2" - 10" |
| Welded Butt Weld Fitting Size | 1/2" - 48" |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type | Seamless / Welded / Fabricated |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | SIS | AFNOR | EN |
|---|---|---|---|---|---|
| 254 SMO | 1.4547 | S31254 | 2378 | Z1 CNDU 20.18.06Az | X1CrNiMoCuN20-18-7 |
Arrow Piping Solutions maintains rigorous safety and quality documentation—including safety reports, fumigation records, product testing plans, and heat treatment charts. We also keep ready stock of various sizes and shapes to meet urgent requirements, ensuring we can efficiently serve every customer’s needs.
Dimensions
| Nominal Pipe Size (NPS) | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) | Wall Thickness (3) | Centre-to-End (A, B, C, M) | Centre-to-Centre (O) | Back-to-Face (K) | Alignment of Ends (U) | Overall Length (H) | Overall Length (E) |
|---|---|---|---|---|---|---|---|---|---|
| ½ to 2½ | 0.06 -0.03 | 0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 | 0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
Arrow Piping Solutions offers SMO 254 Pipe Fittings that meet stringent dimensional standards. These fittings are available in a wide range of nominal pipe sizes and wall thicknesses to suit diverse piping applications. Each fitting is precision-engineered to ensure perfect alignment, high-pressure tolerance, and ease of installation in demanding industrial systems.
Chemical Composition
| Grade | Ni | Cr | Mo | Cu | N | C | Mn | Si | P | S |
|---|---|---|---|---|---|---|---|---|---|---|
| SMO 254 | 17.5 - 18.5 | 19.5 - 20.5 | 6 - 6.5 | 0.5 - 1 | 0.18 - 0.22 | 0.02 max | 1 max | 0.8 max | 0.03 max | 0.01 max |
Mechanical Properties
| Density | Melting Point (°C) | Tensile Strength (MPa) | Yield Strength (0.2% Offset, MPa) | Elongation (%) |
|---|---|---|---|---|
| 8.0 g/cm3 | 1320 – 1390 | 650 | 300 | 35% |
Application Industries
Arrow Piping Solutions’ SMO 254 Pipe Fittings are widely used in:
- Textile Machinery
- Oil and Gas Industry
- Pulp and Paper Industry
- Power Plants
- Energy Industries
- Furniture
- Pharmaceutical Processing Industry
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber
- Heat Exchanger
- Fluid Piping
- Dairy and Food Processing
