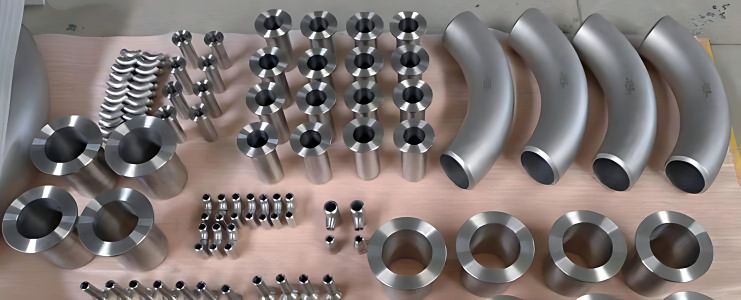

Inconel 625 Pipe Fittings
Arrow Piping Solutions is a trusted manufacturer, supplier, and exporter of Inconel 625 Buttweld Pipe Fittings in India. Our pipe fittings are engineered using high-grade raw materials and designed to perform reliably in extreme environments such as offshore platforms, chemical processing, marine applications, and nuclear plants. Inconel 625 is known for its superior corrosion resistance and excellent mechanical properties at elevated temperatures.
We offer a wide range of Inconel 625 Pipe Fittings including 45° Elbow, 90° Elbow, Tees, Reducers, Caps, Bends, and Crosses, available in seamless, welded, and fabricated types. These fittings conform to international standards such as ASTM B366 / ASME SB366 and dimension standards like ASME B16.9, B16.25, B16.28, and MSS-SP-43. Each fitting is rigorously tested and suitable for high-pressure and high-temperature services.
Arrow Piping Solutions offers Inconel 625 Pipe Fittings in sizes from ½" NB to 48" NB and schedules from Sch 5s to Sch XXS. These fittings are delivered with complete test certifications, HS codes, and packaging details including weight, box count, and documentation support.
| Specification | ASTM B366 / ASME SB366 |
|---|
| Dimension Standard | ASME B16.9, B16.25, B16.28, MSS-SP-43 |
|---|
| Size Range | ½" NB to 48" NB |
|---|
| Seamless Size | ½" NB to 10" NB |
|---|
| Welded Size | ½" NB to 48" NB |
|---|
| Wall Thickness | Sch 5s to Sch XXS |
|---|
| Bending Radius | R = 1D to 10D or Custom |
|---|
| Type | Seamless / Welded / Fabricated |
|---|
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
|---|
| Inconel 625 | N06625 | 2.4856 | NC22DNB4M | NiCr22Mo9Nb | NCF 625 | NA 21 | ХН75МБТЮ | ЭИ602 |
| Grade | C | Mn | Si | S | Al | Ti | Fe | Ni | Cr |
|---|
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | 0.40 max | 0.40 max | 5.0 max | 58.0 min | 20.0 - 23.0 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|
| 8.4 g/cm³ | 1350 °C (2460 °F) | 135,000 Psi / 930 MPa | 75,000 Psi / 517 MPa | 42.5% |
| NPS | O.D. at Bevel | I.D. at End | Wall Thickness | Elbows/Tees A,B,C,M | 180° Return O | Back-to-Face K | Ends U | Reducers H | Caps E |
| ½ to 2½ | 0.06 | 0.03 | ≥ 87.5% nominal | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3½ | 0.06 | 0.06 | ≥ 87.5% nominal | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | ≥ 87.5% nominal | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 | 0.06 | ≥ 87.5% nominal | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 | 0.12 | ≥ 87.5% nominal | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 | 0.19 | ≥ 87.5% nominal | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 | 0.19 | ≥ 87.5% nominal | 0.12 | – | – | – | 0.19 | 0.38 |
| 32 to 48 | 0.25 | 0.19 | ≥ 87.5% nominal | 0.19 | – | – | – | 0.19 | 0.38 |
Arrow Piping Solutions provides high-performance Inconel 625 Pipe Fittings used across a wide range of industries, including:
- Textile Machinery
- Oil and Gas Industry
- Pulp and Paper Industry
- Power Plants
- Energy Industry
- Furniture
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Industry
- Heat Exchangers
- Fluid Piping Systems
- Dairy and Food Processing
