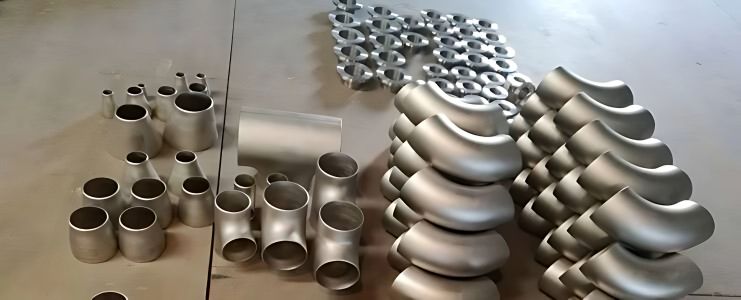

Inconel 601 Pipe Fittings
Arrow Piping Solutions is a well-known manufacturer and supplier of Inconel 601 Pipe Fittings in India. Our product range includes ASME SB366 Inconel® Alloy 601 Pipe Cap, 90° Elbow, 45° Elbow, Reducer, Buttweld Cross, Seamless and Welded Pipe Fittings, Pipe Bends, and more. We supply to industries across Mumbai and India at competitive prices.
About Inconel 601 Pipe Fittings
We manufacture Inconel 601 fittings using high-quality materials known for excellent resistance to heat and corrosion, especially oxidation at high temperatures. These fittings are ideal for demanding applications in the power generation, petrochemical, and refining industries. Our fittings are available in various dimensions and thicknesses, designed to withstand harsh conditions.
Key Features
- High resistance to heat and oxidation
- Excellent mechanical strength and fabrication properties
- Available in seamless, welded, and fabricated types
- Suitable for applications involving heat treatment, chemical processing, and marine use
Inconel 601 Pipe Fittings Equivalent Grades
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
|---|---|---|---|---|---|---|---|---|
| Inconel 601 | N06601 | 2.4851 | NiCr23Fe | NiCr15Fe | NCF 601 | NA 49 | XH60BT | ЭИ868 |
The product is resistant to heat and corrosion, especially to oxidation at high temperatures. It has excellent fabricability, high strength, and good resistance to water corrosion. Additionally, Inconel 601 pipe fittings possess cold and hot forming properties, are easily machinable, and support various processes like welding and heat treatment.
Arrow Piping Solutions designs and develops products suitable for high performance under extreme conditions. All Inconel 601 Pipe Fittings are tested under expert supervision. We proudly serve customers from industries such as oil and gas, petrochemical, engineering, chemical, sugar, power generation, fertilizers, and food processing.
Inconel 601 Pipe Fittings Dimensions
| NPS | O.D. at Bevel | I.D. at End | Wall Thickness | Elbows/Tees A,B,C,M | 180° Return O | Back-to-Face K | Ends U | Reducers H | Caps E |
|---|---|---|---|---|---|---|---|---|---|
| ½ to 2½ | 0.06 -0.03 | 0.03 | ≥ 87.5% nominal | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3½ | 0.06 | 0.06 | ≥ 87.5% nominal | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | ≥ 87.5% nominal | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 | 0.06 | ≥ 87.5% nominal | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 | 0.12 | ≥ 87.5% nominal | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 | 0.19 | ≥ 87.5% nominal | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 | 0.19 | ≥ 87.5% nominal | 0.12 | – | – | – | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 | 0.19 | ≥ 87.5% nominal | 0.19 | – | – | – | 0.19 | 0.38 |
Inconel 601 Pipe Fittings Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
|---|---|---|---|---|---|---|---|---|
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
Inconel 601 Pipe Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|
| 8.1 g/cm³ | 1411 °C (2571 °F) | 550 MPa / 80,000 psi | 205 MPa / 30,000 psi | 30% |
Inconel 600 Pipe Fittings Application Industries
- Textile Machinery
- Oil and Gas Industry
- Pulp and Paper Industry
- Power Plants
- Energy Industries
- Furniture
- Pharmaceutical Processing Industry
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber
- Heat Exchanger
- Fluid Piping
- Dairy and Food Processing
Why Choose Arrow Piping Solutions?
At Arrow Piping Solutions, we aim to deliver superior quality products that can withstand challenging industrial environments. All products undergo rigorous testing and quality checks. We ensure timely delivery, competitive pricing, and 100% customer satisfaction for every order we handle.
