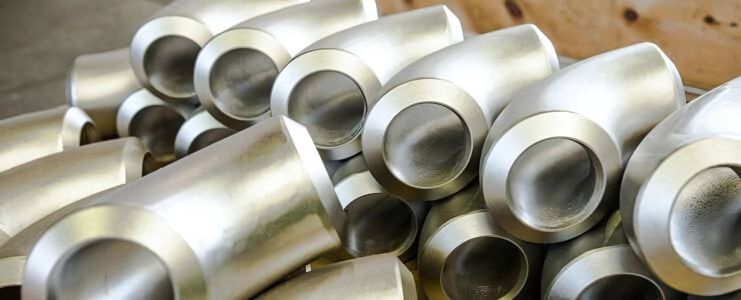

Incoloy 825 Pipe Fittings
Arrow Piping Solutions is a foremost manufacturer, supplier, and exporter of premium-grade ASME SB366 Incoloy® Alloy 825 Pipe Caps, Buttweld Fittings, 45° Elbows, Reducers, 90° Elbows, and other ANSI B16.9 Incoloy 825 Buttweld Pipe Fittings in India.
Our comprehensive range of Incoloy 825 Pipe Fittings offers outstanding resistance to corrosion and acid attack, making them ideal for water‐based coolant systems, grinding, spinning, milling, and marine combustion applications. These fittings are engineered to perform reliably under harsh conditions.
Product Range Includes:
- ASME SB366 Incoloy 825 Pipe Caps
- Incoloy 825 Buttweld Fittings
- Incoloy 825 45° Elbows
- Incoloy 825 Reducers
- Incoloy 825 90° Elbows
- ANSI B16.9 Incoloy 825 Buttweld Crosses
- Incoloy 825 Pipe Bends in Mumbai
- Buttweld End Connections per ASME B16.25
Key Benefits:
- Exceptional corrosion and acid resistance
- High nickel content for stress‐corrosion cracking resistance
- Reliable performance in marine and chemical environments
- Leakage‐free sealing for fluid transportation
- Full documentation including raw material and test certificates
| Specification | ASTM B366 / ASME SB366 |
|---|
| Dimension Standards | ASME/ANSI B16.9, B16.25, B16.28, MSS SP‑43 |
|---|
| Size Range | ½" NB to 24" NB (Sch 5S – XXS) |
|---|
| Seamless Butt Weld Sizes | ½" – 10" |
|---|
| Welded Butt Weld Sizes | ½" – 48" |
|---|
| Bending Radii | 1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
|---|
| Type | Seamless / Welded / Fabricated |
|---|
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
|---|
| Incoloy 825 | N08825 | 2.4858 | NC22DNB4M | NiCr22Mo9Nb | NCF 825 | NA 21 | ЭП703 / ЭИ602 | — |
| NPS | O.D. at Bevel | I.D. at End | Wall Thickness |
Elbows/Tees A,B,C,M | 180° Return O | Back‑to‑Face K | Ends U | Reducers H | Caps E |
| ½–2½" | ±0.03" | ±0.03" | ≥87.5% nominal | 0.06" | 0.25" | 0.25" | 0.03" | 0.06" | 0.12" |
| 3–3½" | 0.06" | 0.06" | ≥87.5% nominal | 0.06" | 0.25" | 0.25" | 0.03" | 0.06" | 0.12" |
| 4" | 0.06" | 0.06" | ≥87.5% nominal | 0.06" | 0.25" | 0.25" | 0.03" | 0.06" | 0.12" |
| 5–8" | ±0.06" | 0.06" | ≥87.5% nominal | 0.06" | 0.25" | 0.25" | 0.03" | 0.06" | 0.25" |
| 10–18" | ±0.12" | ±0.12" | ≥87.5% nominal | 0.09" | 0.38" | 0.25" | 0.06" | 0.09" | 0.25" |
| 20–24" | ±0.19" | ±0.19" | ≥87.5% nominal | 0.09" | 0.38" | 0.25" | 0.06" | 0.09" | 0.25" |
| Grade | C | Mn | Si | S | Al | Ti | Fe | Ni | Cr |
|---|
| Incoloy 825 | ≤0.10% | ≤0.50% | ≤0.50% | ≤0.015% | ≤0.40% | ≤0.40% | ≤5.0% | ≥58.0% | 20.0–23.0% |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|
| 8.4 g/cm³ | 1350 °C (2460 °F) | 135,000 psi / 930 MPa | 75,000 psi / 517 MPa | 42.5% |
Arrow Piping Solutions’ Incoloy 825 Pipe Fittings serve critical roles in:
- Textile Machinery
- Oil & Gas Industry
- Pulp & Paper Industry
- Power Plants & Energy
- Furniture & Appliances
- Pharmaceutical Processing
- Marine Systems
- Modern Architecture
- Water Treatment Projects
- Synthetic Fiber Production
- Heat Exchangers & Fluid Piping
- Dairy & Food Processing
