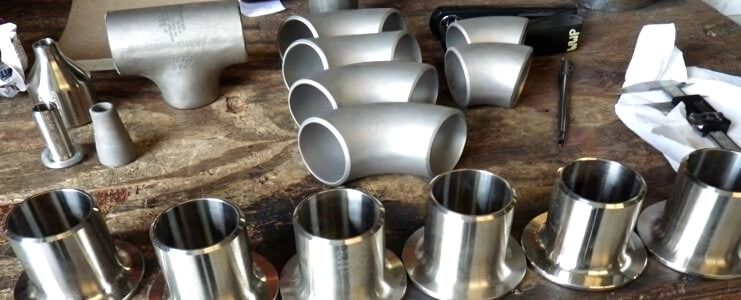

Incoloy 800 / 800H / 800HT Pipe Fittings
Arrow Piping Solutions is a reputed manufacturer, supplier, and exporter of ASME SB366 Incoloy® Alloy 800H Pipe Cap, Incoloy 800HT Buttweld Fittings, Incoloy 800 45° Elbow, Incoloy 800H Reducer, Incoloy 800HT 90° Elbow, and other ANSI B16.9 Incoloy 800 Buttweld Pipe Fittings in India.
We offer a wide range of Incoloy 800/800H/800HT Pipe Fittings that provide excellent oxidation and corrosion resistance, even at extreme temperatures. These fittings are ideal for applications in chemical and petrochemical industries, heat treatment plants, industrial furnaces, and more.
Product Range Includes:
- Incoloy 800HT Pipe Bend in Mumbai
- Incoloy® 800 Pipe Fittings Price List in India
- Incoloy 800H Pipe Elbow Suppliers
- Incoloy 800 Seamless Pipe Fittings
- Incoloy 800 Buttweld Cross Manufacturers
- Incoloy 800H Welded Pipe Fittings Exporter in India
Key Features:
- Excellent high-temperature strength and creep resistance
- Corrosion resistance in acidic and oxidizing environments
- High durability and stability under prolonged exposure
- Suitable for heat exchanger systems, chemical processing, boiler components, and furnace applications
| Specification | ASTM B366 / ASME SB366 |
|---|
| Dimension Standard | ASME B16.9, B16.28, MSS-SP-43 |
|---|
| Size Range | ½" NB to 24" NB |
|---|
| Seamless Size | ½" NB to 10" NB |
|---|
| Welded Size | ½" NB to 48" NB |
|---|
| Wall Thickness | Sch 5s to Sch XXS |
|---|
| Bending Radius | 1D to 10D or Custom |
|---|
| Type | Seamless / Welded / Fabricated |
|---|
| STANDARD | UNS | WNR | AFNOR | EN | JIS | BS | GOST | OR |
|---|
| Incoloy 800 | N08800 | 1.4876 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800 | NA 15 | ЭИ670 | XH32T |
| Incoloy 800H | N08810 | 1.4958 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800H | NA 15(H) | ЭИ670 | XH32T |
| Incoloy 800HT | N08811 | 1.4959 | - | X8NiCrAlTi32-21 | NCF 800HT | NA 15(HT) | ЭИ670 | XH32T |
We take precaution in packing it, which is usually done with wooden crates or at times, maybe carton boxes as well. We deliver the product on time all around the world. We strive to maintain the intact product while performing shipment. We ensure not to cause any damage to the product. Here, we pack the product in a suitable material or cover it with a plastic paper.
| NPS | O.D. at Bevel | I.D. at End | Wall Thickness | Elbows/Tees A,B,C,M | 180° Return O | Back-to-Face K | Ends U | Reducers H | Caps E |
| ½ to 2½ | 0.06 | 0.03 | ≥ 87.5% nominal | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3½ | 0.06 | 0.06 | ≥ 87.5% nominal | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | ≥ 87.5% nominal | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 | 0.06 | ≥ 87.5% nominal | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 | 0.12 | ≥ 87.5% nominal | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 | 0.19 | ≥ 87.5% nominal | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 | 0.19 | ≥ 87.5% nominal | 0.12 | – | – | – | 0.19 | 0.38 |
| 32 to 48 | 0.25 | 0.19 | ≥ 87.5% nominal | 0.19 | – | – | – | 0.19 | 0.38 |
| Grade | C | Mn | Si | S | Al | Ti | Fe | Ni | Cr | Cu |
|---|
| Incoloy 800 | 0.1 max | 1.5 max | 1.0 max | 0.015 max | 0.15-6.0 | 0.15-0.60 | 39.5 min | 30.0-35.0 | 19.0-23.0 | 75 max |
| Incoloy 800H | 0.05-0.10 max | 1.5 max | 1.0 max | 0.015 max | 0.15-6.0 | 0.15-0.60 | 39.5 min | 30.0-35.0 | 19.0-23.0 | 75 max |
| Incoloy 800HT | 0.6-0.10 max | 1.5 max | 1.0 max | 0.015 max | 0.85-6.0 | 0.25-0.60 | 39.5 min | 30.0-35.0 | 19.0-23.0 | 75 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|
| 7.94 g/cm3 | 1350-1400 ℃ | Psi - 75,000 , MPa -520 | Psi - 30,000 , MPa - 205 | 30-35% |
Arrow Piping Solutions provides high-performance Incoloy 800 Pipe Fittings used across a wide range of industries, including:
- Textile Machinery
- Oil and Gas Industry
- Pulp and Paper Industry
- Power Plants
- Energy Industry
- Furniture
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Industry
- Heat Exchangers
- Fluid Piping Systems
- Dairy and Food Processing
