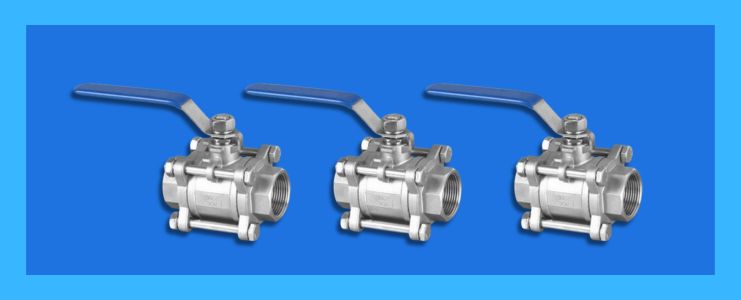

Inconel 625 Ball Valves
Arrow Piping Solutions is a trusted supplier and manufacturer of high-performance Inconel 625 Ball Valves in India. Designed for extreme environments, these valves are crafted using A494 CW6MC grades, ensuring excellent corrosion resistance and mechanical integrity at both high and low temperatures. Our Inconel Ball Valves are highly durable and ideal for petrochemical, oil & gas, cryogenic, and marine applications.
Despite being among the less commonly used valve types, Inconel 625 Ball Valves offer outstanding shutoff and control properties. These valves resist corrosion from harsh chemicals and extreme temperatures, maintaining functionality even after extended periods of disuse. Arrow Piping Solutions offers these ball valves in manual, electric, and pneumatic configurations to suit diverse application requirements.
Arrow Piping Solutions offers Inconel 625 Ball Valves in a variety of sizes and pressure ratings. Available from 1/2" to 4", these valves are manufactured with NPT, BSPP, and other thread types. They are engineered as per ANSI, ASTM, and ASME standards, ensuring zero leakage and maximum safety in all installations.
Inconel 625 Ball Valve Specifications
| Material Grades | Inconel 625 (UNS N06625) |
|---|---|
| Standards | ASTM A494 CW6MC, ASME B16.34 |
| Size Range | 1/2" to 4" (DN25–DN200) |
| Thread Types | NPT, BSPP, G |
| Connection Types | Flanged, Welded, Socket, Threaded, Clamped |
| Operation | Manual, Electric Actuator, Pneumatic |
| Pressure Ratings | Class 2500: 6000 psig / Class 4500: 10000 psig |
| Seal Options | PPL, PTFE, Graphite |
| Leakage Rate | Soft Seal: Zero Leakage, Hard Seal ≤ Rated Flow 10⁻⁵ |
| Function Types | 2-Way, 3-Way, 4-Way, 5-Way, Diverter |
| Manufacturing Method | Forged Bar Stock |
| Design Standards | BS 1868, ASME B16.10, ASME B16.5 |
| Test & Inspection | API 6D / API 598 / MSS SP-55 / MSS SP-25 |
Inconel Ball Valve Material Grades
| Alloy | UNS Number | Forging | Casting | Barstock |
|---|---|---|---|---|
| Alloy 800 | N08800 | B564 N08810 | - | B408 N08800 |
| Alloy 825 | N08825 | - | - | B425 N08825 |
| Alloy 625 | N06625 | B564 N06625 | A494 CW6MC | B446 N06625 |
Types of Inconel 625 Ball Valves
- Floating Manual Ball Valve (DN15–DN100)
- 2PC, 3PC Forged Ball Valve with Trunnion Design
- Mini Instrumentation Ball Valve 1/4" to 1/2"
- Swagelok-Type One-Piece Instrument Ball Valves
- Self-Closing Pneumatic Groove Ball Valves
- Lockable Female Thread Ball Valve
- Fire-Safe API 607 Rated Ball Valves
Application Industries
Arrow Piping Solutions supplies Inconel 625 Ball Valves to industries including:
- Oil & Gas
- Petrochemical
- Marine Engineering
- Cryogenics
- Pharmaceuticals
- Food & Beverage
- Dairy and Cosmetic Industry
- Power Plants
- Water Waste Management
- High-Pressure Fluid Systems
- Instrumentation Systems
- Offshore Platforms
- Chemical Processing
- District Heating Systems
As a reliable alternative to Swagelok & Parker, our Os-Lok series of Inconel 625 Ball Valves are leak-free and tested under rigorous conditions for oil, water, air, and inert gas applications. Trust Arrow Piping Solutions for quality valves delivered on time from our Mumbai port.
