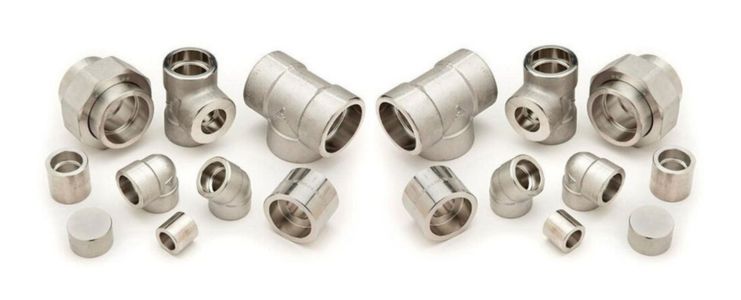

Titanium Gr 5 Forged Fittings
Arrow Piping Solutions is a renowned manufacturer, supplier, and exporter of Titanium Gr 5 Forged Fittings in India. These fittings are known for their high strength, excellent corrosion resistance, and reliability in extreme conditions. Our product range includes Elbows, Couplings, Tees, Crosses, and other configurations tailored for critical applications across industries.
Titanium Grade 5 is widely recognized for its high tensile strength, creep resistance, and superb performance at elevated temperatures. Our Titanium Gr 5 Forged Fittings are leak-proof, precisely engineered, and manufactured using modern machinery and strict quality control protocols to ensure superior finish, performance, and dimensional accuracy.
Titanium Gr 5 Forged Fittings Range:
- Titanium Gr 5 Socketweld 45° Elbow
- Titanium Alloy Gr 5 Forged Coupling
- Titanium Grade 5 Hex Bushing
- ASTM B381 Titanium Gr 5 Threaded Union
- Titanium Gr 5 High Pressure Forged Pipe Fittings
- Titanium Gr 5 Plug
- Titanium Gr 5 Screwed Half Coupling
- Titanium Alloy Gr 5 Threaded Elbow
- Titanium Gr 5 S/W Reducing Tee
- Titanium Gr 5 90° Socket Weld Cross
- Titanium Gr 5 Threaded Cap
Specifications
| Specification | ASTM B381 / ASME SB381 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| STANDARD | UNS | DIN |
|---|---|---|
| Titanium Gr 5 | N56400 | 3.7165 |
We understand the importance of packing and shipping of the Fittings. Hence, we use suitable quality material for packing to avoid damage throughout the transit. We use wooden boxes, crates, carton boxes and wooden pallet to cover Titanium Gr 5 Forged Fitting. Depending upon the location of delivery, we choose a fast and convenient way of transportation. By following all national and international standards, we are strictly supervising Fittings at different stages. We are providing excellence to numerous industrial sectors to make them able to complete any critical operation comfortably and efficiently.
Chemical Composition of Titanium Gr 5 Forged Fittings
| Grade | Ti | Fe | O | Al | V |
|---|---|---|---|---|---|
| Ti Gr.5 | 90 min | 0.25 max | 0.2 max | 6 min | 4 min |
Mechanical Properties of Titanium Gr 5 Forged Fittings
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|---|
| Titanium Gr. 5 | 4.43 g/cm³ | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Manufacturing Standards
| ASTM B381 – ASME SB381 | Standard Specification for Titanium Forged Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Low Pressure Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Screwed & Socket-welding Fittings for Petroleum Industry |
Applications of Titanium Gr 5 Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission Industry
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
- Furniture Industry
Arrow Piping Solutions ensures safe and timely delivery of Titanium Gr 5 Forged Fittings using secure packaging such as wooden crates, pallets, or cartons. We provide complete documentation and testing certificates with each order. Reach out to us for bulk inquiries or custom requirements — we are ready to serve you with precision and efficiency.
