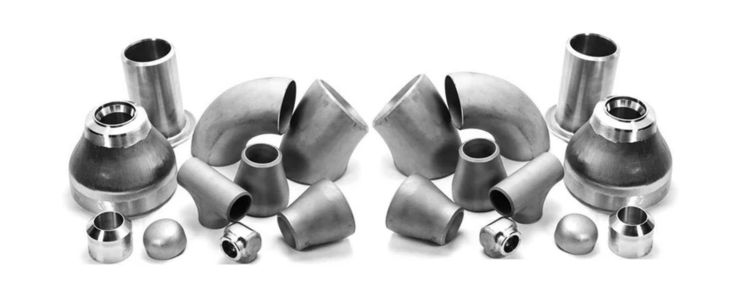

Titanium Gr 2 Forged Fittings
Arrow Piping Solutions is a reputed manufacturer and supplier of high-performance Titanium Gr 2 Forged Fittings in India. Our offerings include Elbows, Couplings, Tees, and Crosses, engineered for durability, tight sealing, and leak-proof connections. Manufactured to national and international standards, our fittings ensure high precision and reliability.
We utilize modern machinery and advanced manufacturing technology to ensure each fitting meets exact specifications. With Titanium Grade 2 being lightweight, corrosion-resistant, and highly formable, these fittings are perfect for various industrial applications. We also offer custom configurations to match unique operational requirements.
Titanium Gr 2 Forged Fittings Range:
- Titanium Gr 2 Socketweld 45° Elbow
- Titanium Alloy Gr 2 Forged Coupling
- Titanium Grade 2 Hex Bushing
- ASTM B381 Titanium Gr 2 Threaded Union
- Titanium Gr 2 High Pressure Forged Pipe Fittings
- Titanium Gr 2 Plug
- Titanium Gr 2 Screwed Half Coupling
- Titanium Alloy Gr 2 Threaded Elbow
- Titanium Gr 2 S/W Reducing Tee
- Titanium Gr 2 90° Socket Weld Cross
- Titanium Gr 2 Threaded Cap
Specifications
| Specification | ASTM B381 / ASME SB381 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| STANDARD | UNS | DIN |
|---|---|---|
| Titanium Gr 2 | R50400 | 3.7035 |
We are not only focusing on quality, but we are also focusing on on-time delivery. For this, we use various ways to pack Fitting, such as Wooden boxes, crates, and carton boxes to avoid damage or scratches. By choosing the fastest way of delivery, we deliver orders within the decided time. We are happy to serve our excellence to our clients and also to welcome new clients.
Chemical Composition of Titanium Gr 2 Forged Fittings
| Grade | C | N | O | H | Ti | Fe |
|---|---|---|---|---|---|---|
| Ti Gr.2 | 0.10 max | 0.03 max | 0.25 max | 0.015 max | Balance | 0.30 max |
Mechanical Properties of Titanium Gr 2 Forged Fittings
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|---|
| Titanium Gr. 2 | 4.5 g/cm³ | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
Manufacturing Standards
| ASTM B381 – ASME SB381 | Standard Specification for Titanium Forged Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Low Pressure Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Screwed & Socket-welding Fittings for Petroleum Industry |
Applications of Titanium Gr 2 Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission Industry
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
- Furniture Industry
Arrow Piping Solutions ensures timely delivery of Titanium Gr 2 Forged Fittings with secure packaging using wooden crates or cartons. All products are tested and come with quality certifications. We welcome inquiries for bulk orders and custom solutions with competitive pricing and fast dispatch.
