Cupro Nickel 90 / 10 Forged Fittings


Arrow Piping Solutions is a reliable manufacturer, supplier, and exporter of high-quality Cupro Nickel 90/10 Forged Fittings. Made from an alloy containing 90% Copper and 10% Nickel, these fittings are known for superior corrosion resistance, mechanical strength, and long-lasting performance across various industries.


We offer Cu-Ni 90/10 Forged Fittings in different types, grades, and custom specifications. These fittings feature excellent tensile strength, weldability, and corrosion resistance, making them suitable for high-temperature and demanding operations. Our solutions are tailored to meet customer requirements with a focus on durability and precision.

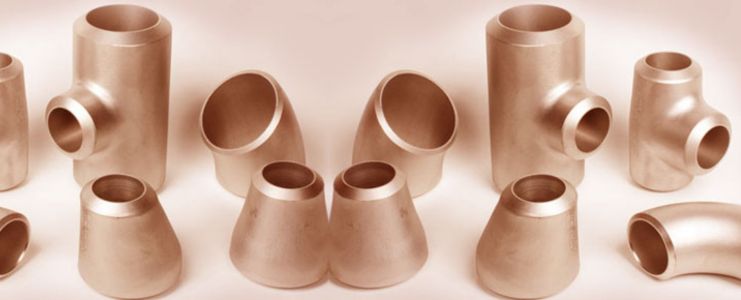

Copper Nickel 90 Forged Fittings

Cupro Nickel 90/10 Forged Fittings Range:


  • Cu-Ni 90/10 Hex Bushing
  • ASTM B467 Cupro Nickel 90/10 Threaded Union
  • CuNi 90/10 High Pressure Forged Pipe Fittings
  • Copper Nickel Alloy 90/10 Plug
  • Cupro Nickel 90/10 Socketweld 45° Elbow
  • Copper Nickel 90/10 Forged Coupling
  • Cu-Ni 90/10 90° Socket Weld Cross
  • Copper Nickel 90/10 Screwed Half Coupling
  • Cu-Ni Alloy 90/10 Threaded Elbow
  • Cupro Nickel 90/10 S/W Reducing Tee
  • Cu-Ni Gr 90/10 Threaded Cap

Specifications

SpecificationASTM B467 / ASME SB467
Dimension StandardsASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size Range1/8" NB to 4" NB
TypeSocketweld, Screwed-Threaded (NPT/PT)
Pressure RatingThreaded: 2000 / 3000 / 6000 LBS
Socketweld: 3000 / 6000 / 9000 LBS

Equivalent Grades

STANDARDUNSDIN
Cupro Nickel 90/10C706002.0872

Arrow Piping Solutions ensures high-quality packaging and fast delivery using wooden crates, cartons, and eco-friendly wraps to ensure the safe arrival of Cu-Ni 90/10 Forged Fittings at your location.

Chemical Composition of Cupro Nickel 90/10 Forged Fittings

GradeCuMnPbNiFeZn
Cu-Ni 90/1088.6 min1.0 max0.05 max9-111.8 max1.0 max

Mechanical Properties of Cupro Nickel 90/10 Forged Fittings

DensityMelting PointTensile StrengthYield Strength (0.2% Offset)Elongation
0.323 lb/in³ at 68°F2260°F50000 psi20000 psi30%

Manufacturing Standards

ASTM B564 – ASME SB564Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9Factory-Made Wrought Buttwelding Fittings
ASME B16.11Socket Welding and Threaded Forged Fittings
MSS SP-43Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
MSS SP-95Swage(d) Nipples and Bull Plugs
BS3799Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry

Latest Price List of Cupro Nickel 90/10 Forged Fittings

TypeMaterialSize (mm)Weight (kg)(INR/kg)(USD/kg)
Forged ElbowsCupro Nickel Alloy 90/106–500.05–1.2800–1000$10–$15
Forged TeesCupro Nickel Alloy 90/106–500.05–1.2900–1100$12–$18
Forged CouplingsCupro Nickel Alloy 90/106–500.05–1.2850–1050$11–$16
Forged CapsCupro Nickel Alloy 90/106–500.05–1.2750–950$9–$14
Forged CrossCupro Nickel Alloy 90/106–500.05–1.2950–1150$13–$20
Forged UnionsCupro Nickel Alloy 90/106–500.05–1.2880–1080$12–$18

Applications of Cupro Nickel 90/10 Forged Fittings

  • Chemical Industry
  • Petrochemical Industry
  • Marine & Power Transmission Industry
  • Power Plants
  • Energy Industries
  • Pharmaceutical Processing
  • Modern Architecture
  • Home Appliances
  • Water Waste Projects
  • Synthetic Fiber Manufacturing
  • Heat Exchangers
  • Fluid Piping
  • Dairy and Food Processing
  • Furniture Industry

Arrow Piping Solutions provides premium Cu-Ni 90/10 Forged Fittings with precision engineering, prompt delivery, and complete documentation. Contact us today for competitive pricing and custom manufacturing solutions.
