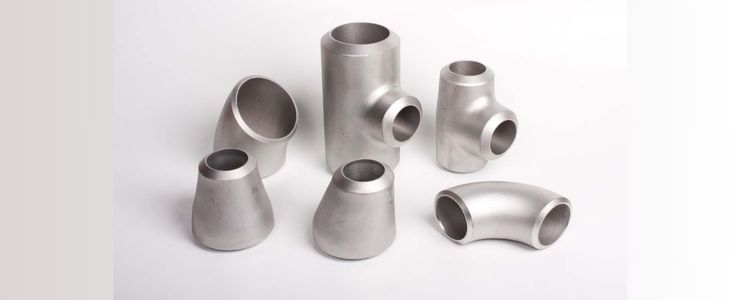

Nickel 201 Forged Fittings
Arrow Piping Solutions is a manufacturer, stockist, supplier, and exporter of superior quality Nickel 201 Forged Fittings. Nickel 201 is a commercially pure wrought nickel alloy with a maximum carbon content of 0.02%. This alloy provides excellent mechanical properties and thermal/electrical conductivity across a wide temperature range. It is highly corrosion-resistant, especially in reducing environments, and offers excellent workability and formability.
Our Nickel 201 Forged Fittings are fabricated using premium raw materials and modern manufacturing technologies. These fittings exhibit features such as a smooth finish, robust construction, easy installation, long service life, and high strength. We offer them in various sizes, shapes, specifications, and custom dimensions to meet the diverse industrial requirements of our clients.
Nickel 201 Forged Fittings Range:
- Alloy 201 Forged Coupling
- ASTM B564 Alloy 201 Threaded Union
- Alloy 201 Hex Bushing
- 201 Nickel Socketweld 45° Elbow
- Nickel 201 High Pressure Forged Pipe Fittings
- Nickel 201 Plug
- Alloy 201 90° Socketweld Cross
- Nickel 201 Screwed Half Coupling
- Nickel Alloy 201 Threaded Elbow
- Nickel 201 Socketweld Reducing Tee
- Nickel 201 Threaded Cap
Specifications
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| Standard | UNS | WNR. | AFNOR | EN | JIS | GOST | BS |
|---|---|---|---|---|---|---|---|
| Nickel 201 | N02201 | 2.4068 | - | LC-Ni 99 | NW 2201 | НП-2 | NA 12 |
Each Nickel 201 Forged Fitting from Arrow Piping Solutions is tested under stringent quality parameters. Our quality assurance process includes chemical, mechanical, hardness, tensile, intergranular corrosion, and PMI testing. All test reports and certificates are provided along with the product shipment, ensuring complete traceability and customer confidence.
Chemical Composition (%):
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
|---|---|---|---|---|---|---|---|
| Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
Mechanical Properties
| Density | 8.9 g/cm³ |
|---|---|
| Melting Point | 1446 °C (2635 °F) |
| Tensile Strength | 462 MPa / 67,000 psi |
| Yield Strength (0.2% Offset) | 148 MPa / 21,500 psi |
| Elongation | 45% |
Manufacturing Standards
| ASTM B564 – ASME SB564 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Low Pressure Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Screwed & Socket-welding Fittings for Petroleum Industry |
Applications of Nickel 201 Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission Industry
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
- Furniture Industry
Arrow Piping Solutions delivers premium Nickel 201 Forged Fittings with reliable packaging, timely delivery, and complete documentation. Contact us now for the best pricing, custom sizes, and fast quotes tailored to your industry’s needs.
