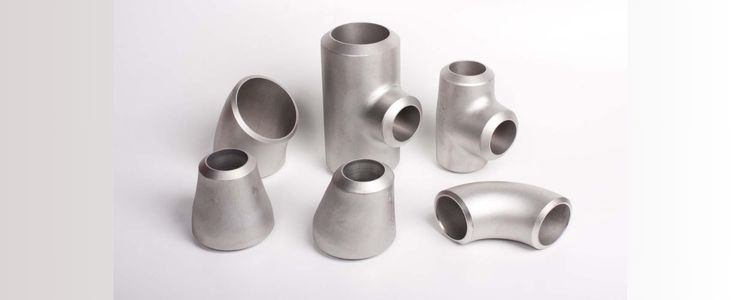

Nickel 200 Forged Fittings
Arrow Piping Solutions offers a wide range of high-quality Nickel 200 Forged Fittings to meet the diverse requirements of customers across industries. We manufacture these fittings in various sizes, shapes, specifications, and grades, and also customize them to suit project-specific needs. Nickel 200 is known for its excellent resistance to corrosion, especially in acidic and alkaline environments.
Our Nickel 200 Forged Fittings are known for their superior mechanical properties, robust construction, excellent surface finish, and long service life. Manufactured using premium raw materials and advanced techniques, these fittings offer superior workability and durability. Our team of experienced professionals ensures every product is rigorously inspected for quality at every stage of production.
Nickel 200 Forged Fittings Range:
- Alloy 200 Forged Coupling
- ASTM B564 Alloy 200 Threaded Union
- Alloy 200 Hex Bushing
- 200 Nickel Socketweld 45° Elbow
- Nickel 200 High Pressure Forged Pipe Fittings
- Nickel 200 Plug
- Alloy 200 90° Socketweld Cross
- Nickel 200 Screwed Half Coupling
- Nickel Alloy 200 Threaded Elbow
- Nickel 200 Socketweld Reducing Tee
- Nickel 200 Threaded Cap
Specifications
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| Standard | UNS | WNR. | AFNOR | EN | JIS | GOST | BS |
|---|---|---|---|---|---|---|---|
| Nickel 200 | N02200 | 2.4066 | N-100M | Ni 99.2 | NW 2200 | НП-2 | NA 11 |
Each Nickel 200 Forged Fitting is inspected thoroughly by our quality control team to ensure that they meet international standards. We conduct chemical, mechanical, hardness, tensile, and PMI testing to ensure top-notch quality. We provide all necessary documents and certificates with our shipments. With a focus on precision and performance, Arrow Piping Solutions delivers fittings with exceptional finish, tight tolerances, and guaranteed reliability.
Chemical Composition (%):
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
|---|---|---|---|---|---|---|---|
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
Mechanical Properties
| Density | 8.9 g/cm³ |
|---|---|
| Melting Point | 1446 °C (2635 °F) |
| Tensile Strength | 462 MPa / 67,000 psi |
| Yield Strength (0.2% Offset) | 148 MPa / 21,500 psi |
| Elongation | 45% |
Manufacturing Standards
| ASTM B564 – ASME SB564 | Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Low Pressure Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Screwed & Socket-welding Fittings for Petroleum Industry |
Applications of Nickel 200 Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
- Furniture Industry
Arrow Piping Solutions delivers world-class Nickel 200 Forged Fittings with secure packaging and on-time delivery. Every product is accompanied by complete test certifications. Contact us today to get the best prices and customized solutions tailored to your project’s needs.
