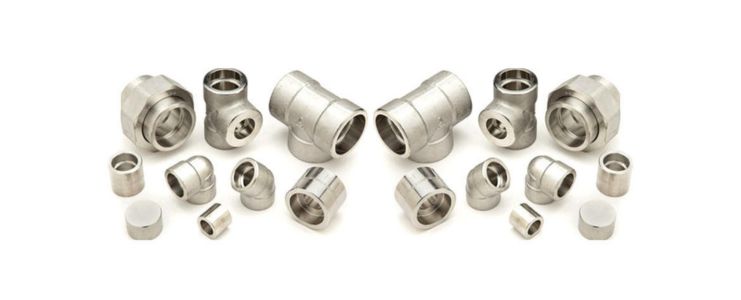

Monel K500 Forged Fittings
Arrow Piping Solutions is a trusted manufacturer and distributor of premium-quality Monel K500 Forged Fittings in India. We offer a complete range of Monel K500 forged components in various sizes, shapes, and dimensions, strictly adhering to international quality standards. Monel K500 is a Nickel-Copper alloy enhanced with titanium and aluminum, offering superior resistance to corrosion, especially in high-temperature and high-pressure environments.
Our Monel K500 Forged Fittings are manufactured using high-quality raw materials and advanced fabrication technologies. These fittings provide exceptional tensile strength, easy installation, and long operational life, making them ideal for applications in aggressive environments such as seawater, chemical plants, and oil refineries.
Monel K500 Forged Fittings Range:
- Alloy K500 Forged Coupling
- ASTM B564 Alloy K500 Threaded Union
- Alloy K500 Hex Bushing
- K500 Monel Socketweld 45° Elbow
- Monel K500 High Pressure Forged Pipe Fittings
- Monel K500 Plug
- Alloy K500 90° Socketweld Cross
- Monel K500 Screwed Half Coupling
- Monel Alloy K500 Threaded Elbow
- Monel K500 Socketweld Reducing Tee
- Monel K500 Threaded Cap
Specifications
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| Standard | UNS | WNR. |
|---|---|---|
| Monel K500 | N05500 | 2.4375 |
Arrow Piping Solutions offers the highest quality Monel K500 Forged Fittings suitable for a wide range of industries, including petrochemical, marine, paper & pulp, oil & gas, pharmaceuticals, and food processing. Our strict quality control ensures every fitting meets international standards and is completely leak-proof and corrosion-resistant. We offer flexible packaging and on-time delivery to meet customer-specific requirements.
Chemical Composition (%):
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
|---|---|---|---|---|---|---|---|
| Monel K500 | 0.25 max | 1.5 max | 0.50 max | 0.010 max | 27.00–33.00 | 0.5–2.0 | 63.00 min |
Mechanical Properties
| Density | 8.44 g/cm³ |
|---|---|
| Melting Point | 1350 °C (2460 °F) |
| Yield Strength (0.2% Offset) | 1100 MPa / 160,000 psi |
| Tensile Strength | 790 MPa / 115,000 psi |
| Elongation | 20% |
Manufacturing Standards
| ASTM B564 – ASME SB564 | Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Low Pressure Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Screwed & Socket-welding Fittings for Petroleum Industry |
Applications of Monel K500 Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
- Furniture Industry
Arrow Piping Solutions offers competitively priced Monel K500 Forged Fittings with comprehensive documentation, including test certificates. Each product is securely packaged to avoid damage during transit and delivered promptly at your location. Contact us today for quotations tailored to your project requirements.
