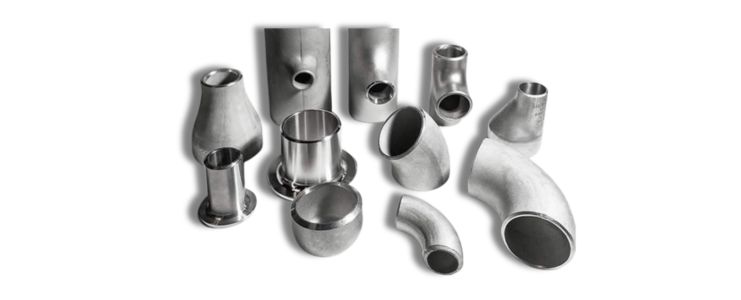

Monel 400 Forged Fittings
Arrow Piping Solutions is one of the leading manufacturers and exporters of Monel 400 Forged Fittings in India, offering these high-performance components in standard and customized dimensions. Monel 400 is a copper-nickel alloy that contains iron, manganese, carbon, and silicon, offering excellent strength, thermal stability, and superior resistance to seawater and steam, even at elevated temperatures.
Our Monel 400 Forged Fittings are manufactured using the finest raw materials and advanced machinery. Known for their high tensile strength, robust construction, and long operational life, these fittings offer exceptional corrosion resistance and are ideal for stress corrosion environments. They are widely used in harsh industrial applications, especially those involving seawater and acidic conditions.
Monel 400 Forged Fittings Range:
- Alloy 400 Forged Coupling
- ASTM B564 Alloy 400 Threaded Union
- Alloy 400 Hex Bushing
- 400 Monel Socketweld 45° Elbow
- Monel 400 High Pressure Forged Pipe Fittings
- Monel 400 Plug
- Alloy 400 90° Socketweld Cross
- Monel 400 Screwed Half Coupling
- Monel Alloy 400 Threaded Elbow
- Monel 400 Socketweld Reducing Tee
- Monel 400 Threaded Cap
Specifications
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| Standard | UNS | WNR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| Monel 400 | N04400 | 2.4360 | NU-30M | NiCu30Fe | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 |
We export most exceptional quality Monel 400 Forged Fittings which is extensively useful in various industries like, Chemical industry, oil and gas processing, petrochemicals, paper and pulp industry, power generation, heat exchangers and food processing industry. Our quality team ensures that each product undergoes all types of quality tests to ensure high efficiency of products. Our experts strictly supervise Monel 400 Forged Fittings at each stage of the production process. We offer numerous ways of packaging and shipping of the products as per the requirements of our customers. We ensure to provide damage-free and on-time delivery.
Chemical Composition (%):
| Grade | Ni | C | Al | Mn | Si | Fe | Cu | S |
|---|---|---|---|---|---|---|---|---|
| Monel 400 | 63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max |
Mechanical Properties
| Density | 8.8 g/cm³ |
|---|---|
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | 550 MPa / 80,000 psi |
| Yield Strength (0.2% Offset) | 240 MPa / 35,000 psi |
| Elongation | 40% |
Manufacturing Standards
| ASTM B564 – ASME SB564 | Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Low Pressure Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Screwed & Socket-welding Fittings for Petroleum Industry |
Applications of Monel 400 Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
- Furniture Industry
Arrow Piping Solutions delivers premium-grade Monel 400 Forged Fittings at competitive prices. Each fitting undergoes rigorous quality checks and comes with complete certifications. Contact us today to get custom quotes and fast delivery options tailored to your project requirements.
