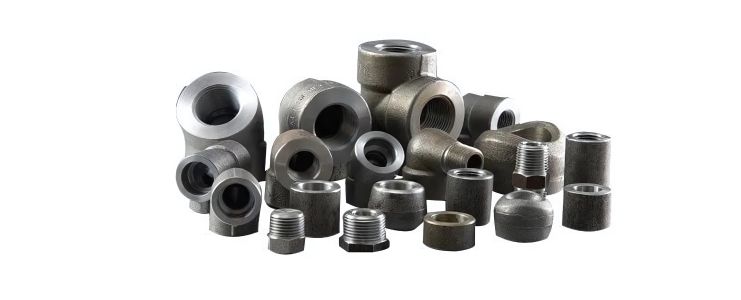

Incoloy 800H / 800HT Forged Fittings
Arrow Piping Solutions is a leading manufacturer, stockist, and exporter of superior quality Incoloy 800H / 800HT Forged Fittings in a wide variety of sizes, thicknesses, and specifications to suit industrial requirements. These fittings are crafted from nickel-chromium alloys designed for excellent strength, oxidation resistance, and high-temperature performance, particularly in stress and creep rupture conditions.
We manufacture Incoloy 800H / 800HT Forged Fittings using premium raw materials to ensure high tensile strength, outstanding oxidation resistance, dimensional accuracy, excellent surface finish, and long working life. These fittings retain superior mechanical and chemical properties under extreme environments and pressure conditions.
Incoloy 800H / 800HT Forged Fittings Range:
- Alloy 800H / 800HT Forged Coupling
- ASTM B564 Alloy 800H/800HT Threaded Union
- Alloy 800H / 800HT Hex Bushing
- 800H Incoloy Socketweld 45° Elbow
- Incoloy 800HT High Pressure Forged Pipe Fittings
- Incoloy 800H Plug
- Alloy 800H/800HT 90° Socketweld Cross
- Incoloy 800H Screwed Half Coupling
- Incoloy Alloy 800HT Threaded Elbow
- Incoloy 800H/800HT Socketweld Reducing Tee
- Incoloy 800H Threaded Cap
Specifications
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| Standard | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
|---|---|---|---|---|---|---|---|---|
| 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | XH32T |
Arrow Piping Solutions ensures consistent quality and safe packaging with a prompt delivery system to meet customer expectations across domestic and international markets.
Chemical Composition (%):
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
|---|---|---|---|---|---|---|---|---|---|---|
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
Mechanical Properties
| Density | 7.94 g/cm³ |
|---|---|
| Melting Point | 1385 °C (2525 °F) |
| Tensile Strength | 520 MPa / 75,000 psi |
| Yield Strength (0.2% Offset) | 205 MPa / 30,000 psi |
| Elongation | 30% |
Manufacturing Standards
| ASTM B564 – ASME SB564 | Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Low Pressure Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Screwed & Socket-welding Fittings for Petroleum Industry |
Applications of Incoloy 800H / 800HT Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
- Furniture Industry
Arrow Piping Solutions ensures premium quality, high-perform 800H / 800HT Forged Fittings with secure packaging and reliable global delivery. Contact us today for detailed quotations tailored to your project needs.
