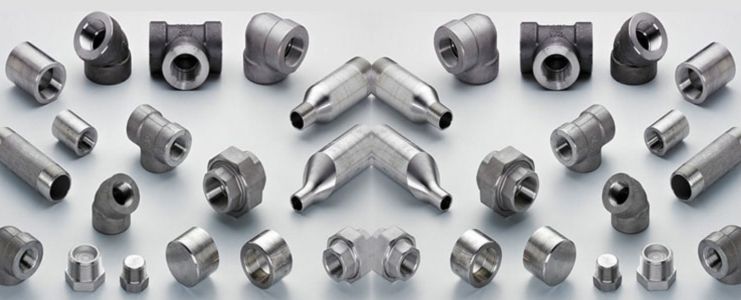

Hastelloy C276 Forged Fittings
Arrow Piping Solutions offers a broad range of premium Hastelloy C276 Forged Fittings available in various sizes and specifications. Comprising nickel, molybdenum, chromium, and tungsten, Hastelloy C276 is a versatile alloy offering excellent resistance to chemical environments, pitting, and crevice corrosion. Our forged fittings are ideal for heavy engineering and high-temperature applications, providing durability, superior strength, and leak-proof performance.
We manufacture Hastelloy C276 Forged Fittings in a state-of-the-art facility using top-quality raw materials and advanced machinery. Each fitting is rigorously tested, including mechanical, chemical, pitting corrosion, intergranular corrosion, and material verification tests. All products come with complete certification and documentation, ensuring full transparency and traceability.
Hastelloy C276 Forged Fittings Range:
- ASTM B564 Alloy C276 Threaded Union
- C276 Hastelloy Socketweld 45° Elbow
- Hastelloy C276 Plug
- Alloy C276 Hex Bushing
- Hastelloy Alloy C276 Forged Coupling
- Hastelloy C276 High Pressure Forged Pipe Fittings
- Hastelloy C276 Threaded Cap
- Hastelloy C276 Screwed Half Coupling
- Hastelloy C276 S/W Reducing Tee
- Alloy C276 90° Socket Weld Cross
- Hastelloy C276 Threaded Elbow
Specifications
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| Standard | UNS | WNR. | EN | JIS | GOST | OR |
|---|---|---|---|---|---|---|
| Hastelloy C276 | N10276 | 2.4819 | NiMo16Cr15W | NW 0276 | ХН65МВУ | ЭП760 |
Each Hastelloy C276 Forged Fitting from Arrow Piping Solutions is tested thoroughly to meet international standards. We ensure the highest level of quality, safety, and reliability in every product.
Chemical Composition (%):
| Grade | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hastelloy C276 | Balance | 0.01 max | 15–17 | 1.0 max | 0.08 max | 4–7 | 0.04 max | 0.03 max | 2.5 max | 14.5–16.5 | 3–4.5 | 0.35 max |
Mechanical Properties
| Density | 8.89 g/cm³ |
|---|---|
| Melting Point | 1370 °C (2500 °F) |
| Tensile Strength | 790 MPa / 115,000 psi |
| Yield Strength (0.2% Offset) | 355 MPa / 52,000 psi |
| Elongation | 40% |
Manufacturing Standards
| ASTM B564 – ASME SB564 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Low Pressure Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Screwed & Socket-welding Fittings for Petroleum Industry |
Applications of Hastelloy C276 Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission Industry
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
- Furniture Industry
Arrow Piping Solutions provides reliable Hastelloy C276 Forged Fittings with secure packaging, timely delivery, and top-notch quality control. Get in touch with us for the latest prices, product customization, and technical assistance.
