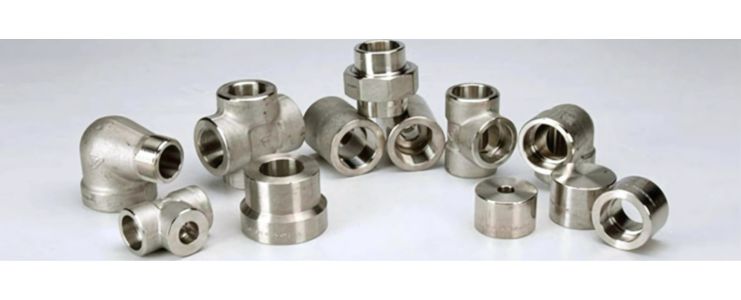

Hastelloy C22 Forged Fittings
Arrow Piping Solutions is a foremost fabricator and supplier of premium quality Hastelloy C22 Forged Fittings in different sizes and specifications. Hastelloy C22, a high-performance alloy composed mainly of nickel, chromium, molybdenum, and iron, offers excellent resistance to stress corrosion cracking, pitting, and crevice corrosion even in oxidizing and reducing environments. We manufacture these fittings using standard raw materials and modern production methods to ensure durability and ease of maintenance.
We export Hastelloy C22 Forged Fittings in customized sizes, grades, forms, and dimensions as per customer demand. These fittings are known for their high tensile strength, outstanding corrosion resistance, superior finish, excellent workability, and weldability. Arrow Piping Solutions ensures all fittings are produced in accordance with national and international standards to deliver dimensionally accurate, defect-free components.
Hastelloy C22 Forged Fittings Range:
- Alloy C22 Forged Coupling
- ASTM B564 Alloy C22 Threaded Union
- Alloy C22 Hex Bushing
- C22 Hastelloy Socketweld 45° Elbow
- Hastelloy C22 High Pressure Forged Pipe Fittings
- Hastelloy C22 Plug
- Alloy C22 90° Socketweld Cross
- Hastelloy C22 Screwed Half Coupling
- Hastelloy Alloy C22 Threaded Elbow
- Hastelloy C22 Socketweld Reducing Tee
- Hastelloy C22 Threaded Cap
Specifications
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| Standard | UNS | WNR. | EN | JIS |
|---|---|---|---|---|
| Hastelloy C22 | N06022 | 2.4602 | NiCr21Mo14W | NW 6022 |
Each Hastelloy C22 Forged Fitting from Arrow Piping Solutions is tested thoroughly to meet industry standards. We conduct mechanical, chemical, hardness, tensile, PMI, and IGC tests. All shipments include complete documentation and certificates, ensuring total transparency and traceability for our customers.
Chemical Composition (%):
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|---|
| Hastelloy C22 | 0.010 | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 | 20.00–22.50 | 2.00–6.00 | 12.50–14.50 | 0.02 max |
Mechanical Properties
| Density | 8.69 g/cm³ |
|---|---|
| Melting Point | 1399 °C (2550 °F) |
| Tensile Strength | 690 MPa / 100,000 psi |
| Yield Strength (0.2% Offset) | 310 MPa / 45,000 psi |
| Elongation | 45% |
Manufacturing Standards
| ASTM B564 – ASME SB564 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Low Pressure Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Screwed & Socket-welding Fittings for Petroleum Industry |
Applications of Hastelloy C22 Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission Industry
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
- Furniture Industry
Arrow Piping Solutions provides premium Hastelloy C22 Forged Fittings with prompt delivery, secure packaging, and complete quality assurance. Contact us for custom sizes, latest prices, and expert guidance tailored to your project's specifications.
