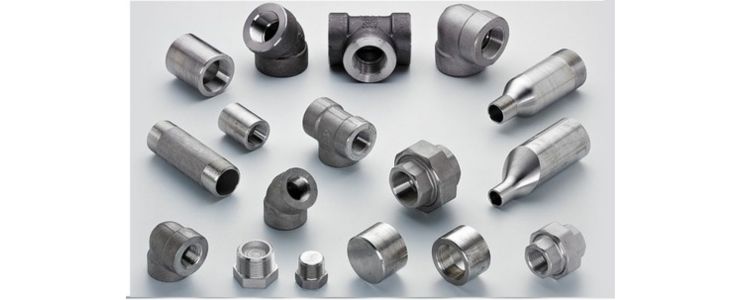

Duplex Steel S32205 Forged Fittings
Arrow Piping Solutions is a trusted supplier and manufacturer of high-quality Duplex Steel S32205 Forged Fittings. These fittings are engineered with a balanced microstructure of austenite and ferrite, offering excellent strength, corrosion resistance, and stress corrosion cracking resistance, making them ideal for a variety of industrial applications in both oxidizing and reducing environments.
Our Duplex S32205 Forged Fittings are known for their high performance, excellent weldability, robust design, and resistance to pitting, crevice corrosion, and fatigue. Manufactured using state-of-the-art technology and high-grade raw materials, every product is tested for quality, strength, and durability. Arrow Piping Solutions ensures that each fitting complies with global quality standards.
Duplex Steel S32205 Forged Fittings Range:
- S32205 Duplex Steel Socketweld 45° Elbow
- Duplex S32205 Forged Coupling
- Duplex Steel S32205 High Pressure Forged Pipe Fittings
- ASTM A182 Duplex S32205 Threaded Union
- Duplex SAF 2205 Hex Bushing
- Duplex Steel S32205 Plug
- Duplex Steel S32205 Screwed Half Coupling
- Duplex Steel S32205 Threaded Elbow
- Duplex Steel S32205 S/W Reducing Tee
- Duplex S32205 90° Socket Weld Cross
- Duplex Steel S32205 Threaded Cap
Specifications
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size Range | 1/8" NB to 4" NB |
| Type | Socketweld, Screwed-Threaded (NPT/PT) |
| Pressure Rating | Threaded: 2000 / 3000 / 6000 LBS Socketweld: 3000 / 6000 / 9000 LBS |
Equivalent Grades
| Standard | WERKSTOFF NR. |
|---|
Arrow Piping Solutions ensures that Duplex Forged Fittings are manufactured in compliance with all national and international standards for use in critical applications.
Chemical Composition (%):
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
|---|---|---|---|---|---|---|---|---|---|---|
| S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
Mechanical Properties
| Grade | Density (g/cm³) | Density (lb/in³) | Melting Point (°C) | Melting Point (°F) |
|---|---|---|---|---|
| S32205 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
Manufacturing Standards
| ASTM A182 – ASME SA182 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Low Pressure Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Screwed & Socket-welding Fittings for Petroleum Industry |
Applications of Duplex S32205 Forged Fittings
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission Industry
- Power Plants
- Energy Industries
- Pharmaceutical Processing
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber Manufacturing
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
- Furniture Industry
Arrow Piping Solutions offers Duplex S32205 Forged Fittings with precise dimensions, reliable performance, and timely delivery. Contact us for your bulk and customized fitting needs with full quality assurance and documentation support.
