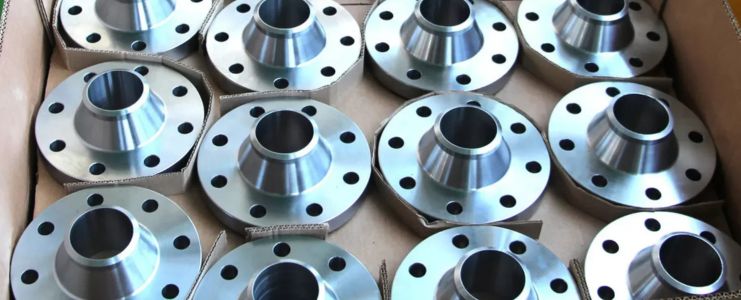

Stainless Steel 904L Flanges
Arrow Piping Solutions is a leading manufacturer and supplier of Stainless Steel 904L Flanges in India. We offer a comprehensive range of ASTM A182 SS 904L Pipe Flanges, including Lap Joint Flanges, SORF Flanges, Socket Weld Flanges, Threaded Flanges, Plate Flanges, and Spectacle Blind Flanges at competitive prices across the country.
SS 904L is a high-alloy austenitic stainless steel with added Molybdenum and Copper, making it highly resistant to crevice corrosion, pitting, and sulfuric acid. These properties make it suitable for harsh and corrosive environments such as chemical processing, pollution control, and marine applications. Its low carbon content also improves weldability and prevents intergranular corrosion during welding.
Arrow Piping Solutions manufactures SS 904L Flanges as per ASTM A182 standards, available in all pressure classes and face types. Our products are known for high strength, dimensional accuracy, and excellent surface finish, making them ideal for critical industries such as oil & gas, power generation, and pharmaceuticals.
Specifications of Stainless Steel 904L Flanges
- Specification: ASTM A182 / ASME SA182
- Dimension Standard: ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, JIS
- Size: 1/2" (15 NB) to 48" (1200NB)
- Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
- Flange Face Type: Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | AFNOR | EN |
|---|---|---|---|---|---|---|
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
|---|---|---|---|---|---|---|---|---|---|
| SS 904L | 0.020 max | 2 max | 1.0 max | 0.040 max | 0.030 max | 19–23 | 4.00–5.00 | 23.00–28.00 | 1.00–2.00 |
Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|
| 7.95 g/cm³ | 1350 °C (2460 °F) | 71000 psi / 490 MPa | 32000 psi / 220 MPa | 35% |
Standard Sizes and Dimensions
| Standard | Class | Diameter | Bolt Circle Diameter | No. of Bolts | Bolt Size | Bolt Hole Dia |
|---|---|---|---|---|---|---|
| ANSI 150 | 150 | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 | 300 | 95 | 67 | 4 | 13 | 16 |
| ANSI 600 | 600 | 95 | 67 | 4 | 13 | 16 |
| ANSI 900 | 900 | 121 | 83 | 4 | 19 | 22 |
| PN10 | 10 | 95 | 65 | 4 | M12 | 14 |
| PN16 | 16 | 95 | 65 | 4 | M12 | 14 |
Application Industries
Chemical & Petrochemical
- Chemical Industry
- Petrochemical Industry
- Power Plants
Industrial Usage
- Marine & Power Transmission
- Energy Industries
- Pharmaceutical Processing
Construction & Utility
- Modern Architecture
- Home Appliances
- Water Waste Projects
Process Equipment
- Synthetic Fiber
- Heat Exchangers
- Fluid Piping
- Dairy and Food Processing
Note: Arrow Piping Solutions ensures prompt delivery, damage-proof packaging, and all necessary documentation with every shipment of SS 904L Flanges. Our commitment to quality and customer satisfaction has made us a reliable name in the stainless steel flanges market.
