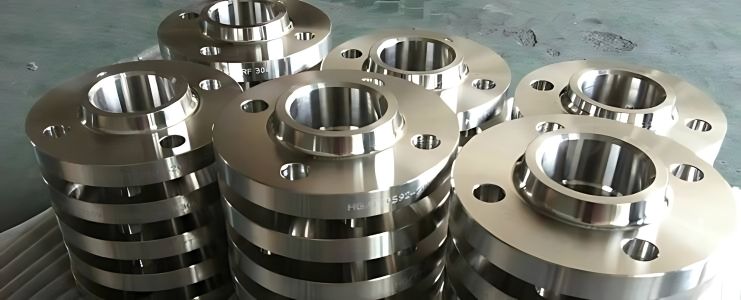

Stainless Steel 316Ti Flanges

Stainless Steel 316Ti Flanges

Arrow Piping Solutions is a trusted manufacturer, supplier, and exporter of Stainless Steel 316Ti Flanges in India. We offer a complete range of ASTM A182 SS 316Ti Flanges, including Socket Weld Flanges, SORF Flanges, Plate Flanges, Lap Joint Flanges, Threaded Flanges, and Spectacle Blind Flanges. These flanges are designed and manufactured to meet ANSI, ASME, BS, DIN, EN, and JIS standards.

Stainless Steel 316Ti is a stabilized grade of SS 316 that contains 0.5% Titanium, making it ideal for elevated temperature applications. The inclusion of Molybdenum enhances its corrosion resistance, especially against pitting and acids like hydrochloric, sulfuric, and acid sulphates. These properties make 316Ti suitable for aggressive and critical environments.

Arrow Piping Solutions manufactures SS 316Ti Flanges in various pressure classes, dimensions, and specifications to cater to industries such as chemical, petrochemical, marine, pharmaceutical, power generation, and more. All our flanges are tested for quality and performance to ensure durability and reliability in demanding applications.

Specifications of Stainless Steel 316Ti Flanges

• Specification: ASTM A182 / ASME SA182
• Dimension Standard: ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, JIS
• Standard: ANSI, ASME, BS, DIN, EN
• Size: 1/2" (15 NB) to 48" (1200 NB)
• Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6 to PN64
• Flange Face Type: Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	KS	AFNOR	EN
SS 316Ti	1.4571	S31635	SUS 316Ti	904S13	STS 317J5L	Z2 NCDU 25-20	X1NiCrMoCu25-20-5

Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Cu
SS 316Ti	0.020 max	2.0 max	1.0 max	0.040 max	0.030 max	19.00 - 23.00	4.00 - 5.00	23.00 - 28.00	1.00 - 2.00

Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2% Offset)	Elongation
7.95 g/cm³	1350 °C (2460 °F)	71000 psi / 490 MPa	32000 psi / 220 MPa	35%

Standard Sizes and Dimensions

Standard	Class	Diameter	Bolt Circle Diameter	No. of Bolts	Bolt Size	Bolt Hole Dia
ANSI 150	150	89	60	4	13	16
ANSI 300	300	95	67	4	13	16
ANSI 600	600	95	67	4	13	16
ANSI 900	900	121	83	4	19	22
PN10	10	95	65	4	M12	14
PN16	16	95	65	4	M12	14
