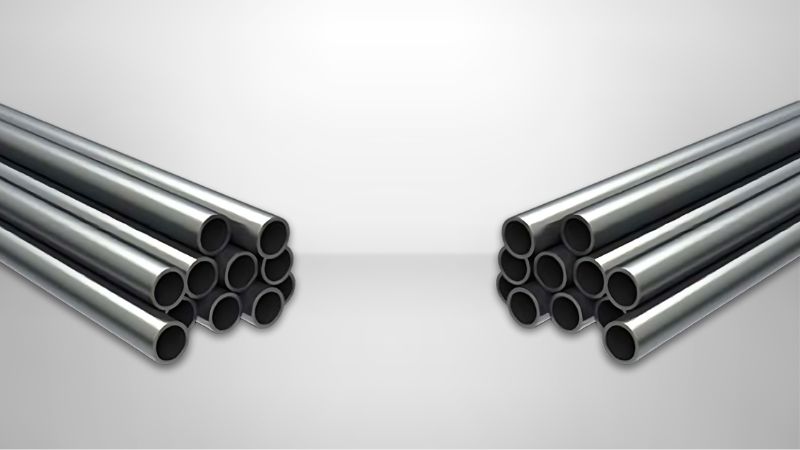

Titanium Grade 5 Pipe
Arrow Piping Solutions is a global manufacturer & supplier of Titanium Grade 5 Pipe (UNS R56400), known for its exceptional strength, high corrosion resistance, and lightweight properties. This Ti-6Al-4V alloy is widely used across industries due to its remarkable mechanical properties and efficiency. We offer a range of finishes including Brushed, Annealed and Pickled (AP), Bright and Annealed (BA), and MF, meeting all international standards.
Our Titanium Gr 5 Pipes are manufactured in accordance with ASTM B337 / B338 and ASME SB861 / SB862 standards. Available in sizes from 5.0 mm to 1219.2 mm and various wall thicknesses, we supply in Single Random, Double Random, and Cut Lengths. The composition includes 90% titanium, 3.5-4.5% vanadium, and 5.5-6.75% aluminum. It has a density of 4.43 g/cm³, a melting point of 1632°C, yield strength of 880 MPa, tensile strength of 950 MPa, and 14% elongation.
Applications of Titanium Gr 5 Pipes
- Aerospace Components
- Marine Installations
- Chemical Processing Units
- Offshore Oil Drilling Equipment
- Heat Exchangers
- Medical Implants
- Pharmaceutical Manufacturing
- Automotive Parts
- Power Plants
- Sports Equipment
Most Common Types
- Titanium Gr.5 Seamless Pipe
- Titanium Gr.5 Welded Pipe
- Titanium Gr.5 ERW Pipe
- Titanium Gr.5 EFW Pipe
- Titanium Gr.5 Square Pipe
- Titanium Gr.5 Rectangular Pipe
- Titanium Gr.5 Capillary Pipe
Titanium Gr 5 Pipe Specifications
| ASTM Specification | ASTM B861, B862, B338 / ASME SB861, SB862, SB338 |
|---|---|
| Standard | ASTM, ASME, API |
| Size Range | 15mm NB to 150mm NB (1/2″ to 6″), up to 508mm OD |
| Outer Diameter | 1.250″ – 6.000″ (30-150mm) |
| Wall Thickness | 2.5mm to 25mm |
| Schedule | SCH20 to SCH160, XXS |
| Form | Round, Square, Rectangular, Coiled, U-Shape, Pan Cake |
| Finish | Polished, AP, BA, MF, NO.1, NO.4, 2B, HL, Mirror |
| End | Plain, Beveled, Threaded |
| Type | Seamless, Welded, ERW, EFW, Fabricated |
| Grade | Titanium Gr.5 (Ti-6Al-4V), UNS R56400 |
Packing & Marking
Arrow Piping Solutions ensures secure packaging using wooden crates, bubble wrap, and plastic sheets to avoid damage. Each Titanium Gr 5 Pipe is clearly labeled with size, grade, OD, wall thickness, and heat number for full traceability or as per client specifications.
Quality Checks & Certifications
- Material Test Certificate (MTC) as per EN 10204 3.1 / 3.2
- Third Party Inspection Reports
- Ultrasonic & Radiography Testing
- PMI, IGC, Hydrostatic & Mechanical Testing
- Hardness & Chemical Composition Reports
- NABL Certified Lab Test Reports
Looking for Fastest Delivery in Mumbai?
Searching for ready stock of Titanium Gr 5 Pipes? Contact Arrow Piping Solutions for competitive pricing and quick dispatch.
