Titanium Gr 5 Pipe Fittings
Arrow Piping Solutions is a premier manufacturer, supplier, and exporter of Titanium Grade 5 Buttweld Pipe Fittings in India. Our extensive range includes Titanium Gr 5 45° Elbows, Titanium Gr 5 90° Elbows, ASME SB363 Titanium Alloy Gr 5 Pipe Caps, Titanium Gr 5 Reducers, ANSI B16.9 Titanium Gr 5 Buttweld Fittings, and more.
We offer both seamless and welded Titanium Gr 5 Pipe Fittings crafted from the industry’s most durable alloy. Titanium Grade 5 (Ti‑6Al‑4V) is renowned for its outstanding strength-to-weight ratio, excellent corrosion resistance, and high-temperature performance, making it ideal for aerospace, marine, chemical, and power generation applications.
At Arrow Piping Solutions, we adhere to international standards—ASME/ANSI B16.9, B16.25, B16.28, MSS‑SP‑43—to ensure consistent quality. Our fittings are precision-engineered, competitively priced, and delivered on schedule, with custom packaging options available.

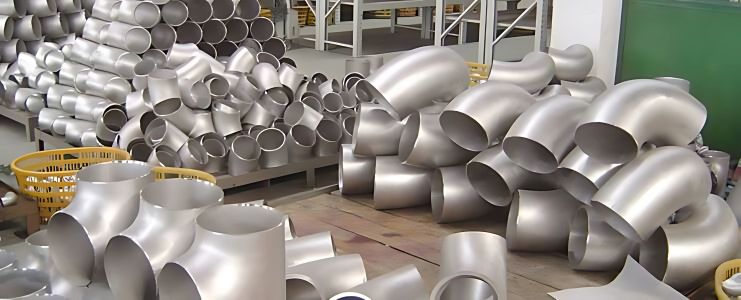

Titanium Gr 5 Pipe Fittings Range:
- Titanium Gr 5 45° & 90° Elbows
- ASME SB363 Titanium Gr 5 Pipe Caps
- ANSI B16.9 Titanium Gr 5 Reducers
- Titanium Gr 5 Buttweld Crosses
- Seamless and Welded Titanium Gr 5 Pipe Bends
- Ti Alloy Gr 5 Fittings in Mumbai
- Customized Titanium Gr 5 Pipe Fittings
- ASTM B363 / ASME SB363 Titanium Alloy Gr 5 Fittings
Key Features:
- Exceptional strength and toughness at elevated temperatures
- Superior corrosion resistance in oxidizing and reducing environments
- Excellent fatigue resistance and weldability
- Lightweight yet high-load capacity—ideal for critical applications
- Delivered with full test certificates and traceability documentation
Specifications of Titanium Gr-5 Pipe Fittings
| Specification | ASTM B363 / ASME SB363 |
|---|---|
| Dimension Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.25 | Buttwelding Ends |
| ASME B16.28 | Butt-Welded Short Radius Elbows & Return Bends |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| Size Range | ½″ NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS (DN6–DN100) |
| Seamless Butt Weld Fitting Size | ½″–10″ |
| Welded Butt Weld Fitting Size | ½″–48″ |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Bending Radius | R = 1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type | Seamless / Welded / Fabricated |
ASTM B363 Titanium Gr 5 Buttweld Pipe Fittings Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. |
|---|---|---|
| Titanium Gr 5 | R56400 | 3.7165 |
Arrow Piping Solutions serves clients across India and worldwide, carefully selecting packing materials and shipping methods to ensure timely, damage‑free delivery of our Titanium Gr 5 Pipe Fittings. We’re always ready to support your operations with excellence.
Titanium Gr 5 Pipe Fittings Dimensions
| Nominal Pipe Size (NPS) | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) | Wall Thickness (3) | Centre-to-End Dimension A, B, C, M | Centre-to-Centre O | Back‑to‑Face K | Alignment of Ends U | Overall Length H | Overall Length E |
|---|---|---|---|---|---|---|---|---|---|
| ½ to 2½ | 0.06 - 0.03 | 0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 - 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 - 0.12 | 0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 - 0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 - 0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 - 0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
Chemical Composition
| Grade | C | N | O | H | Ti | Fe |
|---|---|---|---|---|---|---|
| Ti Gr.5 | 0.10 max | 0.05 max | 0.25 max | 0.015 max | Bal | 0.40 max |
Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Ti Gr. 5 | 4.43 g/cm³ | 1632 °C (2970 °F) | 138,000 psi / 950 MPa | 128,000 psi / 880 MPa | 14 % |
Application Industries
Arrow Piping Solutions’ Titanium Grade 5 Pipe Fittings are widely used in:
- Textile machinery
- Oil and gas industry
- Pulp and paper industry
- Power plants
- Energy industries
- Furniture
- Pharmaceutical processing industry
- Modern architecture
- Home appliances
- Water waste projects
- Synthetic fiber
- Heat exchanger
- Fluid piping
- Dairy and food processing
