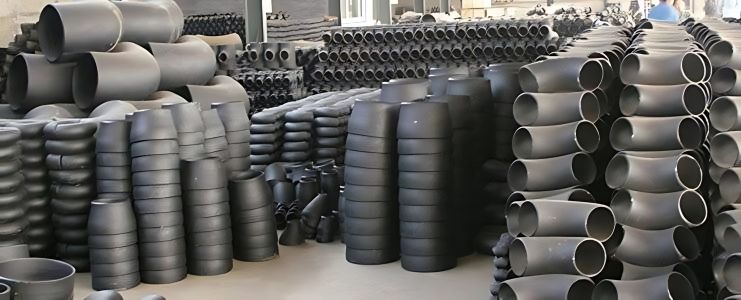

Alloy Pipe Fittings
Arrow Piping Solutions is the leading manufacturer, exporter, and supplier of Alloy Pipe Fittings in India. Known for high-quality standards, our fittings are made using superior-grade alloy steel and precision engineering. These fittings are ideal for applications in power stations, petrochemical industries, and more, where high strength and resistance to corrosive environments are crucial.
We offer a complete range of Alloy Buttweld Pipe Fittings, including 45° Elbows, 90° Elbows, Tees, Reducers, Pipe Bends, Pipe Caps, Crosses, and more. All fittings comply with international specifications and are available in seamless, welded, and fabricated types. Each fitting is engineered to handle high-pressure and high-temperature conditions across various industries.
Arrow Piping Solutions stocks Alloy Pipe Fittings in sizes ranging from ½" NB to 48" NB and thickness from Sch 5s to Sch XXS. These fittings conform to ASTM A234 / ASME SA234 and standards including ASME/ANSI B16.9, B16.28, MSS SP-43, and more. All products undergo rigorous testing and are delivered with proper documentation and high-quality packaging.
Alloy Pipe Fittings Specifications
| Specification | ASTM A234 / ASME SA234 |
|---|---|
| Dimension Standard | ASME B16.9, B16.25, B16.28, MSS-SP-43 |
| Size Range | ½" NB to 48" NB |
| Wall Thickness | Sch 5s, 10s, 40s, 80s, 160s, XXS |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R = 1D to 10D or Custom |
Alloy Pipe Fittings Dimensions
| NPS | O.D. at Bevel | I.D. at End | Wall Thickness | Elbows/Tees A,B,C,M | 180° Return O | Back-to-Face K | Ends U | Reducers H | Caps E |
|---|---|---|---|---|---|---|---|---|---|
| ½ to 2½ | 0.06 | 0.03 | ≥ 87.5% nominal | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3½ | 0.06 | 0.06 | ≥ 87.5% nominal | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | ≥ 87.5% nominal | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 | 0.06 | ≥ 87.5% nominal | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 | 0.12 | ≥ 87.5% nominal | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 | 0.19 | ≥ 87.5% nominal | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 | 0.19 | ≥ 87.5% nominal | 0.12 | – | – | – | 0.19 | 0.38 |
| 32 to 48 | 0.25 | 0.19 | ≥ 87.5% nominal | 0.19 | – | – | – | 0.19 | 0.38 |
Alloy Pipe Fittings Application Industries
Arrow Piping Solutions supplies high-performance Alloy Pipe Fittings widely used in industries such as:
- Oil and Gas Industry
- Pulp and Paper Industry
- Textile Machinery
- Power Plants
- Pharmaceutical Processing
- Modern Architecture
- Furniture
- Heat Exchangers & Condensers
- Water Waste Projects
- Synthetic Fiber Industry
- Home Appliances
- Fluid Piping Systems
- Dairy and Food Processing
