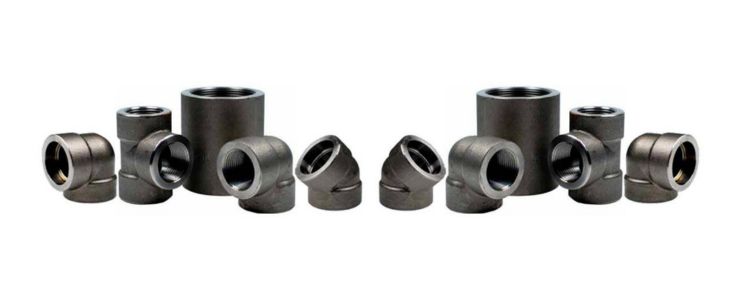

Carbon Steel Forged Fittings


Arrow Piping Solutions is a leading manufacturer, supplier, and exporter of high-quality Carbon Steel Forged Fittings. Known for their exceptional strength, hardness, and weldability, these fittings are ideal for a wide range of industrial applications.


Our Carbon Steel Forged Fittings are produced using high-grade raw materials and advanced manufacturing techniques to ensure durability and precision. These fittings are known for their high tensile strength, abrasion resistance, and resistance to mechanical stress, making them suitable for both hot and cold working operations.


Carbon Steel Forged Fittings Range:


  • Carbon Steel Socketweld 45° Elbow
  • Carbon Steel Threaded Union
  • Carbon Steel High Pressure Forged Pipe Fittings
  • Carbon Steel Plug
  • Carbon Forged Coupling
  • Carbon 90° Socket Weld Cross
  • Carbon Steel Screwed Half Coupling
  • Carbon Steel Threaded Elbow
  • Carbon S/W Reducing Tee
  • Carbon Steel Threaded Cap
  • Carbon Hex Bushing

Specifications

SpecificationASME SA105
Dimension StandardsASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size Range1/8" NB to 4" NB
TypeSocketweld, Screwed-Threaded (NPT/PT)
Pressure RatingThreaded: 2000 / 3000 / 6000 LBS
Socketweld: 3000 / 6000 / 9000 LBS

Chemical Composition of Carbon Steel Forged Fittings

ElementComposition %
Carbon0.35 max
Manganese0.60 – 1.05
Phosphorus0.035 max
Sulfur0.040 max
Silicon0.10 – 0.35
Copper0.40 max
Nickel0.40 max
Chromium0.30 max
Molybdenum0.12 max
Vanadium0.08 max

Mechanical Properties of Carbon Steel Forged Fittings

Tensile Strength (min)Yield Point (min)Reduction of Area (min)Hardness (HB, max)
70,000 psi (485 MPa)36,000 psi (250 MPa)30%187

Manufacturing Standards

ASTM A182 – ASME SA182Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9Factory-Made Wrought Buttwelding Fittings
ASME B16.11Socket Welding and Threaded Forged Fittings
MSS SP-43Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
MSS SP-95Swage(d) Nipples and Bull Plugs
BS3799Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry

Latest Price List of Carbon Steel Forged Fittings

ProductPrice
High Pressure CS Pipe Fittings CL3000 Forged Fitting$4.98 / Piece
Forged Pipe Fitting 3000LB Male Threaded A105 Hex Head Plug$5.89 / Piece
Pipe Fitting 2" A105 Forged Carbon Steel Coupling$0.12 – $46.25 / Piece
Carbon Steel B16.11 Socket Weld Union Forged Fitting$1.27 – $29.71 / Piece
Forged High Pressure CS Elbow 1 inch 3000LB NPT$1.00 – $92.88 / Piece

Applications of Carbon Steel Forged Fittings

  • Chemical Industry
  • Petrochemical Industry
  • Marine & Power Transmission Industry
  • Power Plants
  • Energy Industries
  • Pharmaceutical Processing
  • Modern Architecture
  • Home Appliances
  • Water Waste Projects
  • Synthetic Fiber Manufacturing
  • Heat Exchangers
  • Fluid Piping
  • Dairy and Food Processing
  • Furniture Industry

Arrow Piping Solutions offers premium Carbon Steel Forged Fittings with accurate dimensions, robust construction, and competitive pricing. Each fitting is packed securely using wooden crates, cartons, or pallets to ensure safe delivery worldwide. Contact us today for the best deals and custom solutions tailored to your project.
