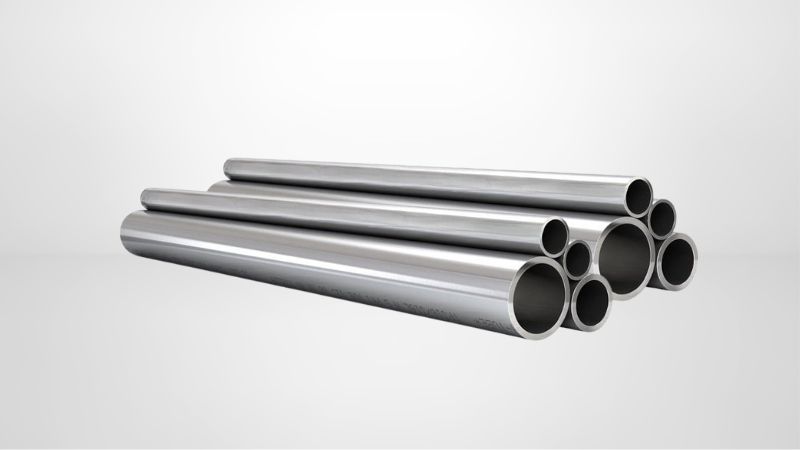

Stainless Steel Hydraulic Pipe
Arrow Piping Solutions is a leading manufacturer & supplier of Stainless Steel Hydraulic Pipes globally. These pipes are ideal for high-pressure applications across large areas, offering superior strength, corrosion resistance, and smooth flow of fluids and gases. SS hydraulic pipes are especially suitable for aerospace, aircraft, and aerodynamic instruments due to their durability and high performance. They are manufactured as per EN 10216-5 TC1/TC2, ASTM A269, and NACE MR0175 standards for excellent operational reliability.
We offer two main types: Stainless Steel Seamless Hydraulic Pipes and Stainless Steel Welded Hydraulic Pipes. Seamless pipes are manufactured by hot extrusion and have 20% more load-bearing capacity, while welded pipes offer customization and cost efficiency. These pipes are trusted across many industries for their performance and robustness.
Industrial Applications of Stainless Steel Hydraulic Pipe
- Marine
- Petrochemical
- Pharmaceuticals
- Power Plants
- Oil & Gas
- Aerospace & Automotive
Most Common Types
- Stainless Steel Hydraulic Pipes
- Welded Square Hydraulic Pipe
- Seamless Hydraulic Pipe
- SS Hydraulic Hollow Pipe
Stainless Steel Hydraulic Pipe Specifications
| Size Range | OD 6 mm – 60.3 mm |
|---|---|
| Standards | EN 10216-5 TC1/TC2, ASTM A269, PED 97/23/EC, AD 2000, NACE MR0175 |
| Dimensions | ASTM, AISI, ASME, JIS, DIN, EN, GB, BS, SUS |
| Material Grades | SS 304, 304L, 316, 316L, 321, 321H, 347, 347H |
| Surface Finish | Bright annealed, pickled & polished (on request) |
| Advantages | Smooth surface, no defects, high precision, hardness below 80 HRB |
SS Hydraulic Pipe Dimension in MM
| Nominal Pipe Size (inches) | OD (mm) | 5S Thickness (mm) | 10S Thickness (mm) | 40S Thickness (mm) | 80S Thickness (mm) |
|---|---|---|---|---|---|
| 1/8 | 10.3 | - | - | 1.25 | 2.42 |
| 1/4 | 13.7 | - | - | 1.66 | 3.03 |
| 3/8 | 17.2 | - | - | 1.66 | 3.20 |
| 1/2 | 21.3 | 1.65 | 2.11 | 2.77 | 3.74 |
| 3/4 | 26.7 | 1.65 | 2.11 | 2.87 | 3.92 |
| 1 | 33.4 | 1.65 | 2.77 | 3.38 | 4.55 |
| 1-1/4 | 42.2 | 1.65 | 2.77 | 3.56 | 4.86 |
| 1-1/2 | 48.3 | 1.65 | 2.77 | 3.69 | 5.08 |
| 2 | 60.3 | 1.65 | 2.77 | 3.92 | 5.54 |
| 2-1/2 | 73.0 | 2.11 | 3.05 | 5.16 | 7.01 |
| 3 | 88.9 | 2.11 | 3.05 | 5.49 | 7.62 |
| 3-1/2 | 101.6 | 2.11 | 3.05 | 5.74 | 8.08 |
| 4 | 114.3 | 2.11 | 3.05 | 6.02 | 8.56 |
| 5 | 141.3 | 2.77 | 3.41 | 6.56 | 9.53 |
| 6 | 168.3 | 2.77 | 3.41 | 7.12 | 10.98 |
| 8 | 219.1 | 2.77 | 3.76 | 8.18 | 12.70 |
| 10 | 273.1 | 3.41 | 4.20 | 9.28 | 12.70 |
| 12 | 323.9 | 3.97 | 4.58 | 9.53 | 12.70 |
SS Hydraulic Pipe Thickness Chart
| Gauge | Thickness (inches) |
|---|---|
| 22 | 0.028 |
| 20 | 0.035 |
| 19 | 0.042 |
| 18 | 0.049 |
| 17 | 0.058 |
| 16 | 0.065 |
| 15 | 0.072 |
| 14 | 0.083 |
| 13 | 0.095 |
| 12 | 0.109 |
| 11 | 0.120 |
| 10 | 0.134 |
| 9 | 0.148 |
| 8 | 0.165 |
| 7 | 0.180 |
Packing & Marking
Arrow Piping Solutions ensures secure packaging using plastic wrap, bubble sheets, or wooden boxes as per customer needs. Each pipe is labeled with size, grade, heat number, and batch details for full traceability. We offer fast and reliable global shipping with strong logistics support.
Quality Checks & Certifications
- Mill Test Certificates (MTC)
- Tensile, Hardness & Impact Testing
- Chemical Composition Verification
- Hydrostatic & NDT Testing
- Third-Party Inspection Available
Looking for Fastest Delivery in Mumbai?
Searching for ready stock of Stainless Steel Hydraulic Pipes? Contact Arrow Piping Solutions for competitive pricing and timely dispatch across India.
Phone: +91-80973-20872
Email: inquiry@arrowpiping.co.in
