Most Trusted Concrete J Hooks Manufacturer in India
For instance, Duplex Steel 2205 J Bolts are very cost-effective and offer superior corrosion resistance, especially when compared to carbon steel and alloy steel. SS 316 J Bolts provide enhanced corrosion-resistant performance for demanding industrial applications.
Marine quality Grade 316 Stainless Steel J Bolts perform well against contaminants, saltwater, moisture and ocean currents. They also withstand elevated temperatures without losing strength or corrosion resistance.
J Bolt At a Glance
| Ready Stock | M10 to M100 |
|---|---|
| Imperial Size | 3/8" to 8" |
| International Standard | DIN 6914, ASME B18.2.1 |
| Raw Material Origin | Algeria, South Africa, Europe, Morocco, New Zealand, United Kingdom, India, Australia, Saudi Arabia |
| MTC | EN 10204 / 3.1B |
| Thread Pitch | Fine Thread and Coarse Thread |
| Surface | Phosphating, Oxidation, HDG |
| Threads | UNR, UNJ, UNC, Rolled, UNF |
| Temperature Range | 392°F (200°C) |
| To Know About Latest Price List of J Bolt Please Contact Us | |

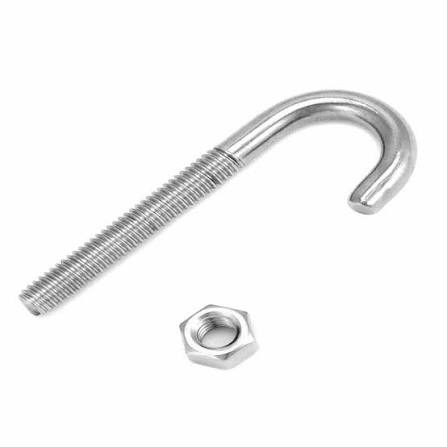

Round Bend J-Bolts

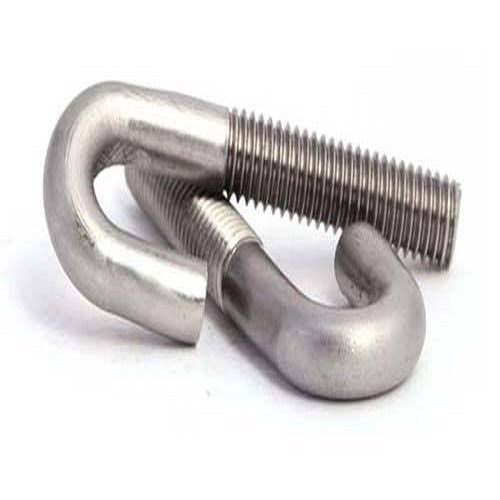

J Hook Bolts

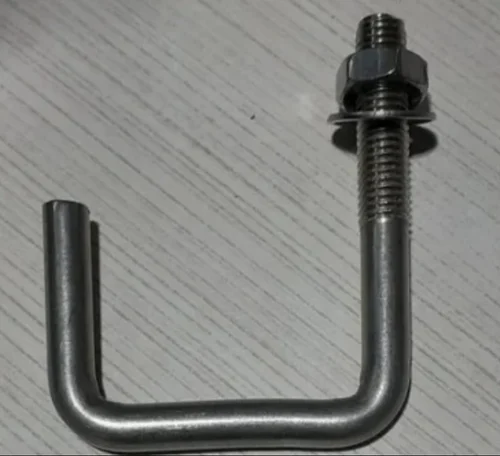

Square Bend J-Bolts
Table of Contents
- J Bolt Specification
- Concrete J Hooks Materials
- Price List of J Bolt
- J Type Anchor Bolt Thread Types
- Heavy Duty J Bolt Surface Coating
- J Bolts Dimensions
- J Anchor Bolts Load Capacity
- Types of J Bolt
- Square Bend J Bolt Size Chart
- Hook J Bolts Standards
- Galvanized J Bolts Weight Chart
- Square J Bolt Applications
Arrow Piping Solutions is a leading manufacturer and supplier of Stainless Steel J Bolts, available in various sizes, thread types, surface finishes and manufacturing standards for construction, marine and industrial applications.
J Bolt Size
- M10 to M100
Hook J Bolts Size
- Size: 3/8" to 8"
J Anchor Bolt Size
- 12" to 36"
Square Bend J Bolt Thread Pitch
- Coarse
- Fine
Heavy Duty J Bolt Manufacturing Methods
- Hot Forging
- Cold Forging
- CNC Machined
Long J Bolts Packaging
- Wooden Cases
- Carton Box
- Wooden Pallet
Hot Dip Galvanized J Bolt Surface
- Oxidation
- Phosphating
- Plain
Zinc Plated J Bolt Machines
- Making Machines
- CNC Lathe
- Thread Rolling
J Hook Anchor Bolts Testing
- UT Test
- Hardness Testing
- Tensile Testing
Concrete J Hooks Materials
Check J Bolt Supplier in India supplying various different Materials
| Material | UNS |
|---|---|
| 304 Stainless Steel J-Bolts Supplier | UNS S30400 J-Bolts Stockist |
| 18-8 Stainless Steel J-Bolts Manufacturer | |
| 316 Stainless Steel J-Bolts Manufacturer | UNS S31600 J-Bolts Exporter |
| A4-70 J-Bolts Trader | |
| 321 Stainless Steel J-Bolts Stockholders | UNS S32100 J-Bolts Retailer |
| A193 B8T (321) J-Bolts Wholesaler | |
| 304L Stainless Steel J-Bolts Trader | A2-70 J-Bolts Stockholders |
| 304H Stainless Steel J-Bolts Retailer | |
| 316L Stainless Steel J-Bolts Retailer | A4-80 J-Bolts Wholesaler |
| 316H Stainless Steel J-Bolts Distributor | |
| 347 Stainless Steel J-Bolts Supplier | UNS S34700 J-Bolts Stockist |
| A193 B8C (347) J-Bolts Manufacturer | |
| 310 Stainless Steel J-Bolts Distributor | UNS S31000 J-Bolts Supplier |
| 317 Stainless Steel J-Bolts Stockist | UNS S31700 J-Bolts Manufacturer |
| 317L Stainless Steel J-Bolts Exporter | |
| 410 Stainless Steel J-Bolts Trader | UNS S41000 J-Bolts Stockholders |
| A193 B6 (410) J-Bolts Retailer | |
| Inconel 600 Anchor Bolts Stockist | UNS N06600 Anchor Bolts Manufacturer |
| Incoloy 800 J-Bolts Stockist | UNS N08800 J-Bolts Manufacturer |
| Incoloy 825 J-Bolts Stockist | UNS N08825 J-Bolts Manufacturer |
Supplier of Stainless Steel J Type Anchor Bolt for Foundation at Lowest Price in Mumbai
Price List of J Bolt
To Know Latest Price of J Bolt in India Please Contact Us J Bolt Price List
Exporter of Heavy Duty J Bolt and Galvanized J Bolts With Various Threads
J Type Anchor Bolt Thread Types
Find J Bolt Supplier in India providing Threads like UNF, UN, Metric etc...
| Threads | Description |
|---|---|
| UNC | Unified National Coarse Pitch |
| UNF | Fine Pitch |
| UN | Fixed Pitch |
| ISO Metric | BSW, ACME |
Get NDT Test Square J Bolt in Various Surface Coating For Long Lasting Durability
Heavy Duty J Bolt Surface Coating
Discover J Bolt Manufacturer in India providing various Coatings
- Epoxy Coating
- Teflon Coating
- Oxidized
- Electro Polished
- Passivation
- Mirror Buffed
- Chrome Plating
- Hot Dipped Galvanizing
- Zinc Plating
Refer to the J Anchor Bolts Load Capacity and Dimension
J Bolts Dimensions
Check J Bolt Manufacturer in India who offers appropriate Dimensions
| Size (A x B) | Inside Hook Diameter (C) | Thread Length (D) | ||
|---|---|---|---|---|
| 8-32 | x | 1-7/8 | 5/16 | 1-1/4 |
| 10-24 | x | 2-1/8 | 3/8 | 1-1/4 |
| 1/4-20 | x | 2-5/16 | 7/16 | 1-1/2 |
| 1/4-20 | x | 4 | 1/2 | 2 |
| 1/4-20 | x | 6 | 5/8 | 2-1/2 |
| 5/16-18 | x | 3 | 1/2 | 2 |
| 5/16-18 | x | 5 | 5/8 | 2-1/2 |
| 5/16-18 | x | 7 | 5/8 | 3-7/8 |
| 3/8-16 | x | 3-3/4 | 5/8 | 2-1/4 |
| 3/8-16 | x | 5 | 5/8 | 2-1/4 |
| 3/8-16 | x | 7 | 5/8 | 2-1/4 |
| 1/2-13 | x | 6 | 1 | 3 |
J Anchor Bolts Load Capacity
| Size | Working Load |
|---|---|
| 1/4" × 2-5/16" | 100 lb |
| 3/16" × 1-7/8" | 40 lb |
| 3/16" × 2-1/2" | 40 lb |
| 5/16" × 3" | 160 lb |
| 1/4" × 6" | 100 lb |
| 3/8" × 3-3/4" | 225 lb |
| 5/16" × 7" | 160 lb |
| 1/2" × 6" | 425 lb |
Types of J Bolt
J Type Hook Anchor Bolt
J Anchor Bolts For Concrete
Large J Bolts

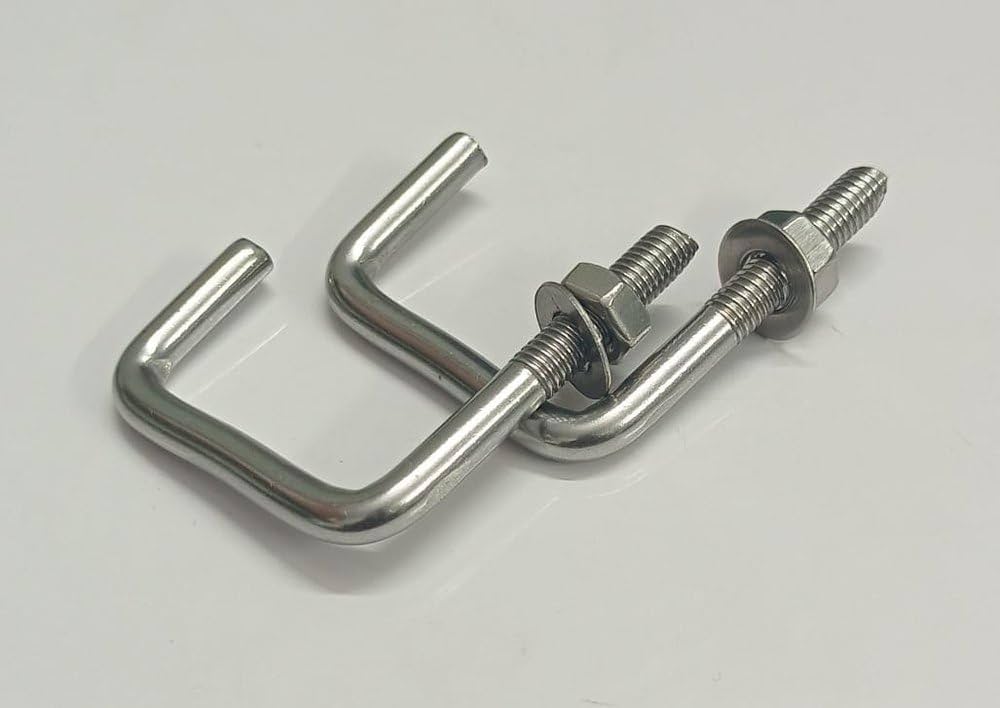

Square J Bolt

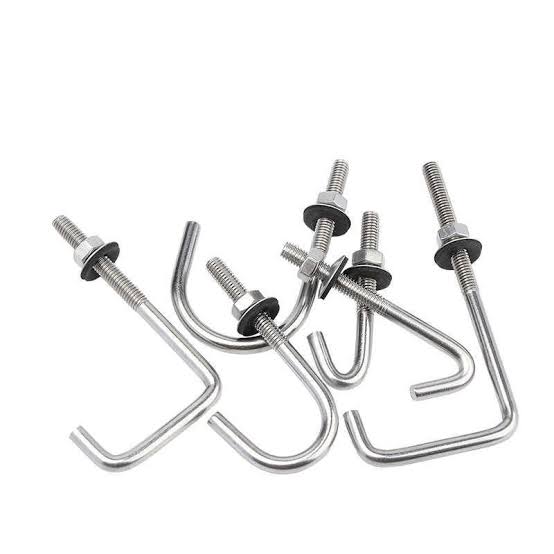

Small J Bolts

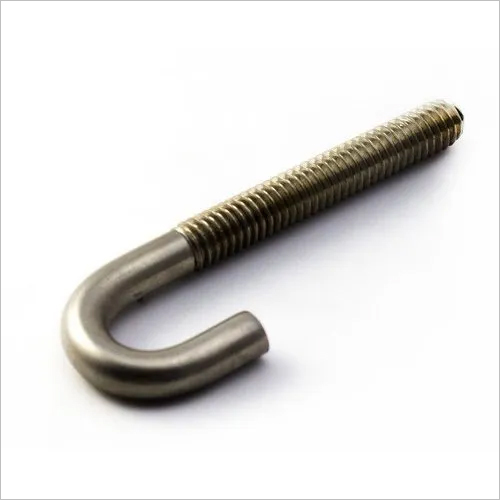

Heavy Duty J Bolt
Square Bend J Bolt Size Chart
| J Bolts | 1/2 × 5 | 1/2 × 4 | 1/2 × 5 1/2 | 1/2 × 3 1/2 | 1/2 × 6 1/2 | 1/2 × 4 1/2 |
|---|---|---|---|---|---|---|
| 3/8 × 4 | 3/8 × 3 | 1/2 × 2 1/2 | 3/8 × 2 1/2 | 1/2 × 3 | 3/8 × 3 1/2 | |
| 3/8 × 4 | 3/8 × 3 | 1/2 × 2 1/2 | 3/8 × 2 1/2 | 1/2 × 3 | 3/8 × 3 1/2 | |
| J Anchor Bolt | 1/2 × 5 | 1/2 × 4 | 1/2 × 5 1/2 | 1/2 × 3 1/2 | 1/2 × 4 1/2 |
Hook J Bolts Standards
| ASME B18.2.1 | 3/8 inch to 3 inch |
| BS 1769 | ½ inch to 2 inch |
| ASME B18.2.3.7M | M16 to M36 |
| ASME B18.2.3.6M | M12 to M36 |
| DIN 6914 | M12 to M36 |
| UNI 5712 | M12 to M36 |
| ISO 7412 | M12 to M36 |
| DIN-EN 14399-4 | M12 to M36 |
Galvanized J Bolts Weight Chart
| LENGTH | DIAMETER | ||||||
|---|---|---|---|---|---|---|---|
| M36 | M30 | M27 | M24 | M22 | M20 | M16 | |
| 40 | 10.28 | ||||||
| 130 | 152.18 | 99.94 | 77.55 | 59.96 | 48.75 | 38.70 | 24.30 |
| 50 | 25.20 | 19.25 | 11.86 | ||||
| 65 | 50.34 | 37.29 | 29.67 | 22.96 | 14.23 | ||
| 55 | 33.74 | 26.69 | 20.50 | 12.65 | |||
| 95 | 124.89 | 81.13 | 63.82 | 47.94 | 38.62 | 30.36 | 18.96 |
| 75 | 108.91 | 70.03 | 54.83 | 40.84 | 32.66 | 25.43 | 15.81 |
| 60 | 48.09 | 35.22 | 28.18 | 21.73 | 13.44 | ||
| 70 | 67.25 | 52.58 | 39.07 | 31.16 | 24.19 | 15.02 | |
| 80 | 112.90 | 72.80 | 57.08 | 42.62 | 34.15 | 26.66 | 16.60 |
| 110 | 136.20 | 88.84 | 68.56 | 52.85 | 42.78 | 33.77 | 21.14 |
| 90 | 120.89 | 78.35 | 61.57 | 46.17 | 37.13 | 29.13 | 18.17 |
| 85 | 116.90 | 75.58 | 59.33 | 44.39 | 35.64 | 27.89 | 17.39 |
| 100 | 128.88 | 83.90 | 66.07 | 49.72 | 40.12 | 31.59 | 19.75 |
| 120 | 144.19 | 94.39 | 73.06 | 56.41 | 45.77 | 36.24 | 22.72 |
| 150 | 168.16 | 111.04 | 86.54 | 67.06 | 54.72 | 43.93 | 27.46 |
| 160 | 176.15 | 116.59 | 91.04 | 70.61 | 57.70 | 46.10 | 29.03 |
| 140 | 160.17 | 105.49 | 82.05 | 63.51 | 51.73 | 41.17 | 25.88 |
| 170 | 184.14 | 122.14 | 95.53 | 74.16 | 60.69 | 48.57 | 30.61 |
| 210 | 216.10 | 144.34 | 113.52 | ||||
| 180 | 192.13 | 127.69 | 100.03 | 77.71 | 63.67 | 51.03 | 32.19 |
Square J Bolt Applications
- Anchoring Beams
- Concrete Foundations
- Construction
- Heavy Duty Applications
- Structural Steel
