Stainless Steel Hex Bolts

Stainless Steel Hex Bolts Specifications

Stainless Steel Hex Bolts Aspects

Ready Stock M2 to M120
Custom Sizes Up to 4"
Length 3mm to 200mm
International Standard DIN 933, DIN 931, ISO 4014, ISO 4017, ASTM A193
Material Grade SS 304, SS 304L, SS 316, SS 316L, SS 904L
Thread Type Metric, UNC, UNF, BSW
Finish Plain, Zinc Plated, Hot Dip Galvanized, PTFE
Application Oil & Gas, Marine, Petrochemical, Construction, Power Plants
SS Hex Bolt

Hex Head Stainless Steel Bolts

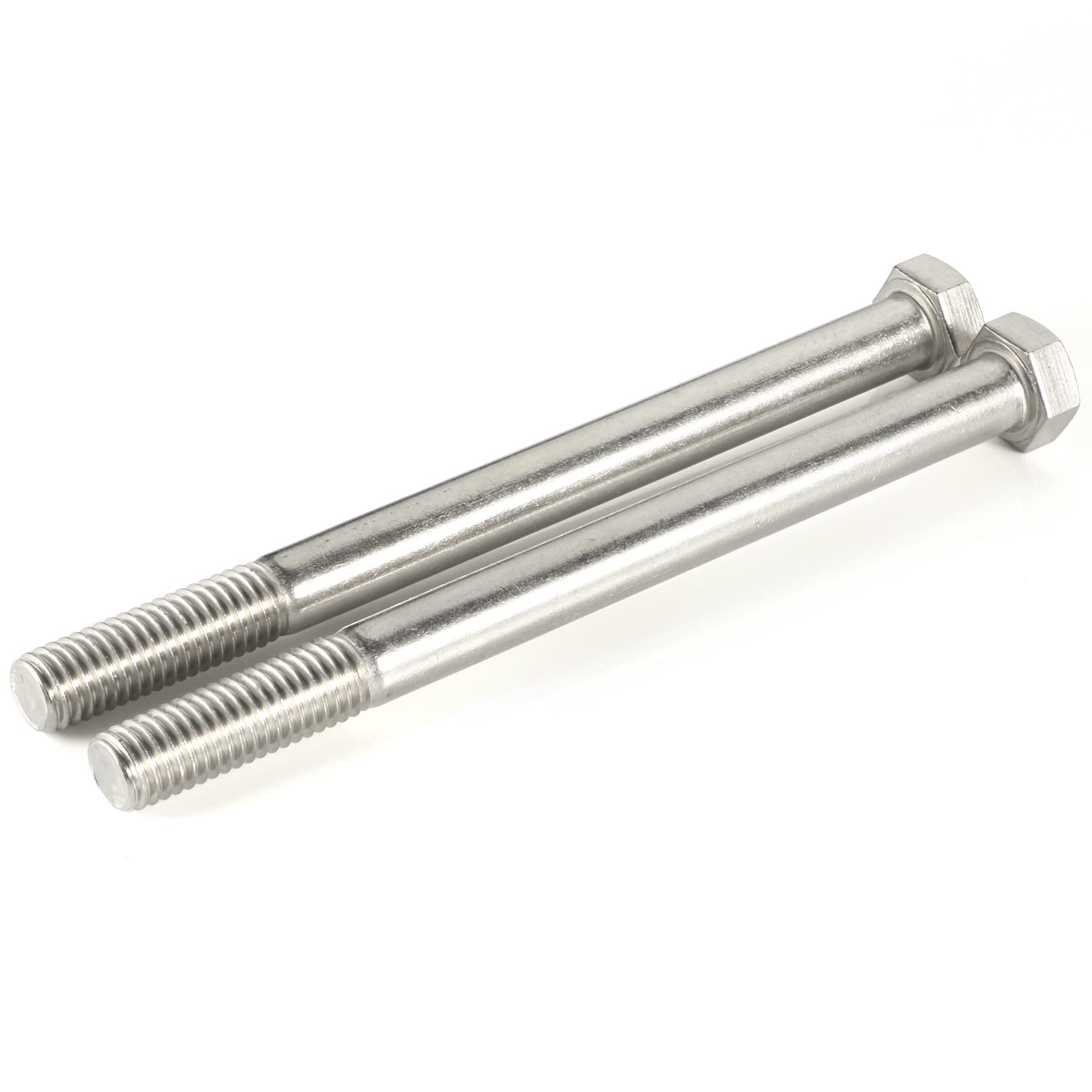

Partially Threaded Bolt

Stainless Steel Partially Threaded Hex Bolt

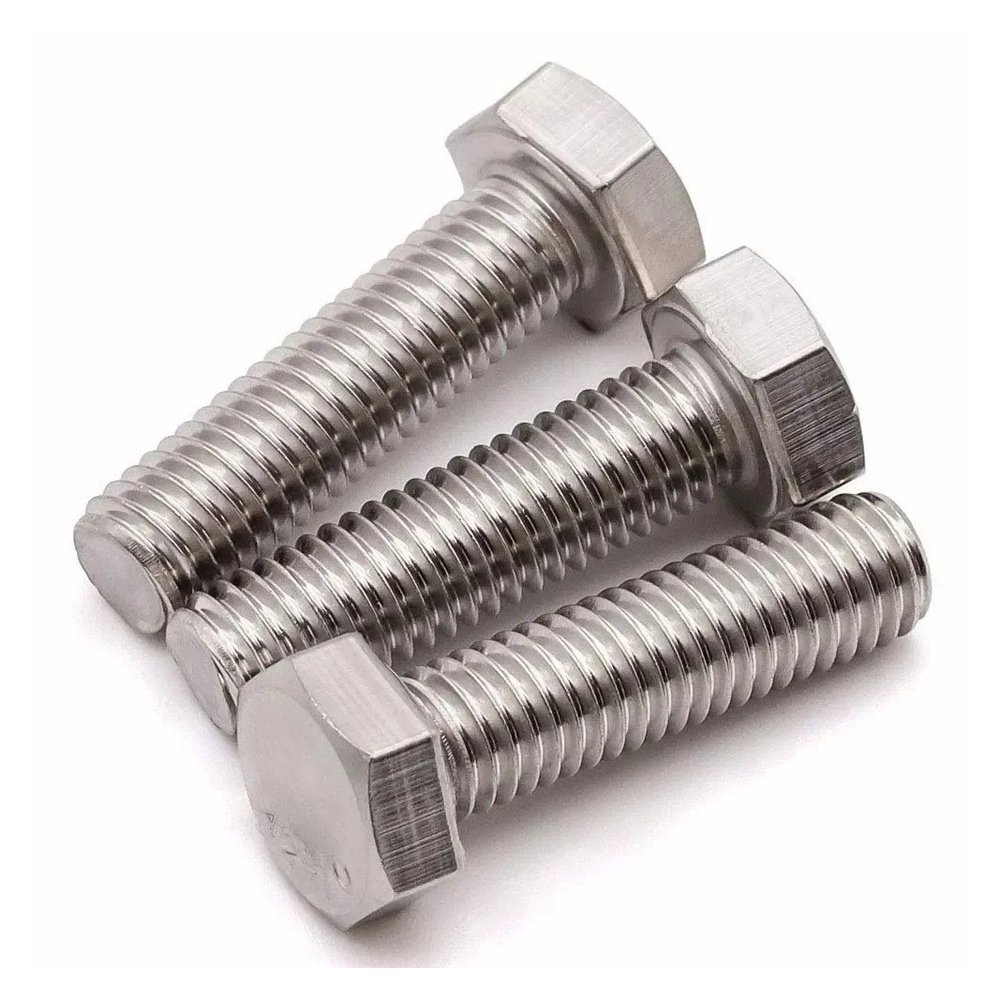

Threaded Bolt

SS Hex Head Bolt

Table of Contents

Arrow Piping Solutions is a leading manufacturer and supplier of Stainless Steel Hex Bolts, available in multiple sizes, grades and international standards for industrial applications worldwide.

Available Sizes

  • M2 to M100

Custom Manufacturing

  • Up to 4 Inches

Product Length

  • 6 mm to 500 mm

Thread Type

  • Fine Thread
  • Coarse Thread

Manufacturing Process

  • Cold Forging
  • CNC Machined
  • Hot Forging

Quality Tolerance

  • ±0.01 mm to ±0.05 mm

Stockist and Supplier of Stainless Steel Hexagonal Bolt in M4, M10, 1/2", 3/8", 5/16" and Custom Size

SS 316 Hexagon Bolt Size Chart

Thread Size M4 M6 M5 M8 M12 M10 M14 M20
Thread Dia 0.7 1 0.8 1.25 1.75 1.5 2 2.5
Threaded Shank Length (125–200mm) n/a 24mm 22mm 28mm 36mm 32mm 40mm 52mm
(up to 125mm) 14mm 18mm 16mm 22mm 30mm 26mm 34mm 46mm
(200+mm) — — — — 49mm 45mm 53mm 65mm
Thread Width 7 10 8 13 19 17 22 30
Head Width 2.8 4 3.5 5.3 7.5 6.4 8.8 12.5
Thread Size M12 M20 M16
Thread Width 17.5–18 mm 29–30 mm 23–24 mm
Thread Pitch 1.75 2.5 2
Radius Under Head 0.6 mm 0.8 mm 0.6 mm
Head Width 7.5 mm 12.5 mm 10 mm

Refer SS Hex Bolt Price List and DIN 933 Hex Bolt Torque Chart Below

Price List of Stainless Steel Hex Head Bolt

Arrow Piping Solutions is a leading manufacturer and supplier of Stainless Steel Hex Bolts in India, offering premium quality fasteners with multiple surface finishes, customized packaging and fast worldwide delivery.

Are you looking for the best deal on Stainless Steel Hex Bolts? Get an instant quotation from our sales team. Contact Us

Stainless Steel Hex Bolts Torque Chart

Heavy Hex Bolt Size 1/4-20 1/4-28 5/16-18 5/16-24 3/8-16 3/8-24 7/16-14 7/16-20 1/2-13 1/2-20 9/16-12 9/16-18 5/8-11 5/8-18 3/4-10 3/4-16
316 Stainless Steel Torque (in-lbs) 78.8 99 138 147 247 271 393 418 620 700 890 940 1250 1310 1875 1950
18-8 SS Torque (in-lbs) 75.2 94 132 142 236 259 376 400 595 675 860 915 1210 1280 1830 1900

Exporter of Stainless Steel Alloys Fully Threaded Hex Bolt as per JIS B1180, ISO 4014, DIN 933 Standard

SS Metal Double Ended Hex Bolt Chemical Composition

Grades AISI C Mn Si Cr P S Mo Ni
A2 304 0.08 2.0 1.0 15.0–20.0 0.05 0.03 0.0 8.0–19.0
A4 316 0.08 2.00 1.00 16.0–18.5 0.045 0.030 2.00–3.00 10.0–15.0
A1 202 0.12 6.5 1.0 0.20 16.0–19.0 0.15–0.35 0.7 5.0–10.0
A3 321 0.08 2.0 1.0 19.0 0.05 0.03 0.0 9.0–12.0
F1 430 0.12 1.0 1.0 15.0–18.0 0.04 0.03 0.0 1.0

Stainless Steel Fully Threaded Hex Bolt Equivalent Properties

ASTM 301 304 304L 309 304N
GB 12Cr17Ni7 06Cr19Ni10 022Cr19Ni10 16Cr23Ni13 06Cr19Ni10N
DIN 1.4319 1.4301 1.4306 1.4828 1.4315
JIS SUS301 SUS304 SUS304L SUH309 SUS404N1
BS 301S21 304S15 304S12 — —
ASTM 316 316Ti 316LN 316L 317L
GB 06Cr17Ni12Mo2 06Cr17Ni12Mo3Ti 022Cr17Ni13Mo2N 022Cr17Ni12Mo2 022Cr19Ni13Mo3
DIN 1.4401 1.4571 1.4429 1.4404 1.4438
JIS SUS316 SUS316Ti SUS316LN SUS316L SUS317L
BS 316S16 320S31 316S61 316S12 317S12

Our Stainless Steel Hex Bolts Range

Arrow Piping Solutions is a leading manufacturer and supplier of Stainless Steel Hex Bolts in India. We offer premium quality SS Hex Head Bolts in Metric, UNC, UNF and customized thread specifications for industrial applications.

Stainless Steel Hex Bolt

Stainless Steel Hexagon Bolt

Fully Threaded Hex Bolt

SS Fully Threaded Hex Bolt

SS Hex Bolt

SS Hex Bolt

SS Hex Head Bolt Shear Strength

Grade Grade 2 Hex Bolts Grade 5 Hex Bolts Grade 8 Hex Bolts
Diameter 0.25" To 1.5" 0.25" To 1.5" 0.25" To 1.5"
Shear Strength 44,400 PSI 72,000 PSI 90,000 PSI
Tensile Strength 74,000 PSI 120,000 PSI 150,000 PSI

Load Capacity of SS Hexagon Bolt

Size 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 1" 1¼" 1⅜"
Grade 5 Hex Bolt 2700 lbf 4450 lbf 6600 lbf 9050 lbf 12100 lbf 19200 lbf 28400 lbf 51500 lbf 71700 lbf 85500 lbf
Grade 8 Hex Bolt 3800 lbf 6300 lbf 9300 lbf 12800 lbf 17000 lbf 27100 lbf 40100 lbf 72700 lbf 116300 lbf 138600 lbf

Stainless Steel Hex Bolt Standard

Standard ASME B18.2.1 DIN 931 / DIN 933 BS 1769 ASME B18.2.3.6M ISO 7412 ASME B18.2.3.7M UNI 5712 EN 14399-4 DIN 6914
Size 3/8" to 3" M2 to M80 ½" to 2" M12 to M36 M4 to M50 M2 to M42 M12 to M36 M12 to M36 M8 to M30

Big Size Hex Bolt Manufacturers in India Providing Custom Sizes with Fast Delivery.

METRIC (ANSI B18.2.3.6M)
Big Size Hex Bolt Size & Thread Pitch E F G H R LT
Body Diameter Width Across Flats Width Across Corners Head Height Radius of Fillet L ≤125 125+ L ≤20
Max Min Max Min Max Min Max Min Min
M12×1.75 12.7 11.3 21 20.16 24.25 22.78 7.95 7.24 0.6 30 36
M14×2 14.7 13.3 24 23.16 27.71 26.17 9.25 8.51 0.6 34 40
M16×2 16.7 15.3 27 26.16 31.18 29.56 10.75 9.68 0.6 38 44
M20×2.5 20.84 19.16 34 33 39.26 37.29 13.4 12.12 0.8 46 52
M24×3 24.84 23.16 41 40 47.34 45.2 15.9 14.56 0.8 54 60
M30×3.5 30.84 29.16 50 49 57.74 55.37 19.75 17.92 1 66 72
M36×4 37 35 60 58.8 69.28 66.44 23.55 21.72 2 78 84
