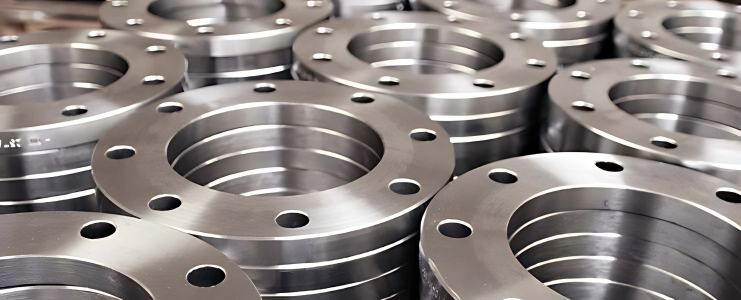

Inconel 625 Flanges
Arrow Piping Solutions is a trusted manufacturer and exporter of Inconel 625 Flanges, offering high-performance solutions across various industries. We provide a comprehensive range of Inconel 625 Flanges including Spectacle Blind Flanges, ASTM B564 Inconel 625 Pipe Flanges, Plate Flanges, Socket Weld Flanges, SORF Flanges, Lap Joint Flanges, and Threaded Flanges. As a leading Inconel 625 Flanges manufacturer in India, we ensure superior durability and resistance properties in all our products.
We supply our Inconel® Inconel 625 Flanges at competitive prices in Mumbai and across India. Whether it's Inconel 625 Plate Flanges or ASTM B564 Inconel 625 Flanges, Arrow Piping Solutions offers a detailed price list to help customers make informed purchasing decisions. Our flanges are known for their corrosion resistance, high strength, and excellent weldability.
Arrow Piping Solutions manufactures Inconel 625 Flanges using premium-grade raw materials, procured from certified suppliers. All raw materials undergo strict quality inspections before entering production. Our facility is equipped with advanced machinery and a skilled team that produces flanges according to global standards and customer specifications.
We maintain a ready stock of Inconel 625 Flanges in various lengths, outer diameters, internal diameters, sizes, and wall thicknesses. Our production complies with ASTM, ASME B16.5, and other relevant international standards. Weight and thickness data are provided to ensure optimal selection for every application.
Arrow Piping Solutions is dedicated to meeting urgent requirements with prompt dispatch and bulk availability. We design products for optimal performance in demanding environments, including oil & gas, marine, power generation, and nuclear industries.
Inconel 625 Flanges Specifications
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Dimension Standard | ANSI B 16.5, BS 1560. BS 10, IS 6392, B-2.1 NPT, API, DIN, JIS. MSS SP 44 |
| Standard | STM / ASME SB 564 / 160 / 472. |
| Size | ½” NB to 12” NB |
| Class / Pressure | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS , ASA 150#, ASA 300# DIN ND 6,10,16,25,40 Etc |
ASME SB564 Inconel 625 Flanges Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
Inconel 625 Flanges Sizes in Stock:
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
| Table D Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
| Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
| PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flanges | 95 | 65 | 4 | M12 | 14 |
Chemical Composition of Inconel 625 Flanges
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
|---|---|---|---|---|---|---|---|---|
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 | 58.0 min | 20.0 – 23.0 |
Mechanical Properties of Inconel 625 Flanges
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.4 g/cm³ | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 705 | 42.5% |
Inconel 625 Flanges Application Industries
Arrow Piping Solutions supplies Inconel 625 Flanges for use in the following industries and applications:
- Chemical Industry
- Petrochemical Industry
- Marine & Power Transmission Industry
- Power Plants
- Energy Industries
- Furniture
- Pharmaceutical Processing Industry
- Modern Architecture
- Home Appliances
- Water Waste Projects
- Synthetic Fiber
- Heat Exchanger
- Fluid Piping
- Dairy and Food Processing
