Stainless Steel Eye Bolt

Home / Stainless Steel Eye Bolt
Stainless Steel Hex Bolts

Most Trusted 316 SS Lifting Eye Bolt Manufacturer in India

Stainless Steel Eye Bolt Features

Ready Stock M6 To M50
Custom Sizes Up to 4”
Length 5mm to 24mm
International Standard ASME B18.2.2, ASME B18.2.1, DIN 970, DIN 933, DIN 931
ISO and DIN Standard ISO 3266, DIN 444, DIN 582, DIN 580
Raw Material Origin United Kingdom, Morocco, South Africa, Saudi Arabia, Europe, New Zealand, Algeria, Australia, India etc.
MTC EN 10204/3.1B
Suitable Environment Salt Water and Mild Acids
Thread Pitch Fine Thread and Coarse Thread
Finish Phosphating, HDG, Oxidation
Threads UNJ, UNC, UNF, Rolled, UNR
Temperature Range -20°C to +200°C

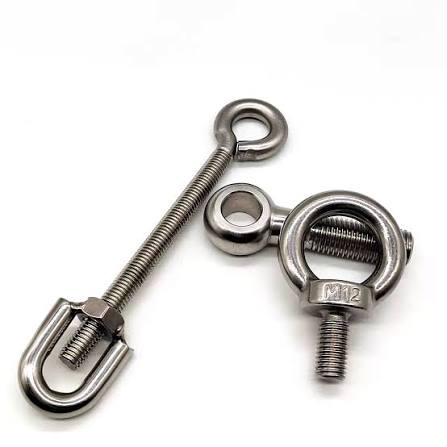

SS Non-Shouldered Eye Bolt

SS Non-Shouldered Eye Bolts

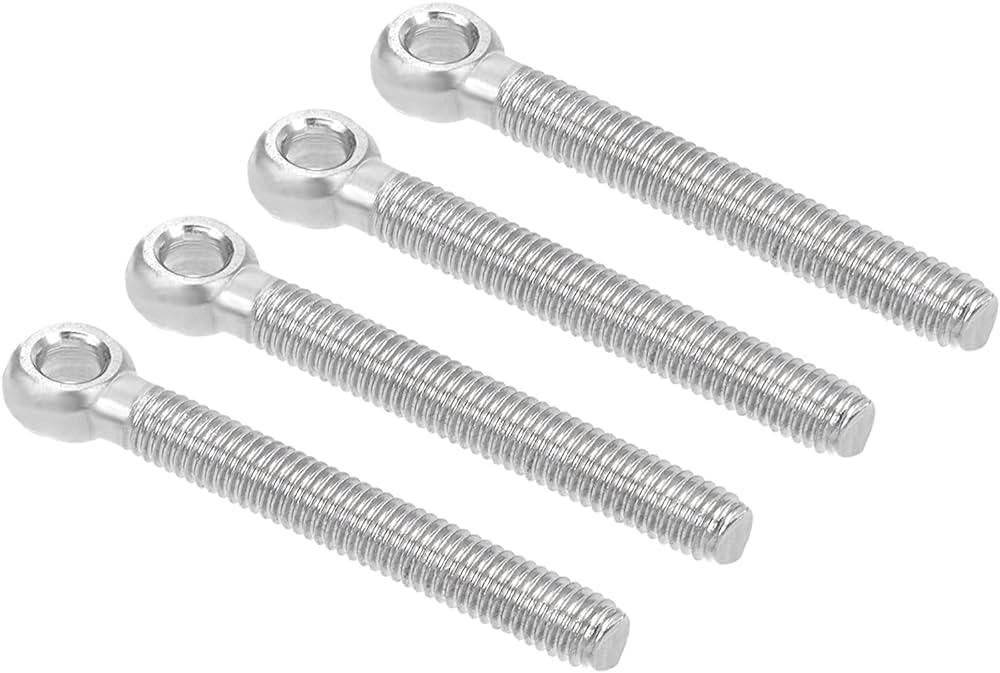

Stainless Steel 304 Screw Eye Bolt

Stainless Steel 304 Screw Eye Bolts

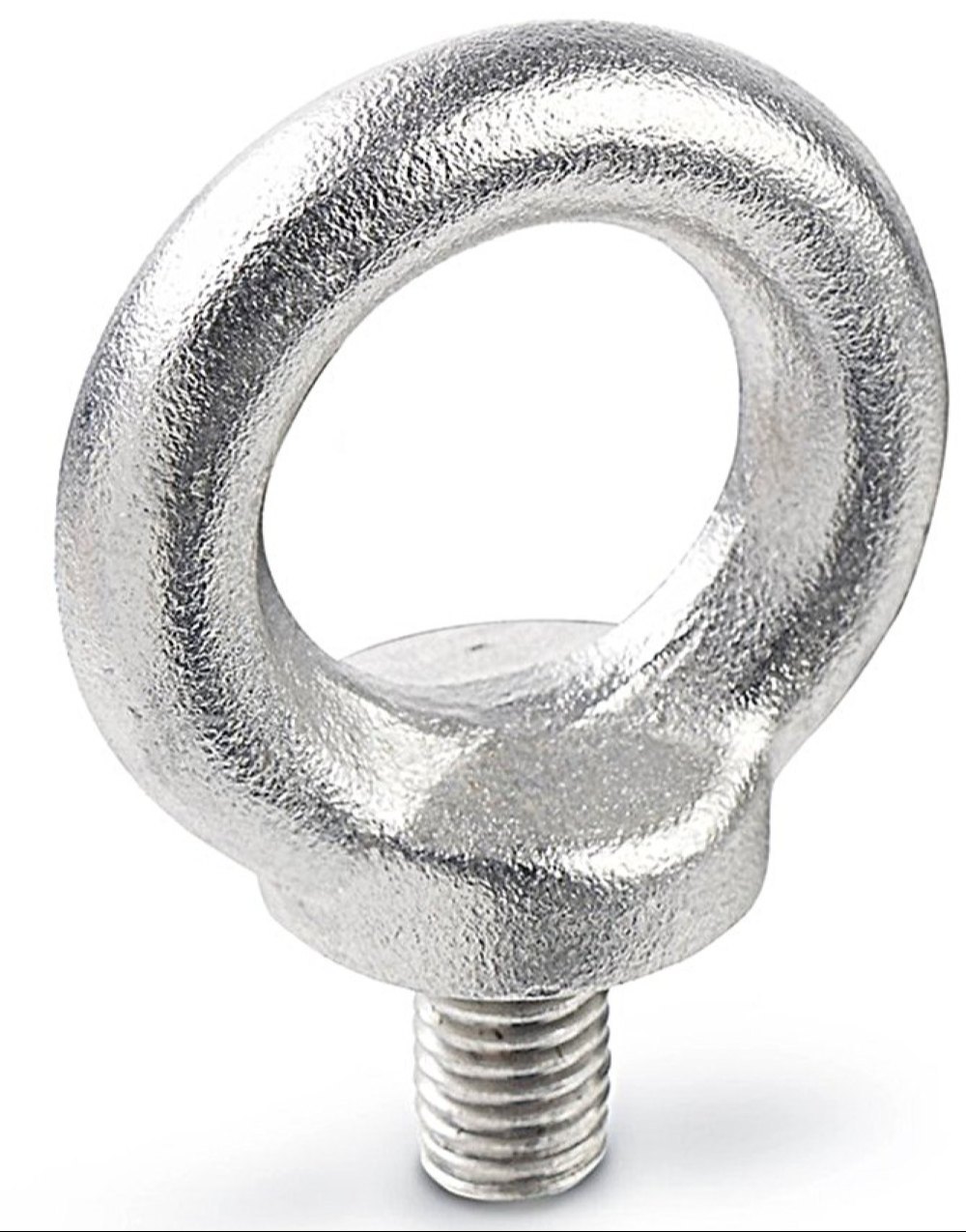

AISI 316L Nut Eye Bolt

AISI 316L Nut Eye Bolts

Table of Content

Stainless Steel Eye Bolts Specification

Stainless Steel Eye Bolts Metric Size

  • M6 to M16

SS 316 Eye Bolt Diameter

  • 1/4” to 1/2”

Stainless Steel 304 Eye Bolt Length

  • 5mm to 24mm

SS Eye Bolt Manufacturing Methods

  • Cold Forging
  • CNC Machined
  • Hot Forging

SS Eye Bolts Standards

  • PN 82425
  • UNI 6058
  • CSN 21167
  • ANSI B18.15

Stainless Steel Lifting Eye Bolt Grades

  • SS 304, 304L
  • 316, 316L
  • 317, 321
  • 410, 310
  • 904L, 317I

Welded Eye Bolt Packing Option

  • Pallet
  • Small Box
  • Carton Box
  • Pallet
  • As Required

Finishes

  • Plain
  • Self Colored
  • Zinc Plated

Stainless Steel Eye Bolts Testing

  • 100% Tested SS Eye Bolts with MTC EN 10204 3.1/3.2

Heavy Duty Stainless Steel Eye Bolts Threads Types

  • UN8
  • BSW
  • ACME
  • UNF
  • UNR
  • UNM
  • BSF
  • UTS
  • UNC

Stainless Steel 316 Eye Bolt Types

  • Welded Eye Bolt
  • Threaded Eye Bolt
  • Ring Eye Bolt
  • Marine Eye Bolt
  • Lifting Eye Bolt
  • Machinery Eye Bolts
  • Screw Eye Bolts
  • Swing Eye Bolt
  • Heavy Duty Screw Eye Hooks

Stainless Steel 304L Metric Eye Bolt Value Added Services

  • Head Shank Drilling
  • Thread Locking
  • Head Painting
  • Bagging

Stockist of SS 304 Welded Eye Bolt in Size 3/8 Inch With UNC Thread as Per DIN 580 Standards

Welded Eye Bolt Dimensions

Stainless Steel Eye Bolts Manufacturer in India who offers Accurate Dimensions

A (Size) 3/16" 3/16" 3/16" 1/4" 1/4" 1/4" 1/4" 1/4" 5/16"
B 0.37" 0.37" 0.37" 0.50" 0.50" 0.50" 0.50" 0.50" 0.63"
C 0.85" 1.50" 1.75" 2.00" 1.50" 2.00" 2.00" 2.00" 2.00"
D 1.00" 2.00" 3.00" 3.00" 2.00" 4.00" 6.00" 5.00" 3.00"
THREAD (UNC) 10/24 10/24 10/24 1/4"-20 1/4"-20 1/4"-20 1/4"-20 1/4"-20 5/16"-18
X 0.70" 0.70" 0.70" 0.93" 0.93" 0.93" 0.93" 0.93" 1.17"
Y 1.77" 2.77" 3.77" 3.96" 2.96" 4.96" 6.96" 5.96" 4.17"
Z 0.38" 0.38" 0.38" 0.46" 0.46" 0.46" 0.46" 0.46" 0.62"
WLL (lb) 250 250 250 400 400 400 400 400 600
WT (lb) 0.02 0.03 0.03 0.06 0.06 0.08 0.10 0.08 0.12
A (Size) 5/16" 5/16" 3/8" 3/8" 3/8" 3/8" 1/2" 1/2" 1/2"
B 0.63" 0.63" 0.75" 0.75" 0.75" 0.75" 1.00" 1.00" 1.00"
C 2.00" 2.00" 2.00" 2.00" 2.00" 2.00" 2.00" 2.00" 2.00"
D 5.00" 6.00" 3.00" 5.00" 4.00" 6.00" 4.00" 3.00" 6.00"
THREAD (UNC) 5/16"-18 5/16"-18 3/8"-16 3/8"-16 3/8"-16 3/8"-16 1/2"-13 1/2"-13 1/2"-13
Nominal Size M3 M5 M4 M6 M48 M8 M12 M10 M20 M16 M36 M24 M42
Thread Pitch (mm) 0.5 0.8 0.7 1.0 5.0 1.25 1.75 1.5 2.5 2.0 4.0 3.0 4.5

Exporter of Stainless Steel 316L Eye Hooks for Marine Industry at Lowest Price in India

Price List of Stainless Steel Eye Bolt

Find the Most Recent Stainless Steel Eye Bolt Price List. Directly Contact Us

Dealer and Distributor of SS 304L Machinery Eye Bolts in Galvanized Finish at Low Cost in Mumbai

Stainless Steel 316 Eye Bolt Sizes

Size (A × Pitch × B) (mm) 6×1.0×25.4 7×1.0×28.5 6×1.0×12 7×1.0×14 8×1.25×16 10×1.5×20 8×1.25×31.7 10×1.5×35 12×1.75×38 12×1.75×24 14×2.0×28 16×2.0×44.5 14×2.0×40
Outside Eye Dia (C) (mm) 30 36.5 30 36.5 43 46 43 46 54 54 58 65 58
Inside Eye Dia (D) (mm) 19 22 19 22 25 27 25 27 30 30 33 35 33
Overall Length (E) (mm) 64.3 75.4 50.9 60.9 72.4 81 88.1 96 106.4 92.4 99.4 125.4 115.0
Shoulder Dia (H) (mm) 13.5 15.1 13.5 15.1 16.7 19.8 16.7 19.8 23 23 24.6 26.2 24.6
Shoulder Thickness (G) (mm) 4 4 4 4 4 4 4 4 4 4 5.6 5.6 5.6
Size (A × Pitch × B) (mm) 22×2.5×44 24×3.0×48 20×2.5×57 22×2.5×63.5 24×3.0×63.5 27×3.0×70 27×3.0×48 30×3.5×60 36×4.0×72 30×3.5×76 36×4.0×89 45×4.5×84 42×4.5×80
Outside Eye Dia (C) (mm) 90.4 90.4 81 90.4 90.4 103 103 112.7 131.8 112.7 131.8 152.4 152
Inside Eye Dia (D) (mm) 46 46 41 46 46 51 51 55 63 55 63 73 73

Stainless Steel 304L Eye Hooks Application

Stainless Steel Eye Bolts Supplier in India Who Deliver to Construction and Marine Industries

  • Marine Applications
  • Lifting and Rigging
  • Securing Loads
  • Overhead Hanging
  • Construction and Building
  • Hoisting and Pulling
  • Outdoor and Recreational Equipment

DIN 580 Eye Bolts Weight

Weight in kg per 1,000 pieces. The weights shown below are approximate values.

Size M10 M8 M16 M12 M24 M20 M36 M30
Weight (kg/ piece) 0.11 0.06 0.28 0.18 0.74 0.45 2.65 1.66
Size M48 M42 M64 M56 M80 M72 — M100
Weight (kg/ piece) 6.38 4.03 12.4 8.8 34.2 23.3 — 49.1

DIN 582 Eye Bolts Weight

Size M10 M8 M12 M20 M16 M30 M24 M36
Weight (kg/pcs) 0.09 0.05 0.16 0.36 0.24 1.32 0.72 2.08
Size M48 M42 M56 M72 M64 M100 M80 —
Weight (kg/pcs) 5.02 3.11 6.69 18.5 9.3 36.4 27.3 —

How are SS Eye Bolt Connected?

  • Direct Screw-In Connection
  • Welding
  • Nut and Washer Assembly
  • Toggle Mechanism
  • Swiveling Connection
  • Built-In Load Cell

Types of Stainless Steel Eye Bolt

Stainless Steel Eye Bolts Supplier in India Who Offers Various Types

SUS 316 Shouldered Eye Bolts

SUS 316 Shouldered Eye Bolts

AISI 304 Forged Eye Bolts

AISI 304 Forged Eye Bolts

SS 316 Bent Eye Bolts

SS 316 Bent Eye Bolts

UNS S30400 Machinery Eye Bolts

UNS S30400 Machinery Eye Bolts

1.4401 Stainless Steel Welded Eye Bolt

1.4401 Stainless Steel Welded Eye Bolt

DIN 1.4307 Threaded Eye Bolt

DIN 1.4307 Threaded Eye Bolt

Refer Heavy Duty Stainless Steel Eye Bolts Dimension Chart

AISI 304L Eye Bolt Dimension

Stainless Steel Eye Bolts Manufacturer in India who offers Accurate Dimensions

Dimension M6 M8 M10 M12 M16 M20 M24 M30
b (+2P−0) 18 22 26 30 38 46 54 66
Pitch (P) 1.0 1.25 1.5 1.75 2.0 2.5 3.0 3.5
d3 (Max) 14 18 20 25 32 40 45 55
d3 (Min) 12.9 16.9 18.7 23.7 30.4 38.4 43.4 53.1
d2 H9 6 8 10 12 16 18 22 27/28
Radius (r) 4 4 4 6 6 6 10 10

SUS 316L Lifting Eye Bolt Dimension

Stainless Steel Lifting Eye Bolt Manufacturer in India Offering DIN 580 Eye Bolts with Accurate Dimensions and International Standards.

DIN 580 – LIFTING EYE BOLTS (COLLAR EYEBOLTS FOR LIFTING PURPOSES)
EQUIVALENT NORMS: CSN 21369; PN 82472; UNI 2947;
D1 D2 B D3 H K D4
M6 27 12 19 27.5 6.5 14
M8 36 13 20 36 8 20
M10 45 17 25 45 10 25
M12 54 20.5 30 53 12 30
M14 63 27 35 62 14 35
M16 63 27 35 62 14 35
M20 72 30 40 71 16 40
M22 90 36 50 90 20 50
M24 90 36 50 90 20 50
M27 108 45 65 109 24 60
M30 108 45 65 109 24 60
M33 126 54 75 128 28 70
M36 126 54 75 128 28 70
M42 144 63 85 147 32 80
M45 166 68 100 168 38 90
M48 166 68 100 168 38 90

How to Choose Right 316 SS Eye Bolt?

  • Load Capacity
  • Material
  • Thread Type
  • Installation
  • Swivel Requirement
  • Safety Regulations
