SS 304 Welded Anchor Bolts Manufacturer in India
Stainless Steel Anchor Bolt Characteristics
| Ready Stock |
M6.5 to M12 |
| HSN |
7318 |
| Length |
6" to 30" |
| International Standard |
DIN 529, BS 7419 |
| European & American Standard |
ASTM A380, ASTM A380M |
| Raw Material Origin |
Australia, Saudi Arabia, United Kingdom, Europe,
New Zealand, India, Algeria, Morocco,
South Africa and more.
|
| MTC |
EN 10204 / 3.1B |
| Suitable Environment |
Structural Columns |
| Thread Pitch |
Fine Thread and Coarse Thread |
| Finish |
Phosphating, Oxidation, HDG |
| Threads |
UNJ, UNC, UNF, Rolled, UNR |
| Temperature Range |
-30°C to 593°C |
|
To Know About Latest Price List of Stainless Steel Anchor Bolt Please
Contact Us
|

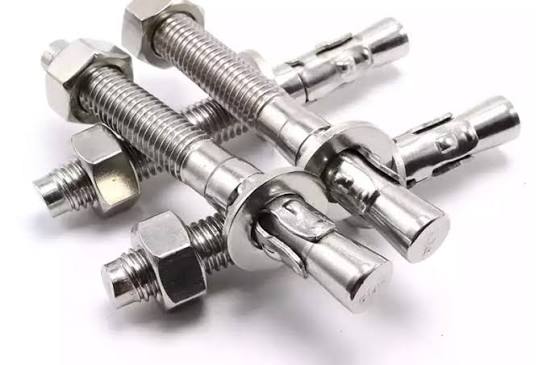

SS 304 Bent Bar Anchor Bolt

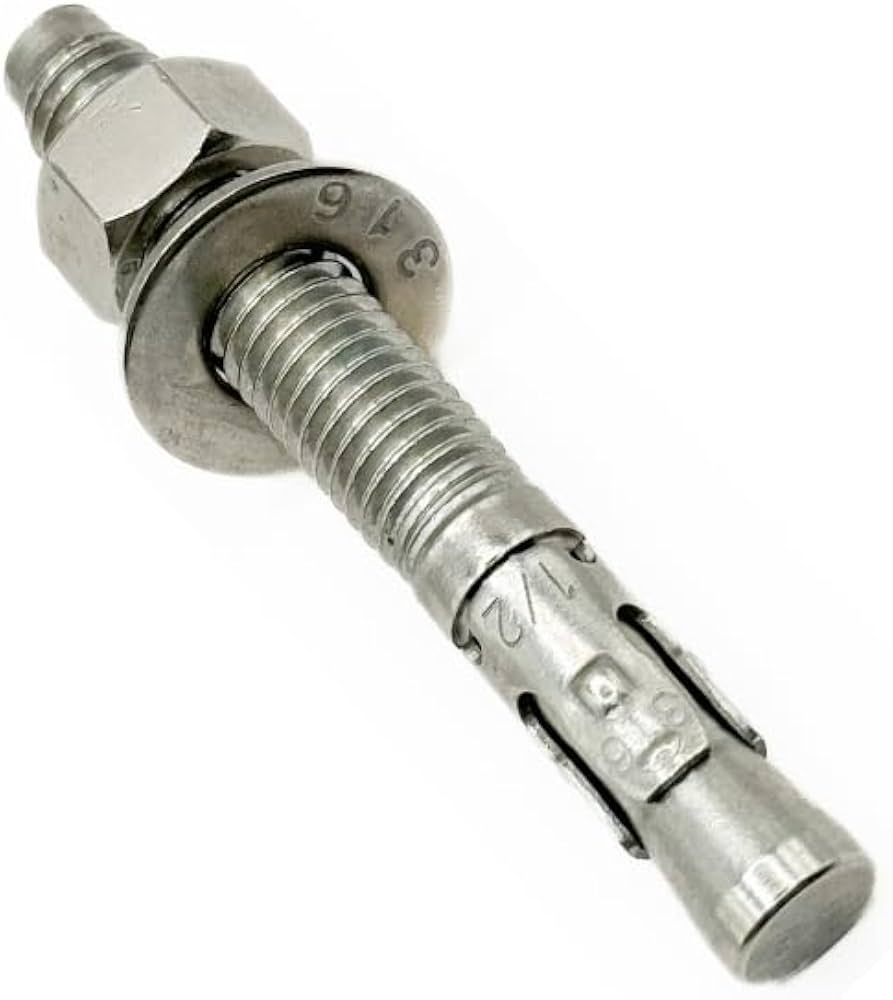

316 Stainless Steel Swedge Bolts

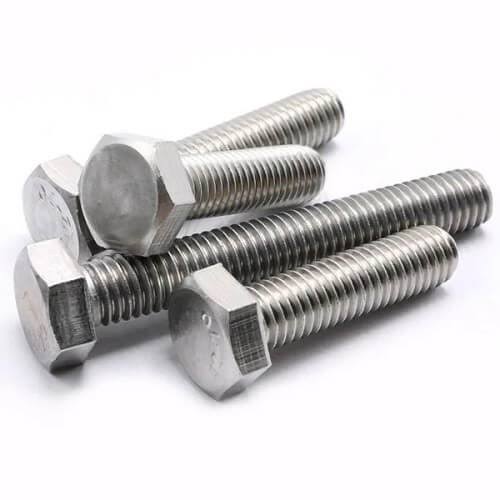

SUS 304L Headed Anchor Bolts
The 304 Stainless Steel Anchor Bolts are corrosion resistant, particularly to chloride ion
corrosion stress.
Because of their high molybdenum content, these anchor bolts are ideal for corrosive
applications.
There are different forms and shapes, such as L and J, that are intended for specialised uses.
The 310 Stainless Steel J-Bolts are often utilized to secure components to a concrete surface,
while other stainless steel anchor bolts are widely used in industrial applications.
Anchor bolts are available in different types such as expansion, sleeve, bent and wedge anchor
bolts.
Stainless Steel 316 Bent Anchor Bolts are commonly used where components need to be fixed
securely.
Expansion anchors are preferred when stronger connections are required.
In applications requiring additional spacing between the bolt hole and head,
stainless steel sleeve anchor bolts are widely used.
These bolts, including 316 Stainless Steel Toggle Bolts and similar products,
are manufactured from solid corrosion-resistant stainless steel for long service life.
Stainless Steel Anchor Bolt Specification
Check Stainless Steel Anchor Bolt Supplier in India who provides Customer Specification.
Stainless Steel Anchor Bolts Size
Stainless Steel 316 Stone Bolt Length
AISI 304 Welded Anchor Bolts Diameter
Stainless Steel 316 Concrete Anchors Thread Pitch
SS 304L Bent Anchor Bolts Manufacturing Methods
- CNC Machined
- Cold Forging
- Hot Forging
UNS S31603 Sleeve Anchor Bolts Tolerance
- +/- 00.01 mm to +/- 00.05 mm
SS 304L Concrete Anchors Melting Point
SUS 316L Bent Bar Anchor Bolt ASTM Standards
304 Stainless Steel Anchor Bolts Grades
310 Stainless Steel J-Bolts Surface Finish
- Phosphating, Zinc Impregnation
- Plain, Electric Galvanized
- Oxidation, DACROMET
Stainless Steel Metal Anchor Foundation Bolts BS Standards
- BS 6105 A2-70
- BS 6105 A4-70
- BS 6105 A2-50
- BS 6105 A4-80
SS Hex Head Anchor Bolt Testing
- 100% Tested Stainless Steel Anchor Bolt with MTC EN 10204 3.1 / 3.2
Supplier of Stainless Steel 316 Concrete Anchors in M16x120mm With Third Party Inspection Reports
SS L Hook Anchor Bolts Size Chart
Find Stainless Steel Anchor Bolt Supplier in India who provides Custom Sizes.
| Thread Length |
1-3/4" |
1-3/4" |
1-3/4" |
1-3/4" |
1-3/4" |
1-3/4" |
2" |
2" |
2" |
2" |
3-3/4" |
3-3/4" |
| Anchor Dia. |
1/2" |
3/8" |
1/2" |
3/8" |
1/2" |
1/2" |
1/2" |
1/2" |
1/2" |
5/8" |
5/8" |
5/8" |
| Anchor Length |
6" |
8" |
8" |
6" |
12" |
10" |
14" |
18" |
16" |
8" |
12" |
10" |
| Anchor Hook Length |
1-1/2" |
1" |
1-1/2" |
1" |
1-1/2" |
1-1/2" |
1-1/2" |
1-1/2" |
1-1/2" |
2" |
2" |
2" |
| Thread Length |
3-3/4" |
4" |
3-3/4" |
3-3/4" |
4" |
3-3/4" |
4" |
4" |
4" |
4" |
|
6-1/4" |
| Anchor Dia. |
3/4" |
5/8" |
3/4" |
5/8" |
3/4" |
3/4" |
3/4" |
1" |
1" |
1" |
|
1" |
| Anchor Length |
12" |
18" |
15" |
14" |
18" |
16" |
24" |
18" |
12" |
24" |
|
36" |
| Anchor Hook Length |
3" |
3" |
3" |
3" |
3" |
3" |
3" |
4" |
4" |
4" |
|
4" |
|
Vision Alloys is Stainless Steel Anchor Bolt Manufacturer in India
|
SS 304 Welded Anchor Bolts Applications
- Oil & Gas Industries
- Nuclear Energy Sector
- Chemical Industry
- Aerospace Industry
- Defence Industry
- Petroleum Industries
Refer to the Stainless Steel Foundation Bolts Tolerance and Weight Capacity
SS Hex Head Anchor Bolt Tolerance
| Types |
Steel Tolerances |
Concrete Tolerances |
| Anchor Bolts From |
- |
1/2 in., 1, 1¼ & bolts ... ± 3/8 in.
2½, ... ± 1/2 in.
3/4 in. & 7/8 in. bolts ... ± 1/4 in.
1¾, 2 in. bolts
|
| Elevation of Tops of Anchor Bolts |
± 1/2 in. |
± 1/2 in. |
| Anchor Bolts in a Dimension |
≤ 1/8 in. |
- |
| Anchor Bolt Projection |
≤ 1/4 in. |
- |
Stainless Steel 316 Wedge Anchor Bolt Weight Chart
| Anchor Bolt Size |
1/4" |
5/16" |
3/8" |
1/2" |
5/8" |
3/4" |
7/8" |
1" |
1-1/8" |
1-1/4" |
1-1/2" |
| Length (mm) |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 |
200 |
220 |
250 |
| Approx. Weight (Kg/100 Pcs) |
1.28 |
1.84 |
2.66 |
4.25 |
6.82 |
9.91 |
13.88 |
18.54 |
22.46 |
27.15 |
34.88 |
| Length (mm) |
275 |
300 |
325 |
350 |
375 |
400 |
450 |
500 |
550 |
600 |
650 |
| Approx. Weight (Kg/100 Pcs) |
38.74 |
42.66 |
46.78 |
51.24 |
55.87 |
60.43 |
68.92 |
77.56 |
86.24 |
95.48 |
104.82 |
| Length (mm) |
700 |
750 |
800 |
850 |
900 |
950 |
1000 |
1050 |
1100 |
1150 |
1200 |
| Approx. Weight (Kg/100 Pcs) |
112.96 |
121.75 |
130.82 |
139.44 |
148.36 |
157.28 |
166.84 |
176.42 |
186.54 |
196.48 |
206.25 |
|
Approximate Weight Chart for Stainless Steel Anchor Bolts
|
Refer SS Hex Head Anchor Bolt Grades and Strength Chart
Stainless Steel Bent Bar Anchor Bolt Equivalent Grades
| STANDARD |
SS 304 Anchor Bolt |
SS 304L Anchor Bolt |
SS 304H Anchor Bolt |
SS 310 Welded Anchor |
SS 310S Anchor Bolt |
SS 316 Anchor Bolt |
SS 316L Anchor Bolt |
SS 316H Anchor Bolt |
SS 317 Anchor Bolt |
SS 321 Anchor Bolt |
SS 347 Anchor Bolt |
| WNR |
1.4301 |
1.4306 / 1.4307 |
1.4301 |
1.4841 |
1.4845 |
1.4401 / 1.4436 |
1.4404 / 1.4435 |
— |
1.4449 |
1.4541 |
1.4550 |
| UNS |
S30400 |
S30403 |
S30409 |
S31000 |
S31008 |
S31600 |
S31603 |
S31609 |
S31700 |
S32100 |
S34700 |
| JIS |
SUS 304 |
SUS 304L |
— |
SUS 310 |
SUS 310S |
SUS 316 |
SUS 316L |
— |
SUS 317 |
SUS 321 |
SUS 347 |
| BS |
304S31 |
304S11 |
— |
310S24 |
310S16 |
316S31 / 316S33 |
316S11 / 316S13 |
316S51 |
317S12 |
321S12 |
347S17 |
| AFNOR |
Z7CN18-09 |
Z3CN18-10 |
— |
— |
— |
Z7CND17-11-02 |
Z3CND17-11-02 |
— |
Z3CN19-11 |
Z6CNT18-10 |
Z7CNNB18-10 |
| GOST |
08X18H10 |
03X18H11 |
— |
20Ch25N20S2 |
20Ch23N18 |
— |
03Ch17N14M3 |
— |
10X17H13M2T |
08X18H10T |
08X18H12B |
| EN |
X5CrNi18-10 |
X2CrNi18-9 |
— |
X15CrNi25-20 |
X8CrNi25-21 |
X5CrNiMo17-12-2 |
X2CrNiMo17-12-2 |
X2CrNiMo18-14-3 |
X2CrNiMo18-15-4 |
X6CrNiTi18-10 |
X6CrNiNb18-10 |
| ASTM |
304 |
304L |
304H |
310 |
310S |
316 |
316L |
316H |
317 |
321 |
347 |
Stainless Steel L Anchor Bolts Mechanical Properties
| Grade |
316/316L/316H Anchor Bolt |
310/310S Wedge Anchors |
304/304H/304L Stone Anchor Bolt |
317/317L Welded Anchor Bolt |
347/347H L Anchor Bolt |
904L J Anchor Bolt |
321/321H Swedge Bolt |
| Density |
8.0 g/cm3 |
7.9 g/cm3 |
8.0 g/cm3 |
7.9 g/cm3 |
8.0 g/cm3 |
7.95 g/cm3 |
8.0 g/cm3 |
| Melting Point |
1400°C (2550°F) |
1402°C (2555°F) |
1400°C (2550°F) |
1400°C (2550°F) |
1454°C (2650°F) |
1350°C (2460°F) |
1457°C (2650°F) |
| Tensile Strength |
Psi – 75000, MPa – 515 |
Psi – 75000, MPa – 515 |
Psi – 75000, MPa – 515 |
Psi – 75000, MPa – 515 |
Psi – 75000, MPa – 515 |
Psi – 71000, MPa – 490 |
Psi – 75000, MPa – 515 |
| Yield Strength (0.2% Offset) |
Psi – 30000, MPa – 205 |
Psi – 30000, MPa – 205 |
Psi – 30000, MPa – 205 |
Psi – 30000, MPa – 205 |
Psi – 30000, MPa – 205 |
Psi – 32000, MPa – 220 |
Psi – 30000, MPa – 205 |
| Elongation |
35% |
40% |
35% |
35% |
35% |
35% |
40% |
INOX 304 Anchor Rods Torque Chart
| Anchor Bolts Size |
4/40 |
4/48 |
5/40 |
5/44 |
7/32 |
7/40 |
8/32 |
8/36 |
10/24 |
10/32 |
1/4-20 |
1/4-28 |
5/16-18 |
5/16-24 |
3/8-16 |
| 18-8 Stainless Steel Anchor Bolts |
Torque in-lbs |
5.2 |
6.6 |
7.7 |
9.4 |
9.6 |
12.1 |
19.8 |
22 |
22.8 |
31.7 |
75.2 |
94 |
132 |
142 |
236 |
| 316 Stainless Steel Anchor Bolts |
Torque in-lbs |
5.5 |
6.9 |
8.1 |
9.8 |
10.1 |
12.7 |
20.7 |
23 |
23.8 |
33.1 |
78.8 |
99 |
138 |
147 |
247 |
| Anchor Bolts Size |
3/8-24 |
7/16-14 |
7/16-20 |
1/2-13 |
1/2-20 |
9/16-12 |
9/16-18 |
5/8-11 |
5/8-18 |
3/4-10 |
3/4-16 |
7/8-9 |
7/8-14 |
1-8 |
1-14 |
| 18-8 Stainless Steel Anchor Bolts |
Torque in-lbs |
259 |
376 |
400 |
43 |
45 |
56 |
62 |
92 |
103 |
127 |
124 |
194 |
193 |
286 |
259 |
| 316 Stainless Steel Anchor Bolts |
Torque in-lbs |
271 |
393 |
418 |
45 |
47 |
59 |
65 |
96 |
108 |
131 |
129 |
202 |
201 |
299 |
270 |
Types of Stainless Steel Anchor Bolt

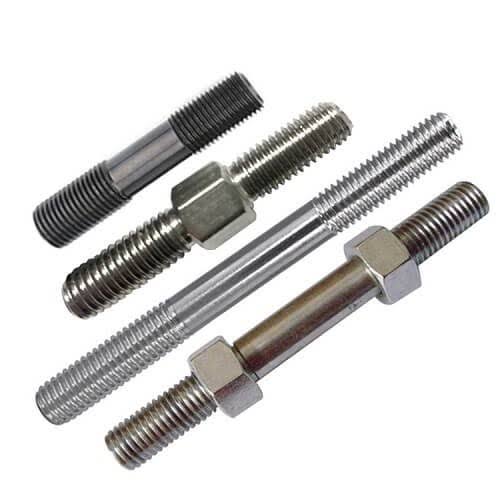

UNS S31600 Double End Rods with Plate
UNS S30403 Welded Anchor Bolts
SS Anchor Foundation Bolts Chemical Composition
Find Stainless Steel Anchor Bolt Manufacturer in India who provides Balanced Composition
| Grade |
304 |
304H |
304L |
310 Welded Anchor Bolts |
310S Stone Bolt |
316 Hex Head Anchor Bolt |
316L J Anchor Bolts |
SS 317 L Anchor Bolts |
| Si |
0.75 Max |
0.75 Max |
0.75 Max |
0.15 Max |
1.00 Max |
1.00 Max |
1.00 Max |
1.00 Max |
| Mn |
2.00 Max |
2.00 Max |
2.00 Max |
2.00 Max |
2.00 Max |
2.00 Max |
2.00 Max |
2.00 Max |
| P |
0.045 Max |
0.045 Max |
0.045 Max |
0.020 Max |
0.045 Max |
0.045 Max |
0.045 Max |
0.045 Max |
| Cr |
18.0–20.0 |
18.0–20.0 |
18.0–20.0 |
24.0–26.0 |
24.0–26.0 |
16.0–18.0 |
16.0–18.0 |
18.0–20.0 |
| S |
0.030 Max |
0.030 Max |
0.030 Max |
0.015 Max |
0.030 Max |
0.030 Max |
0.030 Max |
0.030 Max |
| Mo |
— |
— |
— |
0.10 |
0.75 |
2.00–3.00 |
2.00–3.00 |
3.00–4.00 |
| N |
0.10 |
— |
0.10 |
54.7 Min |
53.095 Min |
67.845 Min |
68.89 Min |
57.845 Min |
SS 316L Concrete Anchor Screws Interior Use
|
Material
|
Zinc
|
|
Options
|
Anchor – Interior
|
|
Ø (mm)
|
12
|
|
Drill Bit (mm)
|
12
|
|
L (mm)
|
120
|
Stainless Steel 304 Sleeve Anchor Bolt Exterior Use
|
Material
|
316
|
|
Options
|
Anchor – Exterior
|
|
L (mm)
|
120
|
|
Ø (mm)
|
12
|
|
Drill Bit (mm)
|
12
|
UNS S30400 Toggle Bolts Sizes
| Dia |
1/4″ x 5/8″ only |
1/4″ |
3/8″ |
5/16″ |
1/2″ |
3/4″ x 2-1/2″ only |
3/4″ |
5/8″ x 3″ or less |
5/8″ x 4-1/4″ or more |
| Min Embedment |
1/2″ |
1″ |
1-1/4″ |
1″ |
1-1/2″ |
2″ |
3-1/2″ |
2″ |
3-1/2″ |
| Bolt Diameter |
3/16″ |
|
5/16″ |
1/4″ |
3/8″ |
5/8″ |
|
1/2″ |
|
| Hole Size |
1/4″ |
|
3/8″ |
5/16″ |
1/2″ |
3/4″ |
|
5/8″ |
|
Capacity Table of SS Concrete Anchor Bolt
| Units (mm) |
Anchor Dia. (mm)_1 |
Anchor Dia. (mm) |
Edge Cover (mm) |
Embed. Depth (mm) |
Load Config. |
| Group 1 – 100% Tension Loading |
| 194 |
16, 19, 22 |
13, 16, 19, 22 |
300 |
108 |
D |
| 194 |
16, 19, 22 |
13, 16, 19, 22 |
300 |
108 |
D |
| 194 |
16, 19, 22 |
13, 16, 19, 22 |
300 |
108 |
D |
| Group 2 – 100% Shear Loading |
| 194 |
16, 19, 22 |
13, 16, 19, 22 |
300 |
108 |
E |
| Group 3 – 25% Tension Capacity, Shear Failure |
| 194 |
16, 19, 22 |
13, 16, 19, 22 |
300 |
108 |
25D/E |
| 295 |
22, 25 |
22, 25 |
300 |
203 |
25D/E |
| 295 |
22, 25 |
22, 25 |
300 |
203 |
25D/E |
| Group 4 – 50% Tension Capacity, Shear Failure |
| 194 |
16, 19, 22 |
13, 16, 19, 22 |
300 |
108 |
50D/E |
| 295 |
22, 25 |
22, 25 |
300 |
203 |
50D/E |
| Group 5 – 75% Tension Capacity, Shear Failure |
| 194 |
16, 19, 22 |
13, 16, 19, 22 |
300 |
108 |
75D/E |
| 295 |
22, 25 |
22, 25 |
300 |
203 |
75D/E |
| Group 6 – 50% Shear Tension Failure 50E/D |
| 194 |
13,16,19 |
13,16,19 |
300 |
108 |
50E/D |
| Group 7 – 100% Tension Loading; Large Anchors |
| 295 |
22, 25 |
22, 25 |
300 |
203 |
D |
| 295 |
22, 25 |
22, 25 |
300 |
203 |
D |
| Group 8 – 100% Shear Loading; Large Anchors |
| 295 |
22, 25 |
22, 25 |
300 |
203 |
E |
| Group 9 – Bar Anchors; 50% Tension Capacity, Shear
Failure |
| 194 |
16, 19, 22 |
13, 16, 19, 22 |
300 |
108 |
50D/E |
Get Anchor Bolt Material Delivery With MTC 3.1 Report in Following Countries
| Mexico |
Nigeria |
Poland |
Netherlands |
Singapore |
| Denmark |
Italy |
Germany |
Ireland |
Brazil |
| Spain |
Canada |
USA |
UK |
South Africa |
| Qatar |
UAE |
Australia |
Saudi Arabia |
Turkey |
